INSTALLATION (IN-DASH MOUNTING)

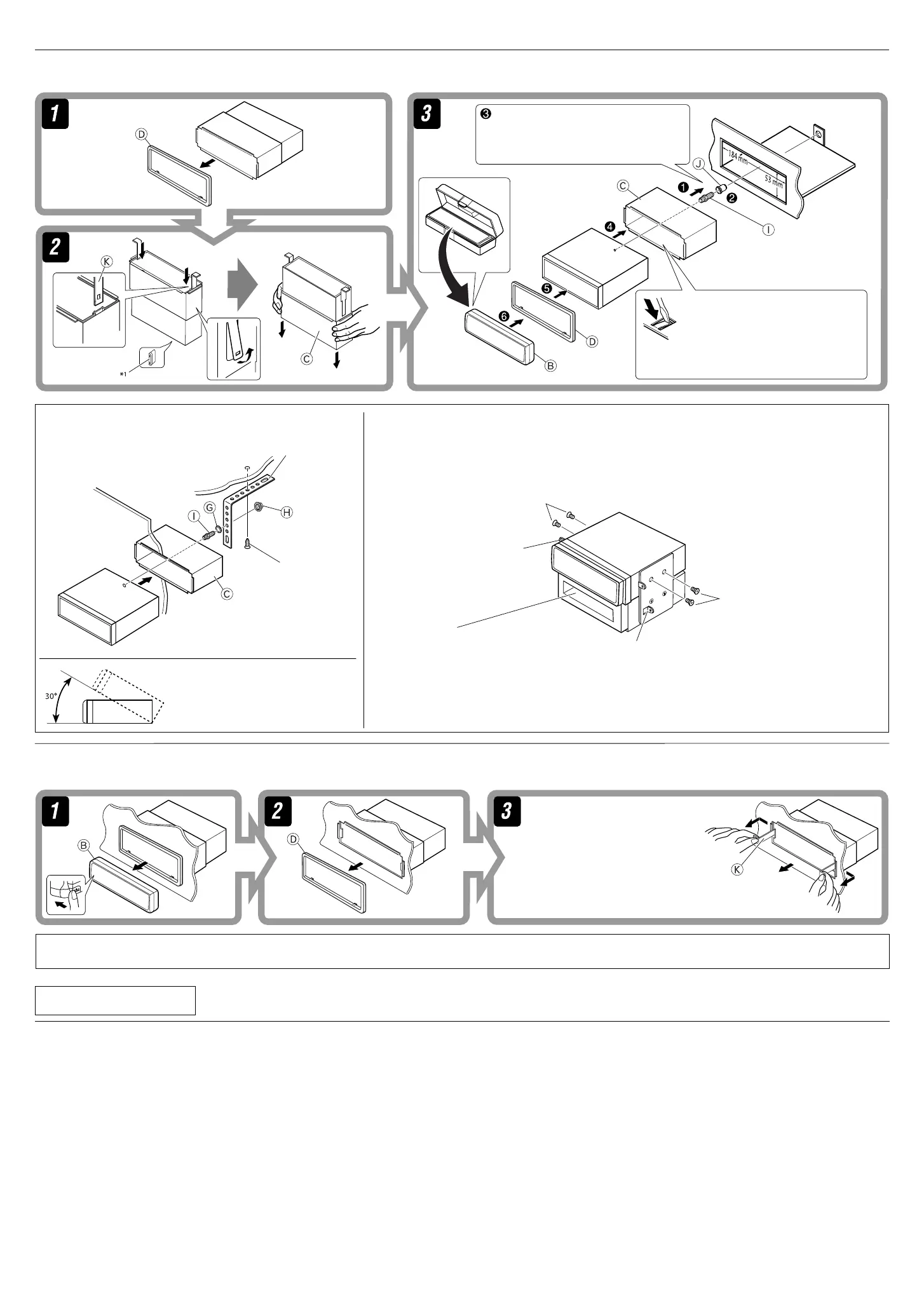

The following illustration shows a typical installation. If you have any questions or require information regarding installation kits, consult your JVC car audio dealer or a company supplying kits.
• If you are not sure how to install this unit correctly, have it installed by a qualified technician.
Removing the unit
Before removing the unit, release the rear section.
Do the required electrical connections.
Bend the appropriate tabs to hold the
sleeve firmly in place.
*
1
When you stand the unit, be careful not to damage the fuse on the rear.
*
2
Not supplied for this unit.
When installing the unit without using the sleeve
In a Toyota car for example, first remove the car radio and install the unit in its place.
When using the optional stay
Note : When installing the unit on the mounting bracket, make sure to use the 8 mm-long screws. If longer screws
are used, they could damage the unit.
Install the unit at an angle of less than 30˚.
TROUBLESHOOTING
• The fuse blows.
* Are the red and black leads connected correctly?
• Power cannot be turned on.
* Is the yellow lead connected?
• No sound from the speakers.
* Is the speaker output lead short-circuited?
• Sound is distorted.
* Is the speaker output lead grounded?
* Are the “–” terminals of L and R speakers grounded in common?
• Noise interfere with sounds.
* Is the rear ground terminal connected to the car’s chassis using shorter and thicker cords?
• This unit becomes hot.
* Is the speaker output lead grounded?
* Are the “–” terminals of L and R speakers grounded in common?
• This unit does not work at all.
* Have you reset your unit?
Screw (option)
Stay (option)
Fire wall
Dashboard
Bracket *
2
Flat head screws (M5 × 8 mm) *
2
Pocket
Flat head screws (M5 × 8 mm)
*
2
Bracket *
2
Insert the two handles, then
pull them as illustrated so
that the unit can be removed.
