3
B

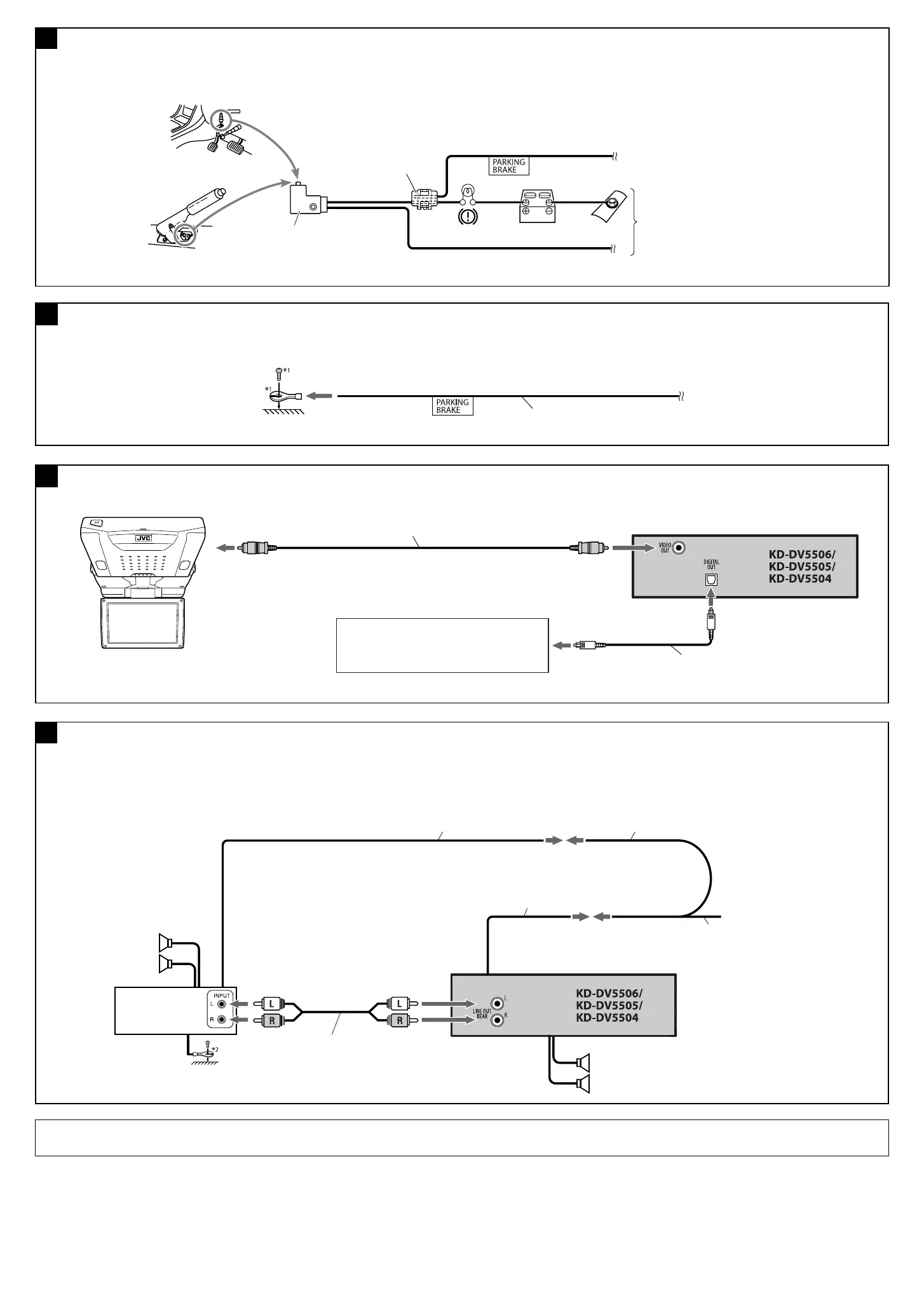

Connecting the parking brake wire (When installing the monitor in a location where it can be seen by the driver)
Connect the parking brake wire to the parking brake system built in the car.
Connect the parking brake wire to metallic body or chassis of the car.
Connecting the parking brake wire (When installing the monitor in a location where it cannot be seen by the driver)
C
D
Parking brake wire (light green)
To metallic body or chassis of the car
Parking brake switch (inside the car)
Parking brake
Parking brake wire (light green)
E
*
1
Not supplied for this unit.
*
2
Firmly attach the ground wire to the metallic body or to the chassis of the car—to the place uncoated with paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to the unit.
Connecting the external amplifier
You can connect an amplifier to upgrade your car stereo system.
• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it can be controlled through this unit.
• Disconnect the speakers from this unit, connect them to the amplifier. Leave the speaker leads of this unit unused.
Rear speakers
JVC Amplifier
Remote lead
Y-connector
*
1
Remote lead (blue with white stripe)
To the remote lead of other equipment or automatic antenna if any
Front speakers
Required connections for video playback
Audio/video control amplifier or the decoder compatible
with the multichannel digital sources
KV-MR9010
9-INCH WIDESCREEN MONITOR *
1
Digital optical cable *
1
(only for DVD playback)
Video cord
*
1
Signal cord *
1
Crimp connector *
1
Install2_KD-DV5506_008B_ff.indd 3Install2_KD-DV5506_008B_ff.indd 3 4/21/09 2:06:27 PM4/21/09 2:06:27 PM
