JVC KD-DV5605 Installation & Connection Manual

2
Light green
VIDEO OUT
(see diagram
)
A
B
C
(see “Connecting the parking brake wire” )
15 A fuse
Black
Blue (white stripe)
Red
Yellow
*
2
To metallic body or chassis of the car
Ignition switch
Fuse block
To an accessory terminal in the fuse block
To the remote lead of other equipment (200 mA max.)
To a live terminal in the fuse block connecting to the car battery
(bypassing the ignition switch) (constant 12 V)
LINE OUT (REAR)
(see diagram
)
Rear ground terminal
Reset the unit.
Front speaker (left) Front speaker (right) Rear speaker (left) Rear speaker (right)
PurplePurple (black stripe)GreenGreen (black stripe)GrayGray (black stripe)WhiteWhite (black stripe)

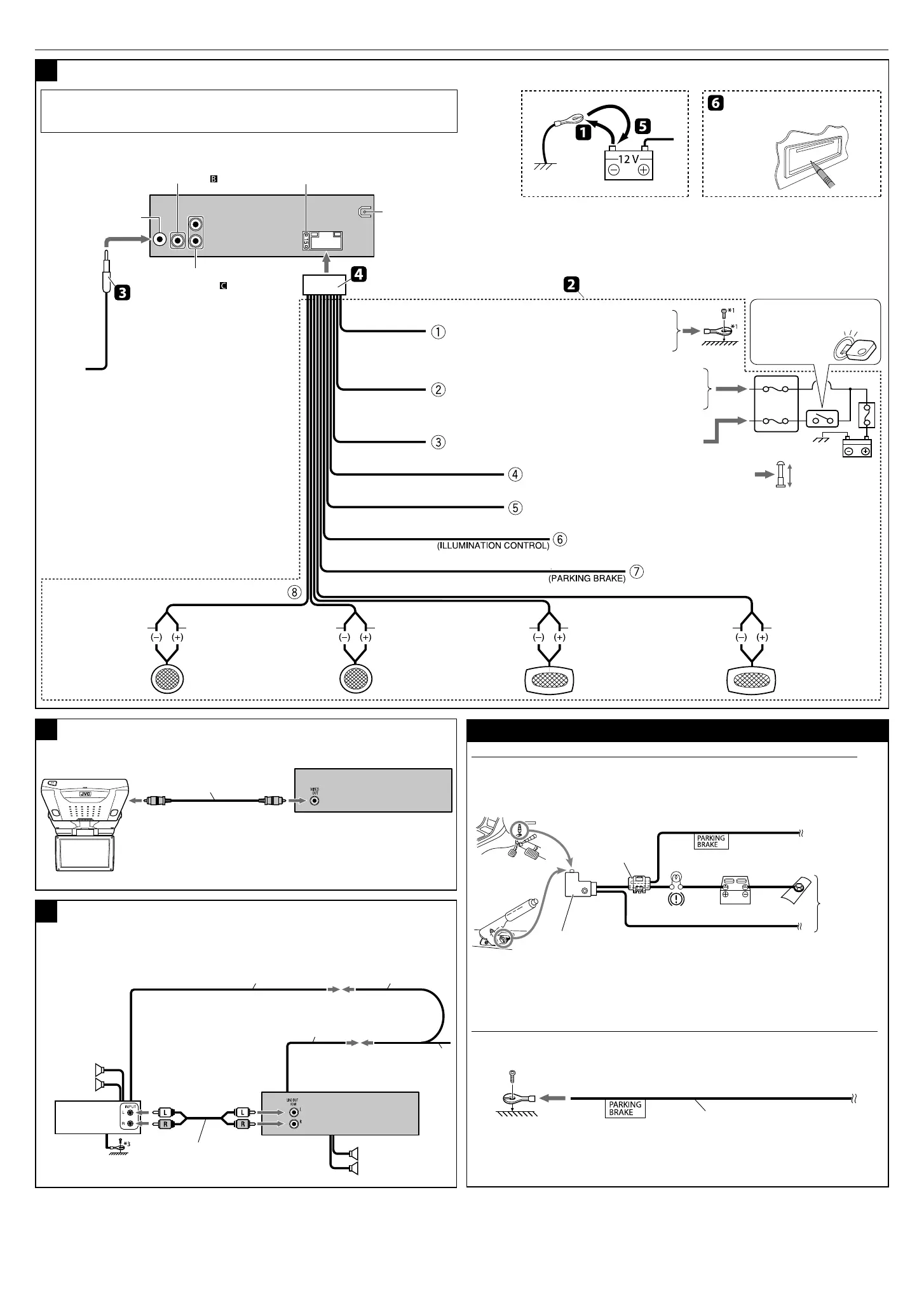

Typical connections
ELECTRICAL CONNECTIONS
Antenna terminal
To car light control switch
Orange (white stripe)
*
1
Not supplied for this unit.
*
2
Before checking the operation of this unit prior to installation, this lead must be connected, otherwise power cannot be turned on.
*
3
Firmly attach the ground wire to the metallic body or to the chassis of the car—to the place uncoated with paint.
To the automatic antenna if any (250 mA max.)
Blue
IMPORTANT: A custom wiring harness (separately purchased) which is suitable for your car is
recommended for connection between the unit and your car.
• Consult your JVC car audio dealer or a company supplying kits for details.
Required connections for video playback
Connecting the external amplifier
Rear speakers
JVC Amplifier
Remote lead
Y-connector
*
1
Remote lead (blue, white stripe)
To the remote lead of other equipment
or automatic antenna if any
Front speakers
Signal cord
*
1
KV-MR9010
9-INCH WIDESCREEN MONITOR *
1
Video cord *
1
Connecting the parking brake wire
(A) When installing the monitor in a location where it CAN be seen by the driver
Connect the parking brake wire to the parking brake system built in the car.
(B) When installing the monitor in a location where it CANNOT be seen by the driver
Connect the parking brake wire to metallic body or chassis of the car.
Disconnect the speakers from this unit, connect them to the amplifier. Leave the speaker leads of this
unit unused.
Parking brake wire
(light green)
To metallic body
or chassis of
the car
Parking brake switch
(inside the car)
Parking brake
Parking brake wire (light green)
Crimp connector
*
1
*
1
*
1
Install_KD-DV5606_004A_f.indd 2Install_KD-DV5606_004A_f.indd 2 1/29/10 9:33:40 AM1/29/10 9:33:40 AM
