JVC KD-G343 User Manual

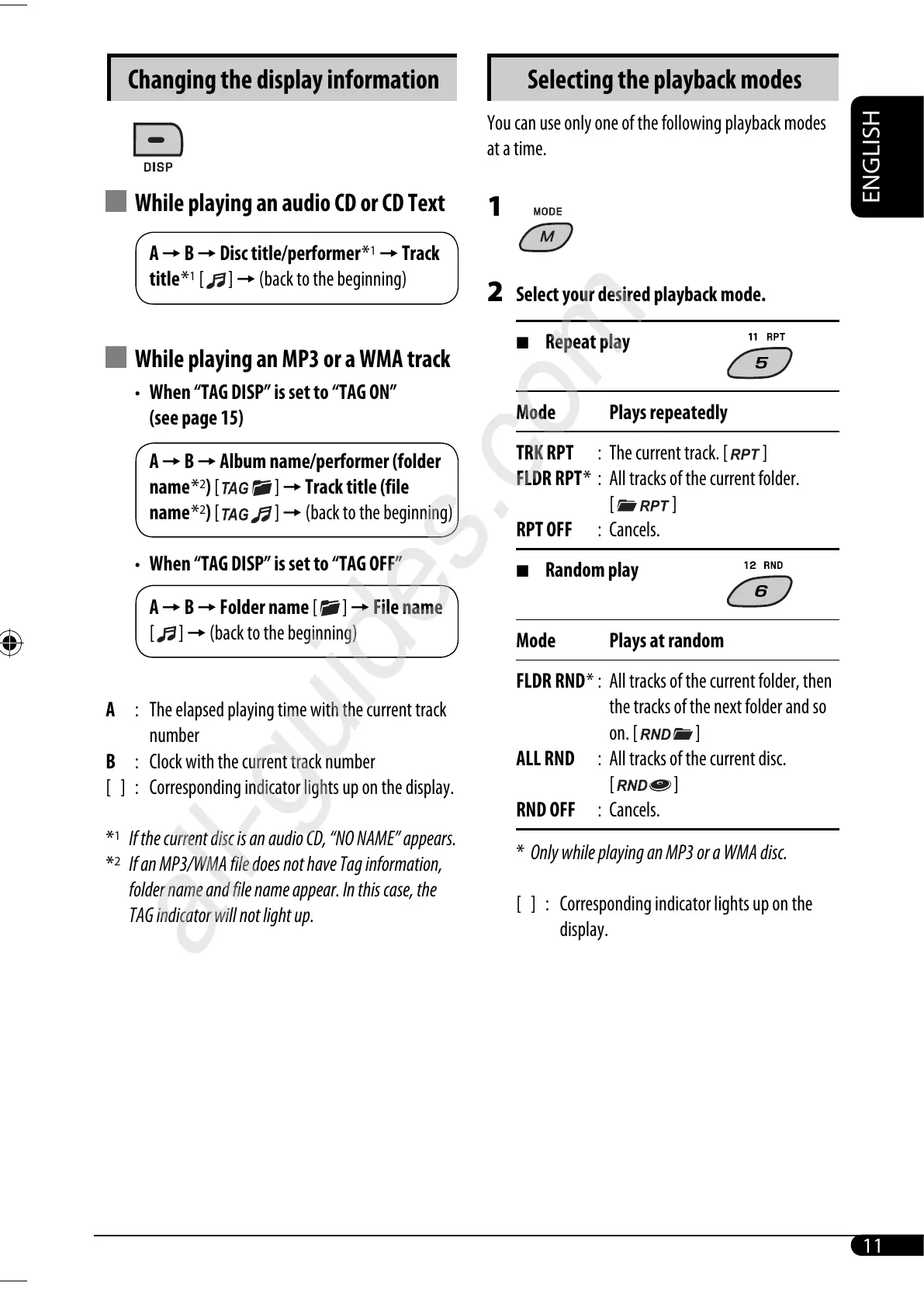

11
ENGLISH
Changing the display information
While playing an audio CD or CD Text
A = B = Disc title/performer *
1
= Track
title *
1
[ ] = (back to the beginning)
While playing an MP3 or a WMA track
• When “TAG DISP” is set to “TAG ON”
(see page 15)
A = B = Album name/performer (folder
name *
2
) [ ] = Track title (file
name *
2
) [ ] = (back to the beginning)
• When “TAG DISP” is set to “TAG OFF”
A = B = Folder name [ ] = File name
[ ] = (back to the beginning)
A : The elapsed playing time with the current track
number
B : Clock with the current track number
[ ] : Corresponding indicator lights up on the display.
*
1
If the current disc is an audio CD, “NO NAME” appears.
*
2
If an MP3/WMA file does not have Tag information,
folder name and file name appear. In this case, the
TAG indicator will not light up.
Selecting the playback modes
You can use only one of the following playback modes
at a time.
1
2 Select your desired playback mode.
7 Repeat play
Mode Plays repeatedly
TRK RPT : The current track. [
]
FLDR RPT * : All tracks of the current folder.
[ ]
RPT OFF : Cancels.
7 Random play
Mode Plays at random
FLDR RND * : All tracks of the current folder, then
the tracks of the next folder and so
on. [
]
ALL RND : All tracks of the current disc.
[ ]
RND OFF : Cancels.
* Only while playing an MP3 or a WMA disc.
[ ] : Corresponding indicator lights up on the
display.
EN06-13_KD-G343_003A_2.indd 11EN06-13_KD-G343_003A_2.indd 11 8/17/07 10:25:36 AM8/17/07 10:25:36 AM
All manuals and user guides at all-guides.com
all-guides.com

JVC KD-G343 Specifications

General

MP3 playback	Yes
AM band range	522 - 1620 kHz
FM band range	87.5 - 108 MHz
Preset stations quantity	24
Output power	200 W
Ready for iPod	No
Audio output channels	4.0 channels
Maximum power per channel	50 W
Display type	LCD
I/O ports	1 x RCA 1 x Aux-in

Weight and Dimensions

Dimensions (WxDxH)	182 x 159.5 x 52 mm
