Connection/Installation
48
PRK SW
STEERING
WHEEL
REMOTE
INPUT
2 4 6 8
1 3 5 7
2 4 6 8
1 3 5 7
REVERSE
SUB
WOOFER
1 2 3 4
5V
=
1.5A
ST REMOTE
INPUT 1
ST REMOTE
INPUT 2
ST REMOTE
GND
Connect to the vehicle’s
parking brake detection
switch harness.
For best safety, be sure
to connect the parking
sensor.
Light Green (Parking sensor wire)
Accessory 3: Parking Extention cable
Purple/White (Reverse sensor wire)
To steering remote
To use the steering wheel remote control feature,
you need an exclusive remote adapter (not
supplied) matched to your car.
Connect to vehicle’s
reverse lamp harness
when using the
optional rear view
camera.
Light Blue/Yellow (Steering remote control wire)
Fuse (15A)

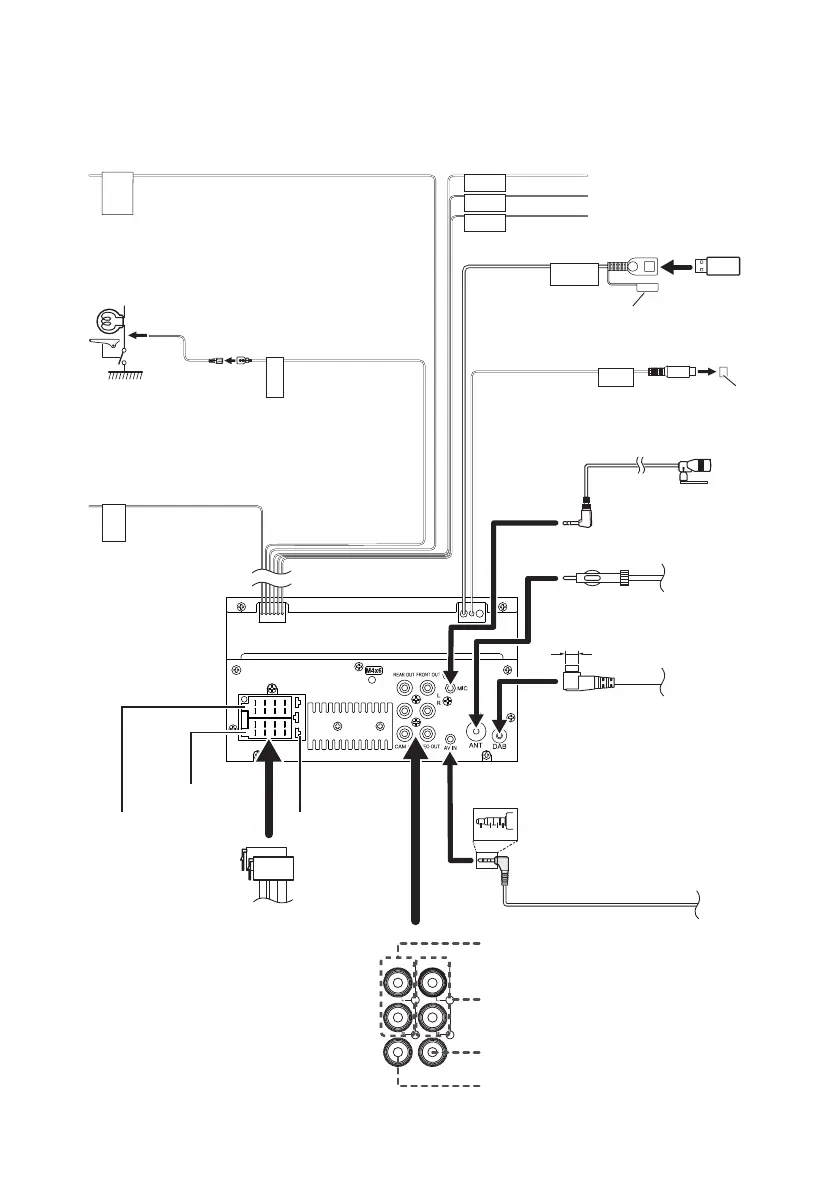

Ñ Connecting wires to terminals
Subwoofer Preout
Cap
Cap
FM/AM antenna
Connector A
Connector B
USB device
[2]
USB terminal
[1]
(1.0 m)
[1]
USB maximum power supply current :
DC 5 V = 1.5 A
[2]
Sold separately
ISO Connector
FRONT OUTREAR OUT
VIDEO OUTCAM IN
Rear Audio Preout
(Left; White, Right; Red)
Front Audio Preout
(Left; White, Right; Red)
Visual Output (Yellow)
Rear view camera input (Yellow)
AV-IN
[2]
(1; Left audio, 2; Composite
video, 3; Ground, 4; Right audio).
Accessory 1:
Bluetooth Microphone
Bright Green/Red
Purple/Red
Gray/Red
Connect to vehicle’s steering remote harness.
Contact your JVC dealer for details.
Φ 6.5 mm (maximum)
DAB antenna jack (SMB connector)
# CAUTION
When using a commercially available
DAB antenna, the diameter of the SMB
connector must be Φ 6.5 mm or less.
