JVC KW-V330BT User Manual

36
TUNER TUNER

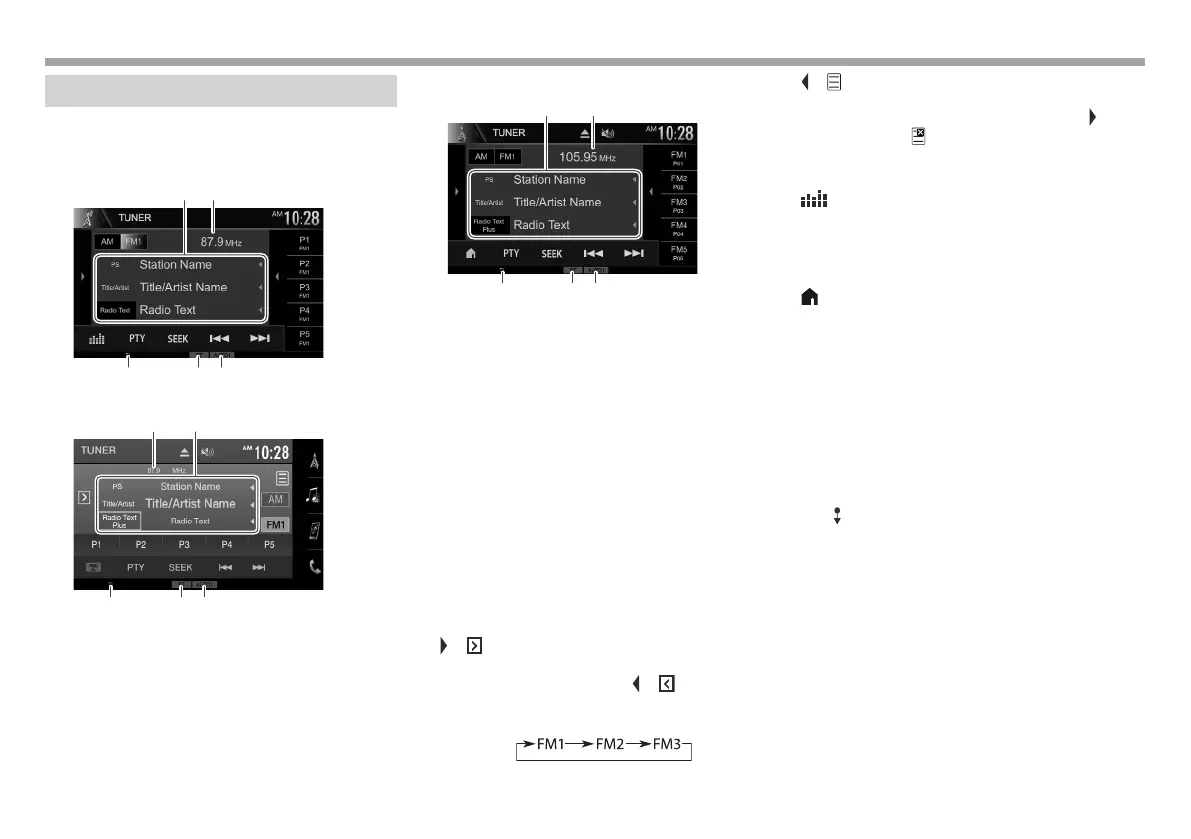

Listening to the radio
❏ Playback information on the source
control screen
KW-V230BT
2
345
1
KW-V330BT
1
435
2
KW-V430BT/KW-V630BT
2
345
1
1 Text information
• Pressing [H] scrolls the text if not all of the text
is shown.
• Pressing [Radio Text] switches the information
between Radio Text, Radio Text Plus, and PTY
code.
2 The station frequency currently tuned in
3 TI indicator
4 ST/MONO indicator
• The ST indicator lights up when receiving an
FM stereo broadcast with sufficient signal
strength.
5 Seek mode indicator
❏ Operation buttons on the source
control screen
• To display all available operation buttons, press
[ ]/[ ]*
1
.All the other available buttons are
shown.
– To hide the window, press [ ]/[ ] *
1
.
[AM] Selects the AM band.
[FM] Selects the FM band.
[ ]/[ ]*
1
Displays the preset station window.
(Page37)
• To hide the window, press [ ]/
[ ] *
1
.
[P1] – [P5] • Selects a stored station. (Press)
• Stores the current station. (Hold)
[
]*
2
Displays the <Equalizer> screen.
(Page62)
[FNC J]*
3
Displays the pop-up short-cut menu.
(Page12)
• To close the menu, press [K].
[
]*
4
Displays the Home screen.
[PTY]*
5
Enters PTY search mode. (Page38)
[SEEK] Changes the seek mode.
• AUTO1: Auto Search
• AUTO2: Tunes in stations in the
memory one after another.
• MANU: Manual Search
[S] [T]
Searches for a station.
• The search method differs
according to the selected seek
mode. (See above.)
[SSM
]*
5
Presets stations automatically. (Hold)
(Page37)
[MONO]*
5
Activates/deactivates monaural mode
for better FM reception. (Stereo effect
will be lost.)
• The MONO indicator lights up while
monaural mode is activated.
[TI]*
5
Activates/deactivates TI standby
reception mode. (Page38)
*
1
The appearance of the buttons differs depending on the model.
*
2
Appears only for KW-V230BT.
*
3
Appears only for KW-V330BT.
*
4
Appears only for KW-V430BT/KW-V630BT.
*
5
Appears only when FM is selected as the source.
2017KW-VEntryK.indb362017KW-VEntryK.indb36 2016/12/0915:112016/12/0915:11

JVC KW-V330BT Specifications

General

DIN size	2 DIN
Equalizer	Yes
Product color	Black
Disc types supported	CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	13
Maximum power per channel	50 W
Display diagonal	6.8 \
Audio system	MOSFET
Audio formats supported	FLAC, MP3, WAV, WMA
Image formats supported	JPG
Video formats supported	DIVX, MPEG1, MPEG2
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, AVRCP, HFP, PBAP
FM band range	87.5 - 108 MHz
LW band range	153 - 279 kHz
Supported radio bands	FM, LW, MW
Preset stations quantity	20
Package weight	3100 g
Key illumination color	Multi

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	182 x 160 x 111 mm
