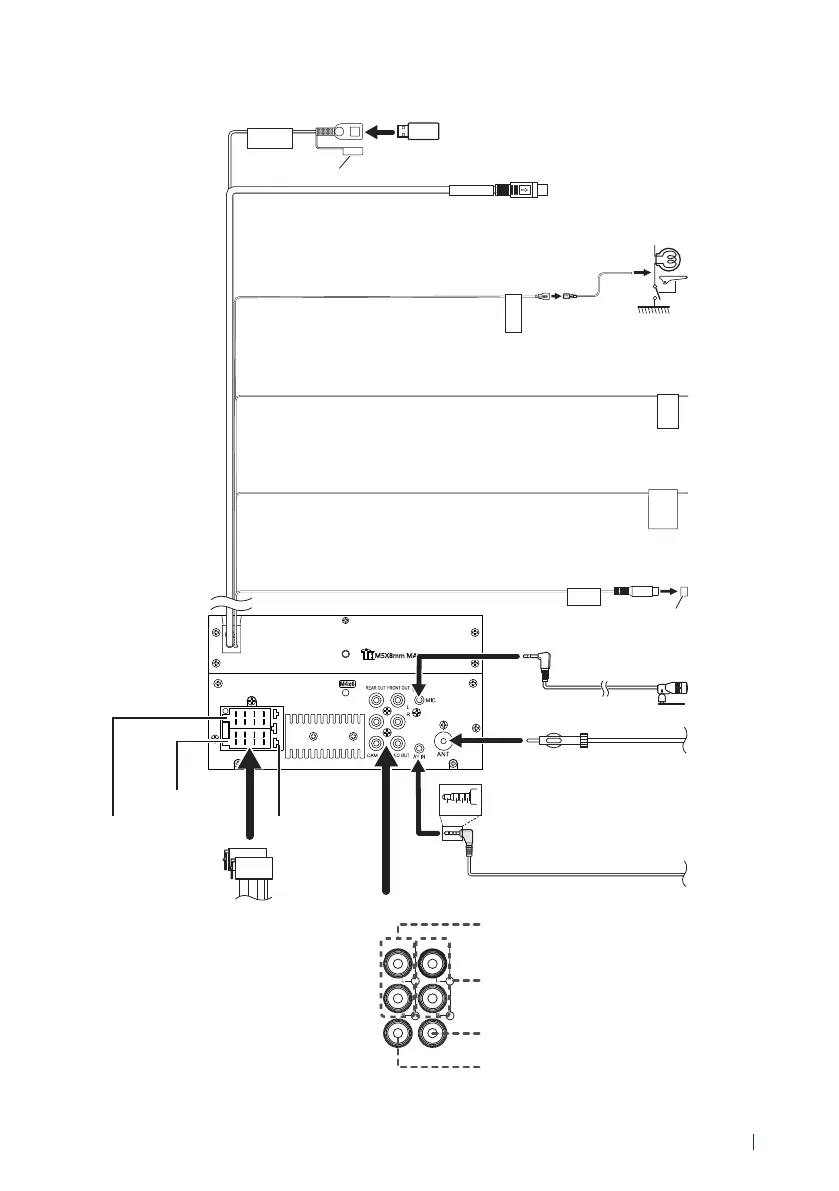

Connection/Installation
57English
PRK SW
STEERING
WHEEL
REMOTE
INPUT
2 4 6 8
1 3 5 7
2 4 6 8
1 3 5 7
REVERSE
SUB
WOOFER
1 2 3 4
5V
=
1.5A
Sirius XM
Connect to the vehicle’s parking brake
detection switch harness.
For best safety, be sure to connect the
parking sensor.
Light Green (Parking sensor wire)
Accessory 3: Parking Extention cable
Purple/White (Reverse sensor wire)
For more information on how to install the SiriusXM Connect Vehicle tuner, consult the
installation guide included with the tuner.
To steering remote
To use the steering wheel remote control feature, you need an
exclusive remote adapter (not supplied) matched to your car.
Connect to vehicle’s reverse lamp harness when using the optional rear
view camera.
Light Blue/Yellow (Steering remote control wire)
Fuse (15A)
Ñ Connecting wires to terminals
Subwoofer Preout
Cap
Cap
FM/AM antenna
Connector A
Connector B
USB device
[2]
USB terminal
[1]
(1.0 m)
[1]
USB maximum power supply current :
DC 5 V = 1.5 A
[2]
Sold separately
Accessory 7
Accessory 8
FRONT OUTREAR OUT
VIDEO OUTCAM IN
Rear Audio Preout
(Left; White, Right; Red)
Front Audio Preout
(Left; White, Right; Red)
Visual Output (Yellow)
Rear view camera input (Yellow)
SiriusXM Connect Vehicle Tuner connector
AV-IN
[2]
(1; Left audio, 2; Composite video,
3; Ground, 4; Right audio).
Accessory 1:
Bluetooth Microphone
