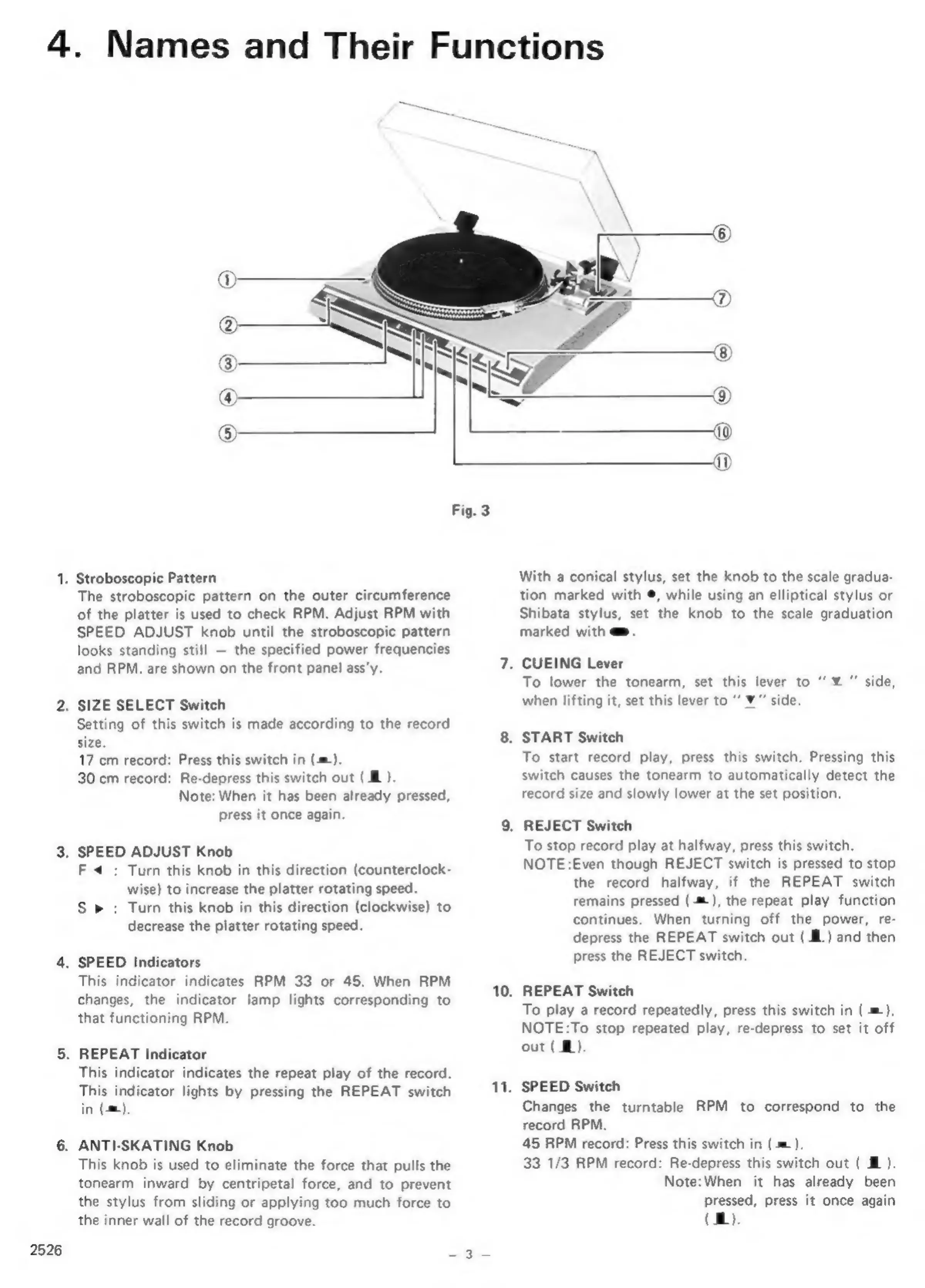

Names
and
Their
Functions
Fig. 3
. Stroboscopic Pattern
The stroboscopic pattern on the outer circumference
of the platter is used to check RPM. Adjust RPM with
SPEED ADJUST knob until the stroboscopic pattern
looks
standing
still
—
the
specified
power
frequencies
and RPM. are shown on the front panel ass’y.
. SIZE SELECT Switch
Setting of this switch is made according to the record
size.
17 cm record: Press this switch in (=).
30cm
record:
Re-depress
this
switch
out
(Mf
).
Note: When it has been already pressed,
press it once again.
. SPEED ADJUST Knob
F<: Turn this knob in this direction (counterclock-
wise) to increase the platter rotating speed.
S » : Turn this knob in this direction (clockwise) to
decrease the platter rotating speed.
. SPEED Indicators
This indicator indicates RPM 33 or 45. When RPM
changes, the indicator lamp lights corresponding to
that functioning RPM.
. REPEAT Indicator
This indicator indicates the repeat play of the record.
This indicator lights by pressing the REPEAT switch
in (m).
. ANTI-SKATING Knob
This knob is used to eliminate the force that pulls the
tonearm inward by centripetal force, and to prevent
the stylus from sliding or applying too much force to
the inner wall of the record groove.
10.
11.
With a conical stylus, set the knob to the scale gradua-
tion marked with ®@, while using an elliptical stylus or
Shibata stylus, set the knob to the scale graduation
marked with @@.
. CUEING Lever
To lower the tonearm, set this lever to “¥ " side,
when lifting it, set this lever to’ ¥” side.
. START Switch
To start record play, press this switch. Pressing this
switch causes the tonearm to automatically detect the
record size and slowly lower at the set position.
. REJECT Switch
To stop record play at halfway, press this switch.
NOTE:Even though REJECT switch is pressed to stop
the
record
halfway,
if
the
REPEAT
switch
remains pressed (=), the repeat play function
continues. When turning off the power, re-
depress the REPEAT switch out (M.) and then
press the REJECT switch.
REPEAT Switch
To play a record repeatedly, press this switch in (m=).
NOTE:To stop repeated play, re-depress to set it off
out ( M).
SPEED Switch
Changes the turntable RPM to correspond to the
record RPM.
45
RPM
record:
Press
this
switch
in
(=).
33 1/3 RPM record: Re-depress this switch out ( EL ).
Note:When it has already been
pressed, press it once again
(Bl).
