REPARATION

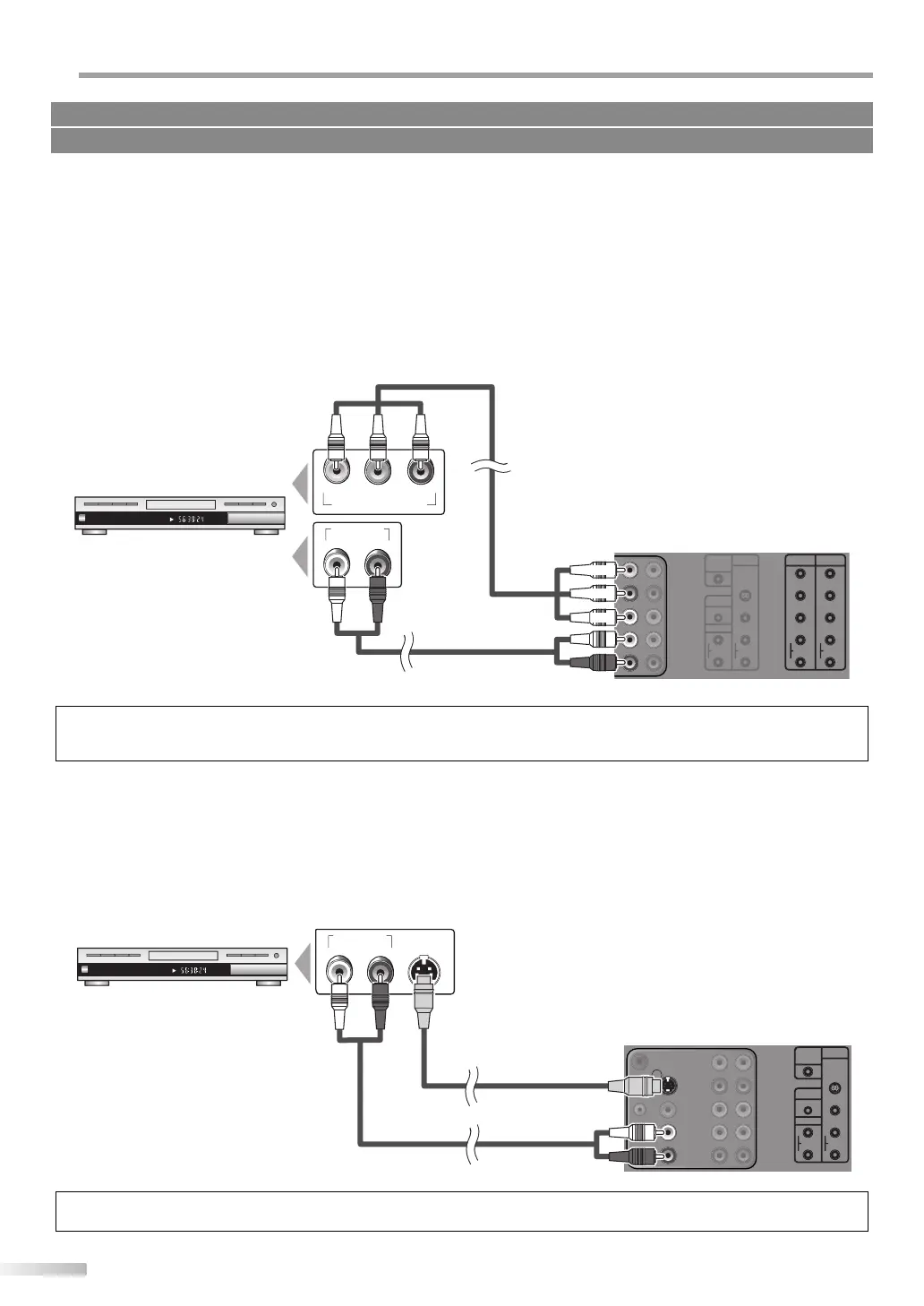

[Component Video Connection]
RCA component video connection offers better picture quality for video devices connected to the unit.
Use an RCA component video cable to connect the unit to external video devices equipped with component video
output jack.
If you connect to the unit’s COMPONENT1 or COMPONENT2 video input jack, connect an RCA audio cable to the audio
L/R jack of COMPONENT1 or COMPONENT2 accordingly.
e.g.)
COMPONENT 1 COMPONENT 2
V
IDE
O
1
S
-VIDE
O
VIDE
O
Y
Pb
Pr
Y
Pb
Pr
A
UDI
O
R
L
AUDI
O
R
L
AUDIO
R
L
AUDIO
R
L
D
I
G
ITAL
A
U
DI
O
OUT
(CO
AXIAL
)
A
U
DI
O
HDMI
-
IN
PC
-I
N
COMPONENT VIDEO OUT
Pr/CrPb/CbY
AUDIO OUT
RL
CHAPTER 15
REPEAT A-B
TITLE 5
BD / DVD player with
the component video output jack
RCA component video cable
RCA audio cable
rear of this unit
(red)(blue)(green)
green
blue
red
Note:
• This unit accepts 480i / 480p / 720p / 1080i video signals.
• When the noise appears on the TV screen, disconnecting the VGA cable may reduce it.
[S-video Connection]
S-video connection offers good picture quality for video devices connected to the unit.
Use an S-video cable to connect the unit to external video devices equipped with S-video output jack.
If you connect to the unit’s VIDEO1 S-video or VIDEO2 S-video input jack, connect an RCA audio cable to the audio L/R
jack of VIDEO1 or VIDEO2 accordingly.
e.g.)
CHAPTER 15
REPEAT A-B
TITLE 5
AUDIO OUT
RL
S-VIDEO
OUT
VIDEO 1
S-VIDEO
VIDEO
AUDIO
R
L
AUDIO
R
L
DIGITAL
AUDIO OUT
(COAXIAL)
AUDIO
HDMI-IN
PC-IN
BD / DVD player with
the component video output jack
S-video cable
RCA audio cable
rear of this unit
Note:
• If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority.
Cables not included.
Please purchase the necessary cables at your local store.
