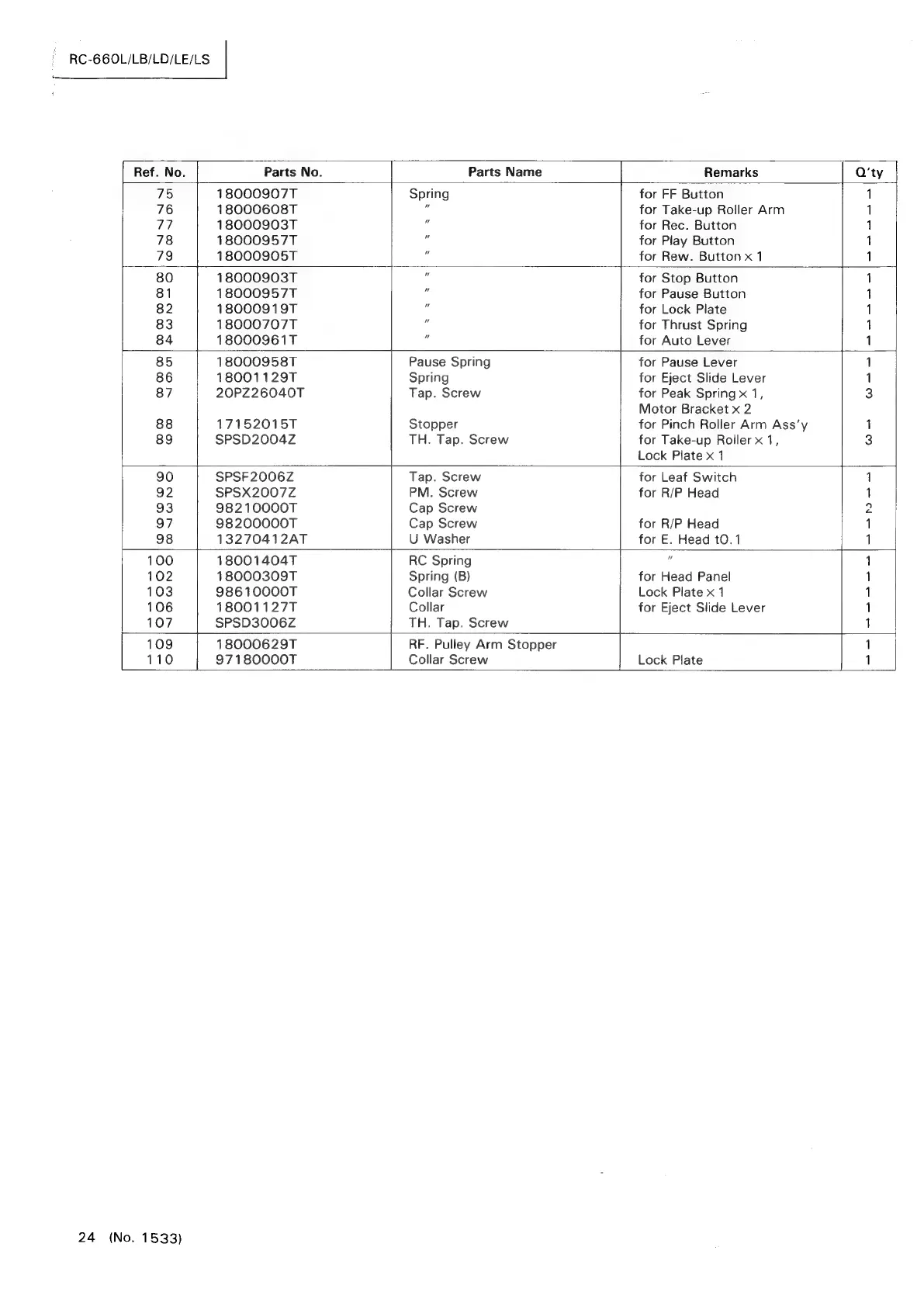

* RC-660L/LB/LD/LE/LS
Ref. No Parts No. Parts Name Remarks Q'ty
75 18000907T Spring for FF Button 1
76 18000608T . for Take-up Roller Arm 1
77 18000903T fs for Rec. Button 1
78 18000957T i for Play Button 1
79 18000905T u for Rew. Button x 1 1
80 18000903T ; for Stop Button 1
81 18000957T ” for Pause Button 1
82 18000919T 7 for Lock Plate 1
83 18000707T . for Thrust Spring 1
84 18000961T . for Auto Lever 1
85 18000958T Pause Spring for Pause Lever 1
86 18001129T Spring for Eject Slide Lever 1
87 20PZ26040T Tap. Screw for Peak Spring x 1, 3
Motor Bracket x 2
88 17152015T Stopper for Pinch Roller Arm Ass‘y 1
89 SPSD2004Z TH. Tap. Screw for Take-up Roller x 1, 3
Lock Plate x 1
90 SPSF2006Z Tap. Screw for Leaf Switch 1
92 SPSX2007Z PM. Screw for R/P Head 1
93 98210000T Cap Screw 2
97 98200000T Cap Screw for R/P Head 1
98 13270412AT U Washer for E. Head tO.1 1
100 18001404T RC Spring " 1
102 18000309T Spring (B) for Head Panel 1
103 98610000T Collar Screw Lock Plate x 1 1
106 18001127T Collar for Eject Slide Lever 1
107 SPSD3006Z TH. Tap. Screw 1
109 18000629T RF. Pulley Arm Stopper 1
110 97180000T Collar Screw Lock Plate 1
24 (No. 1533)
