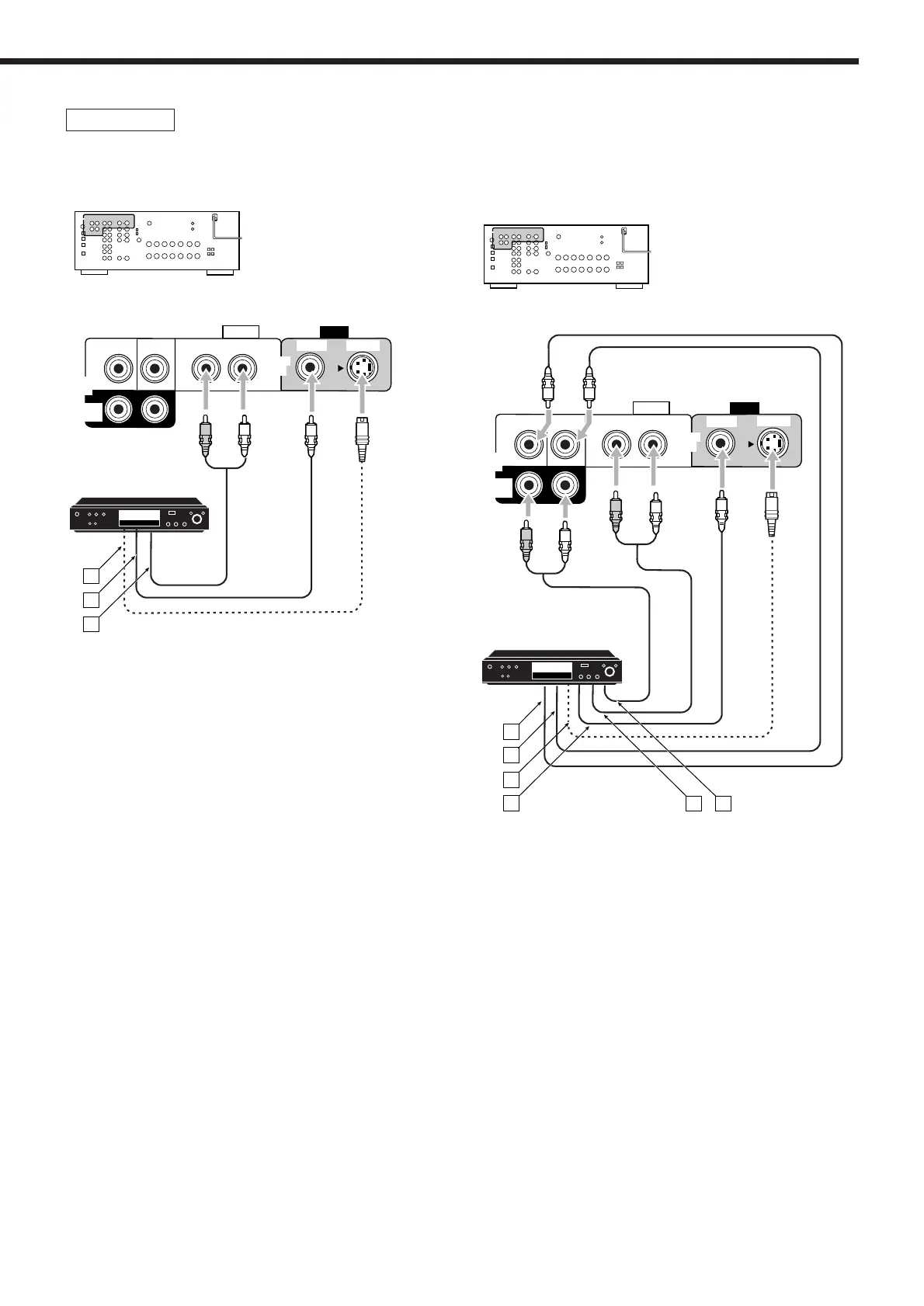

• When you connect a DVD player with its analog discrete
output (5.1-channel reproduction) jacks:
To listen to the sound after connection, press DVD MULTI.
Å To subwoofer output
ı To center channel audio output
Ç To S-video output
Î To composite video output
‰ To left/right front channel audio output
Ï To left/right surround channel audio output
DVD player
• When you connect a DVD player with stereo output jacks:
To listen to the sound after connection, press DVD.
Å To S-video output
ı To composite video output
Ç To left/right front channel audio output (or to audio-
mixed output if necessary)
DVD player
DVD player
DVD
VIDEO
RIGHT LEFT
S-VIDEO
VIDEO
AUDIO
SUBWOOFER CENTER
DVD
IN
FRONT
DVD
IN
SURR
(REAR)
R
L
A
B
C
DVD
VIDEO
RIGHT LEFT
S-VIDEO
VIDEO
AUDIO
SUBWOOFER CENTER
DVD
IN
FRONT
DVD
IN
SURR
(REAR)
R
L
R
L
A
B
C
D
E F
