9
English
Y
C
B
C
R
MINMIN
MIN
MIN
CONPONENT OUT
Y
C
B
C
R
TV
A
B
C
CONPONENT OUT
Y
C
B
C
R
Note:
Keep the power cord away from the connecting cords and the antenna
cables. The power cord may cause noise or screen interference.
Now, you can plug the power cord of the center unit into the AC outlet.
A
B
C
S-video cord (not supplied)
Video cord (supplied) Component video cord (not supplied)

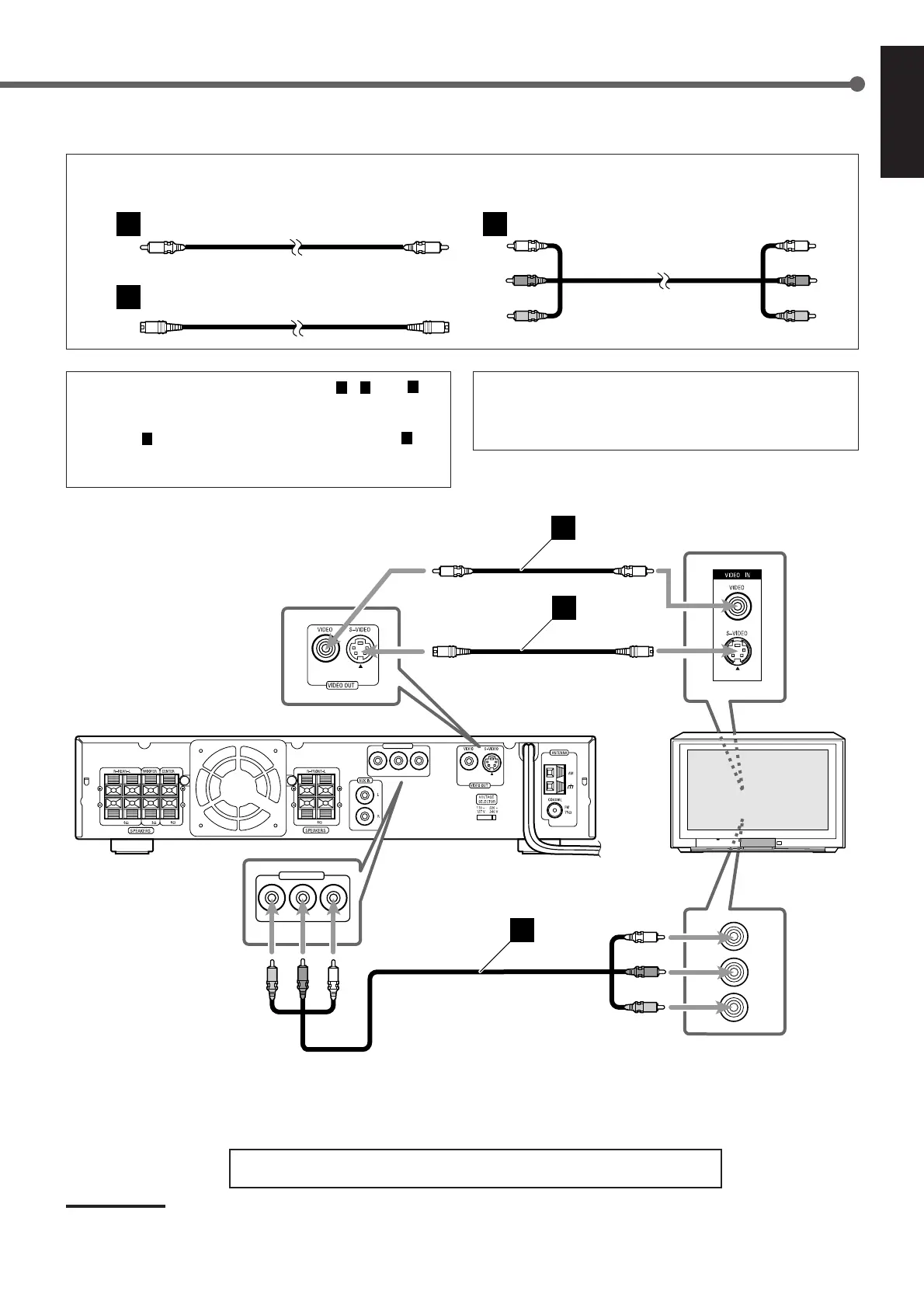

TV connection
The S-video cord and the component video cord are not supplied with this system.
Use the cords supplied with the other component or purchase them at an electric appliance store.
You can select one of three connection types—
A
,
B
, and
C
.
• If your TV has S-video (Y/C-separation) and/or component video
(Y, C
R
, C
B
) jacks, connect them using an S-video cord (not
supplied)
B
and/or component video cord (not supplied)
C
.
By using these jacks, you can get a better picture quality—in the
order : Component video > S-video > Composite video.
Illustrations below are typical examples.
When you connect the TV, refer also to its manual since the
terminal names actually printed on the rear vary among the
components.
EN01-09TH-A5[U]f.pm6 01.11.27, 10:279
To Next Page
