JVC TH-A55 Service Manual

(No.MB108)1-7
SECTION 3
DISASSEMBLY
3.1 Main body section
3.1.1 Removing the top panel
(See Fig.1)
(1) From the top side of the main body, remove the four screws
A attaching the top panel.
(2) Remove the top panel from main body.

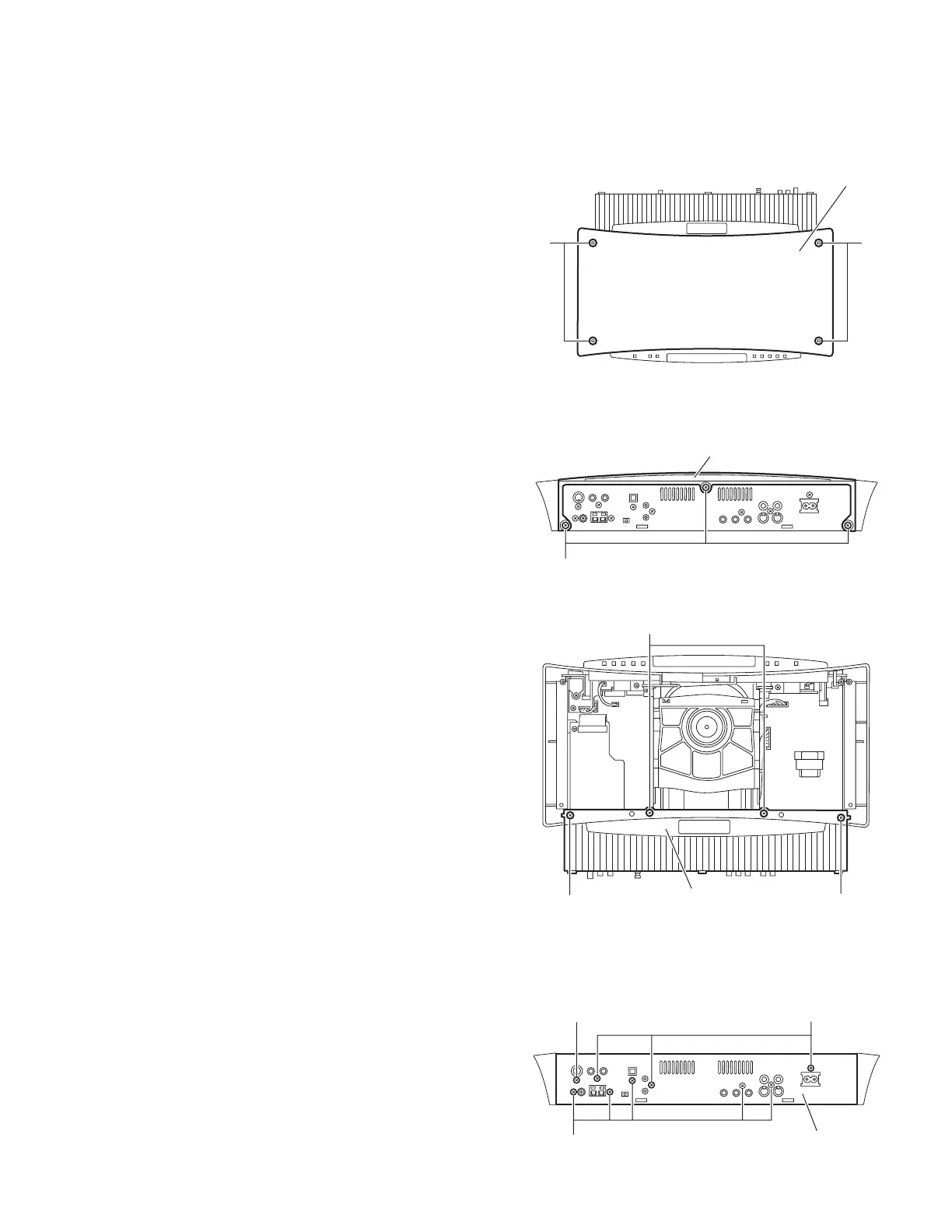

Fig.1
3.1.2 Removing the rear cover
(See Figs.2 and 3)
• Prior to performing the following procedures, remove the top
panel.
(1) From the rear side of the main body, remove the three
screws B attaching the rear cover. (See Fig.2)
(2) From the top side of the main body, remove the two screws
C and two screws D attaching the rear cover. (See Fig.3)
(3) Remove the rear cover upward.
Fig.2
Fig.3
3.1.3 Removing the rear panel
(See Fig.4)
• Prior to performing the following procedures, remove the top
panel and rear cover.
(1) From the rear side of the main body, remove the eight
screws E and screw F attaching the rear panel.
(2) Remove the rear panel from main body.
Fig.4
AA
Top panel
B
Rear cover
C
C
D
Rear cover
E
FE
Rear panel
