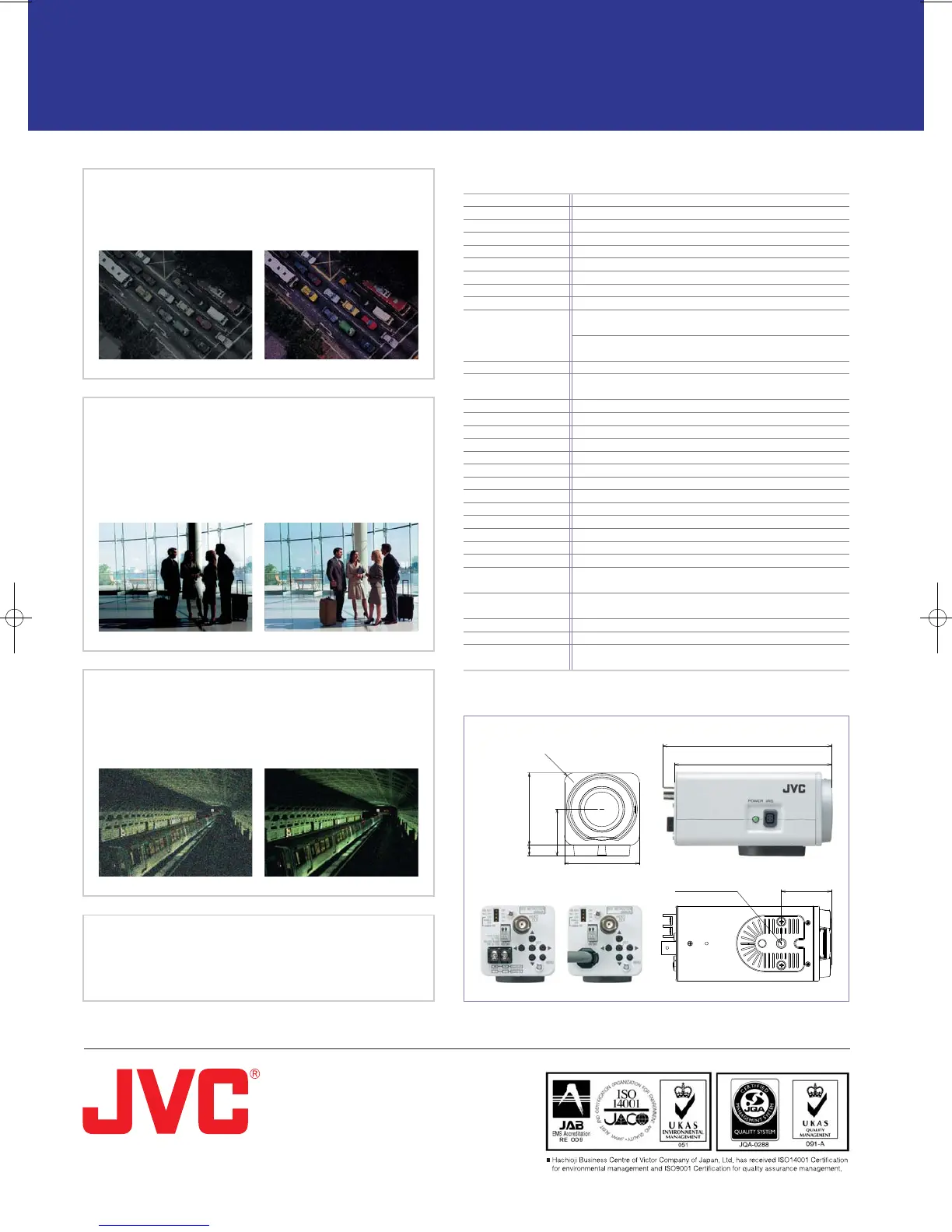

Specifications
This camera has been designed to assure precise colour
reproduction in low light situations. It is possible to identify
image colours in much darker places.
Printed in Japan
KCN-1855C TK-C9300E/C9301EG 2010/11
“JVC” is the trademark or registered trademark of Victor Company of Japan, Limited.
Design and specifications subject to change without notice.
Note: Screen images are explanatory purpose and not actual images attained using this product.
All brand or product names may be trademarks and/or registered trademarks of their respective owners.
Copyright © 2010, Victor Company of Japan, Limited. All Rights Reserved.
DISTRIBUTED BY
36.81/4 20 UNC
MOUNTING HOLE
114.3
126
55
7. 8
53
34.3
4-R7
Unit: mm
TK-C9300E TK-C9301EG
Reliable Day & Night Surveillance with High-Resolution Images
and Precise Colour Reproduction
TK-C9300E/TK-C9301EG
Signal system PAL
Image device 1/3 type IT CCD
Number of effective pixels 440,000 (752H x 582V)
Sync system Internal
Scanning system 2:1 interlace, 625 lines
Scanning frequency 15.625kHz (H), 50Hz (V)
Video output Composite video signal: 1.0V (p-p), 75 ohms (BNC)
Video S/N ratio 52 dB (AGC off)
Horizontal resolution 600 TV lines*
Minimum illumination (typical) 0.05 lx (50%, F1.2, AGC HIGH)
0.025 lx (25%, F1.2, AGC HIGH)
B&W mode 0.006 lx (50%, F1.2, AGC HIGH)
0.003 lx (25%, F1.2, AGC HIGH)
Iris control DC iris
White balance ATW
(wide/narrow)
/ AWC / Manual
(ATW colour temp. range 2300K to 10,000K)
Day/Night True D/N with IR cutoff filter
Wide dynamic range function ExDR Plus (by dual shutter)
3DNR NORMAL / HIGH
Display mode (Monitor type) LCD1/LCD2/CRT
BLC off/on (4 patterns)
AGC OFF/MID/HIGH
Sens-up off / x2 to x128
Digital zoom x1, x1.4, x2
Motion detect off/on
Privacy mask 4 areas
Focus adjustment mode Yes
Lens mount CS
AUX (Alarm terminal) 1
Power supply TK-C9300E: 24VAC
(50Hz/60Hz)
/ 12VDC
TK-C9301EG: 220-240VAC
(50Hz/60Hz)
Power consumption TK-C9300E: 220 mA
TK-C9301EG: 40 mA
Operating temperature range -10°C to 50°C (0°C to 40°C recommended)
Dimensions (WxHxD) 55mm x 61mm x 126mm
Weight
(approx.)
TK-C9300E: 270g
TK-C9301EG: 470g
■ Super LoLux
TM
“COLOUR IN VIRTUAL ZERO LUX”
Dimensions
Normal camera JVC Super LoLux
TM
ExDR (Extended Dynamic Range) Plus function is able to
clearly display people and characters in the foreground even
when they’re up against an extremely brightly lit background.
And to make the dark parts of the image more clearly visible,
It combines Dual Shutter with AGC function to achieve
optimal image quality throughout the entire picture.
■ ExDR Plus
Normal image ExDR Plus
3DNR is the powerful method to improve image quality even
though it’s shot in the dark. Noise data is detected by
comparing some continuous frames and reduced by blending
it into other frames over time.
■ 3D Noise Reduction (3DNR)
Normal 3DNR
Auto White Balance can be applied to a designated area.
With this, colour casting can be prevented by setting the white
balance within an area while avoiding strong colour zones.
■ Area White Balance
* Tamron M13VM246 at wide angle* Tamron M13VM246 at wide angle
