JVC UX-A4 Service Manual

UX-A4 B/E/G/GI/EN
4
Fuse P.C. board
Power trans

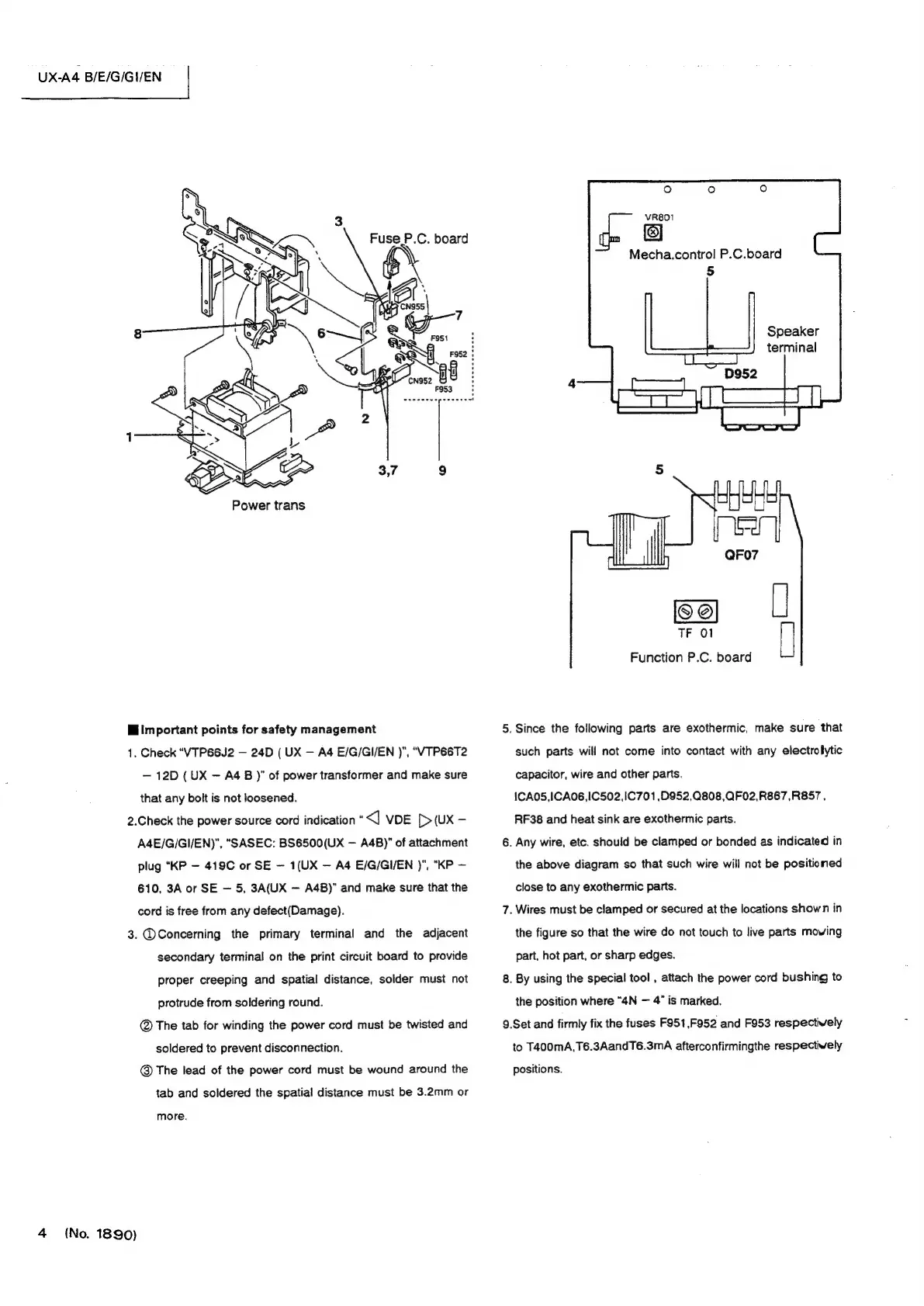

Hi lmportant points for safety management
1. Check “VTP66J2 — 24D ( UX — A4 E/G/GI/EN )", “VTP66T2
— 12D (UX — A4 B )” of power transformer and make sure
that any bolt is not loosened.
2.Check the power source cord indication “ <q VDE [> (ux -
A4E/G/GI/EN)", “SASEC: BS6500(UX — A4B)” of attachment
plug “KP — 419C or SE — 1(UX — A4 E/G/GI/EN )", “KP —
610, 3A or SE — 5, 3A(UX — A4B)” and make sure that the
cord is free from any defect(Damage).
3. M@Concerning the primary terminal and the adjacent
secondary terminal on the print circuit board to provide
proper creeping and spatial distance, solder must not
protrude from soldering round.
@ The tab for winding the power cord must be twisted and
soldered to prevent disconnection.
@ The lead of the power cord must be wound around the
tab and soldered the spatial distance must be 3.2mm or
more.
(No. 1890)
2)
VR801
Mecha.control P.C.board
5
Speaker
terminal
TF 01
Function P.C. board
5. Since the following parts are exothermic, make sure that
such parts will not come into contact with any electrolytic
capacitor, wire and other parts.
ICA05,ICA06,IC502,1C701 ,D952,Q808,QF02,R867,R857 ,
RF38 and heat sink are exothermic parts.
6. Any wire, etc. should be clamped or bonded as indicated in
the above diagram so that such wire will not be positioned
close to any exothermic parts.
7. Wires must be clamped or secured at the locations shown in
the figure so that the wire do not touch to live parts mowing
part, hot part, or sharp edges.
8. By using the special tool , attach the power cord bushing to
the position where “4N — 4” is marked.
9.Set and firmly fix the fuses F951,F952 and F953 respectively
to T400mA, T6.3AandT6.3mA afterconfirmingthe respectively
positions.
