1-13
UX-P3
Prior to performing the following procedure, remove
the front panel assembly.
Remove the screw O on the back of the front panel.
If necessary, remove the band bundling the wire
extending from the headphone board and the display
board.
1.
2.
Removing the headphone board
(See Fig.23)
Prior to performing the following procedure, remove
the front panel assembly.
Press the EJCT button on the front panel to open the
cassette door.
Remove the four screws P on the back of the front
panel.
1.
2.
Removing the cassette mechanism
assembly (See Fig.23 and 24)

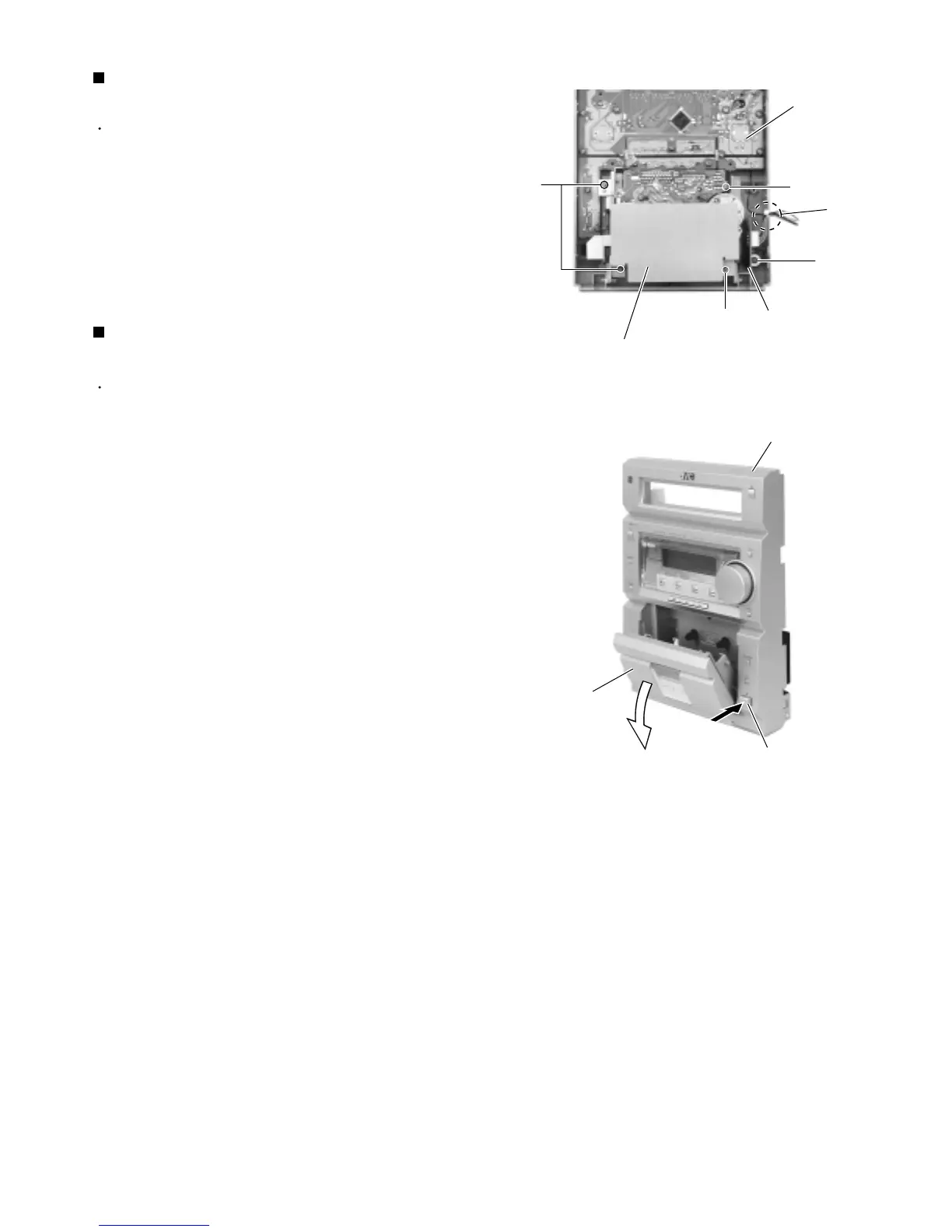

Fig.23
Fig.24
Display board
P
Band
O
Headphone board
Cassette mechanism assembly
P
Front panel assembly
Cassette door
EJCT button
P
