10 English
1 * Filling system
2 Fresh water tank cap with fresh water filter
3 Coarse dirt sieve
4 Waste water tank cap
5 Control panel
6 Squeegee blade adjustment wheel (D cleaning head
only)
7 Brush replacement pedal (D cleaning head only)
8 Steering wheel
9 Squeegee blade
10 Brush replacement handle (R cleaning head only)
11 Sidelight
12 Coarse dirt container (only with R cleaning head)
13 Detergent canister
14 Type plate
15 Detergent suction hose
16 Battery
17 * Internal charger
18 Battery connector (with external charger)
Charger mains cable (with internal charger)
19 Storage area for "Homebase Box" cleaning set
20 * Warning light
21 Seat
22 Waste water tank latch
23 Seat adjustment lever
24 Fresh water tank filling hole
25 Hose switch
26 Daytime running light
27 Accelerator pedal
28 * Side scrubbing deck
29 * Water connection for waste water tank rinsing system
30 Waste water tank lid support
31 Float
32 Fluff filter
33 Storage for suction bar
34 Waste water tank drain hose with dosing unit
35 Waste water tank
36 * Mop holder
37 Suction hose
38 Suction bar clamping lever
39 Waste water tank lock
40 Suction bar
41 Cleaning head
42 Fresh water filling level display
43 Fresh water tank
* optional
Color coding
● Control elements for the cleaning process are yellow.
● Control elements for maintenance and servicing are
light gray.

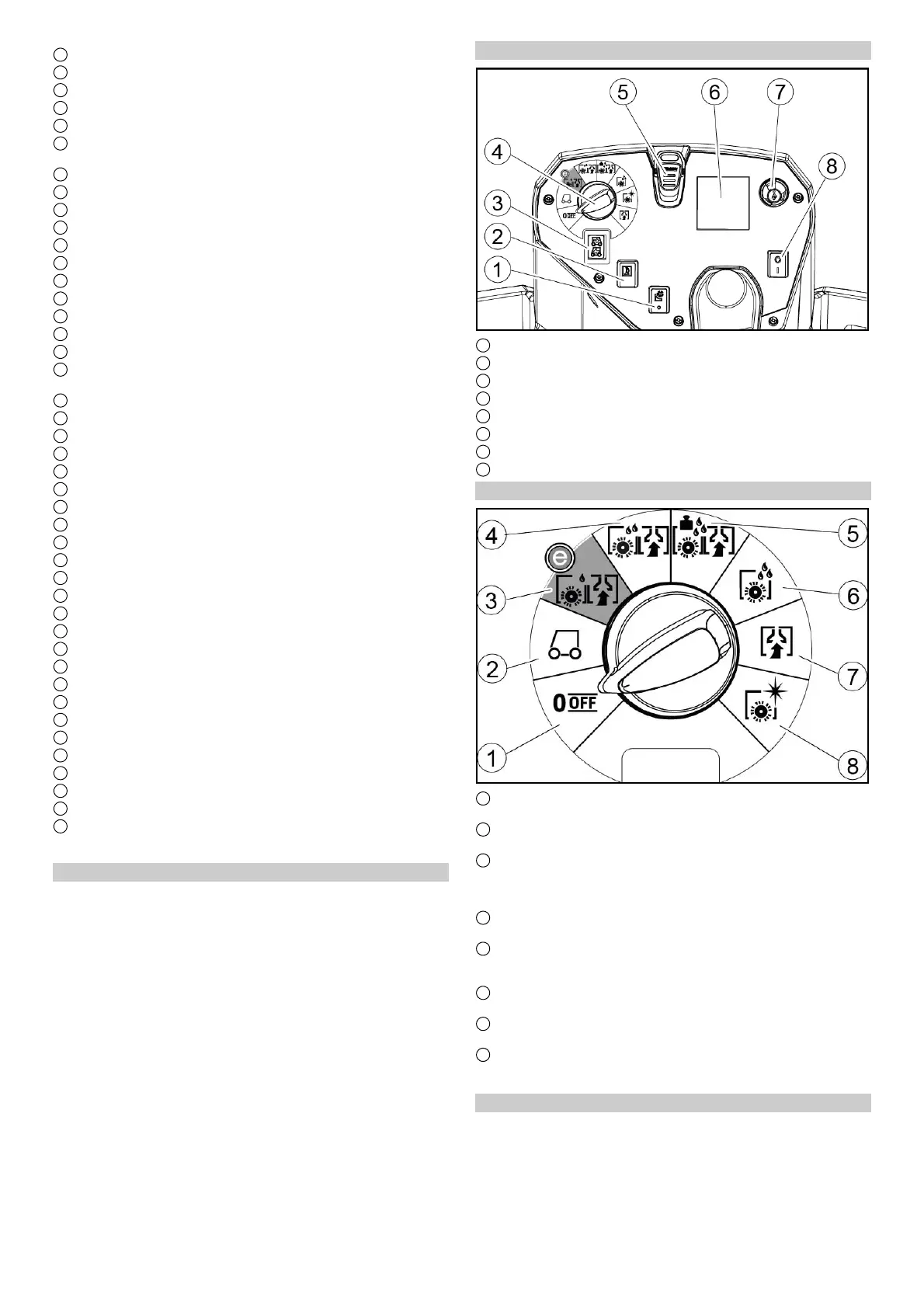

Control panel
1 * Side scrubbing deck switch
2 Horn
3 Travel direction switch
4 Program switch
5 Intelligent key
6 Display
7 Info button
8 Safety button
Program switch
1 OFF
The device is switched off.
2 Transport journey
Drive to the operating location.
3 Eco program
Clean the floor wet (with a reduced amount of water and
a reduced brush speed) and vacuum up waste water
(with reduced suction power).
4 Scour and vacuum
Wet clean the floor and vacuum up the waste water.
5 Increased brush contact pressure
Wet clean the floor (with increased brush contact pres-
sure) and vacuum up the waste water.
6 Scouring / pre-cleaning without vacuuming
Clean the floor wet and let the detergent act.
7 Suctioning
Vacuum up the waste water.
8 Polishing
Polish the floor at a high brush speed without applying
liquid.
Suction bar holder
● When driving through narrow spaces, the suction bar
can be removed and hung in one of the openings on the
lid of the waste water tank.
