20 English

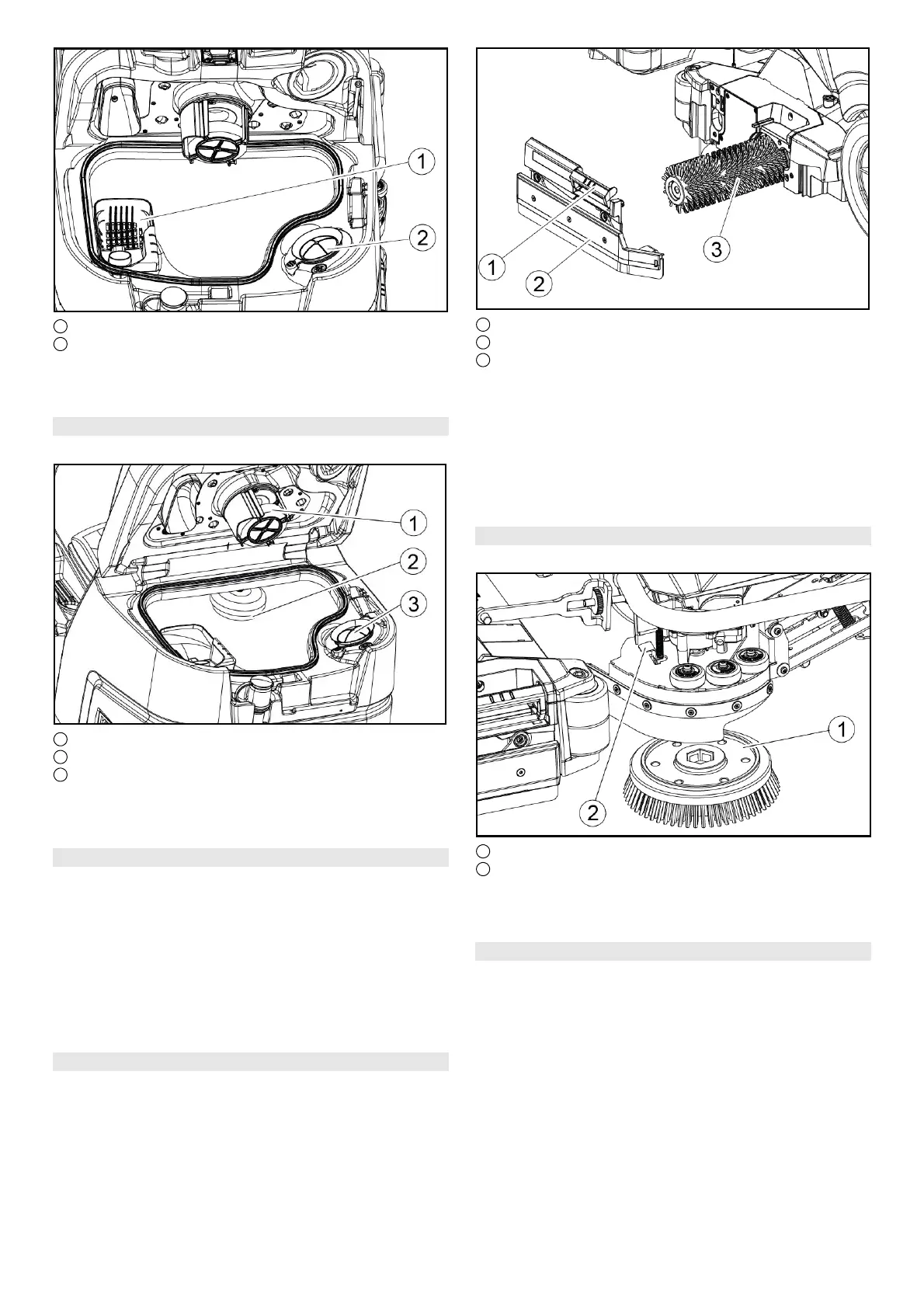

1 Coarse dirt sieve
2 Fluff filter
2. Pull the coarse dirt sieve upwards and off.
3. Rinse off the coarse dirt sieve under running water.
4. Reinsert the coarse dirt sieve into the waste water tank.
Clean the float and fluff filter
1. Open the waste water tank cover.
1 Float
2 Float switch
3 Fluff filter
2. Rinse the float with clear water.
3. Rinse the float switch with clear water.
4. Remove and clean the fluff filter.
Replacing the disc brush
Note
Replace the disc brushes when the bristle length has
reached 10 mm.
1. Raise the cleaning head.
2. Push the brush replacement pedal downwards.
3. Pull the disc brush sideways and out from underneath
the cleaning head.
4. Hold the new disc brush under the cleaning head, then
press upwards and latch it into position.
Replacing the roller brushes
Note
Replace the roller brushes when the bristle length has
reached 10 mm.
1. Raise the cleaning head.
2. Pull out the brush replacement handle.
1 Brush replacement handle
2 Bearing cover with squeegee blade
3 Roller brush
3. Remove the bearing cover including the squeegee
blade.
4. Pull out the roller brush.
5. Insert the new roller brush and center it on the driver.
6. Install the bearing cover with the squeegee blade.
7. Pivot the brush replacement handle upwards and latch
it into place.
8. Repeat the entire procedure at the other side.
Replacing the side scrubbing deck brush (option)
1. Press the brush replacement lever downwards.
1 Side scrubbing deck brush
2 Brush replacement lever
The brush falls out of the holder.
2. Hold the new brush under the side scrubbing deck, then
press upwards and latch it into position
Cleaning the fresh water filter
1. Drain the fresh water (see chapter "Draining fresh wa-
ter").
2. Unscrew the fresh water tank lock.
