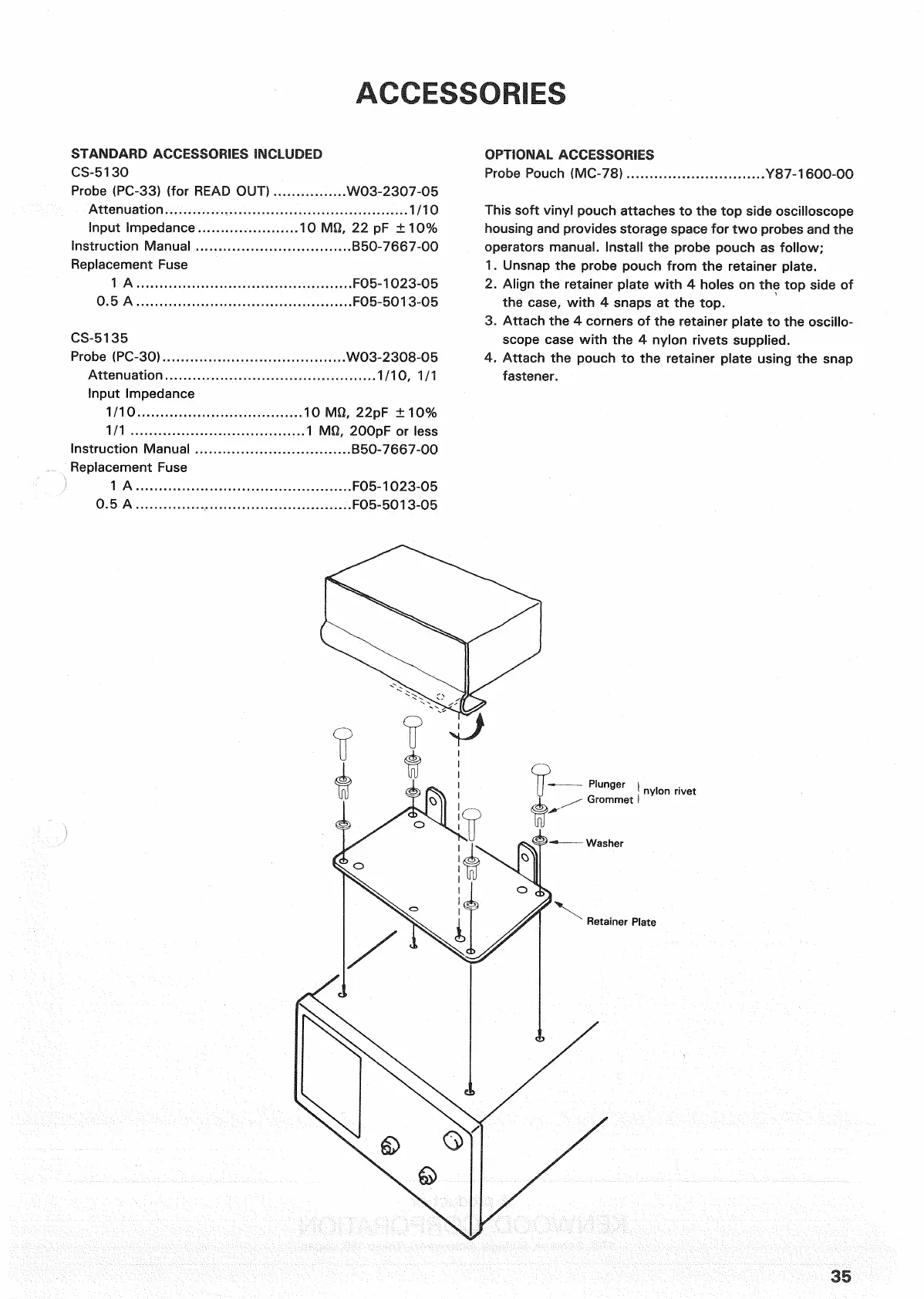

ACCESSORIES
OPTIONAL
ACCESSORIES
Probe Pouch (MC-78) Y87-1600-00
This
soft
vinyl
pouch
attaches to the top side oscilloscope
housing and provides storage space for two probes and the
operators manual. Install the
probe
pouch
as
follow;
1.
Unsnap the
probe
pouch
from
the retainer plate.
2.
Align
the retainer
plate
with
4 holes on the top side of
the
case,
with
4 snaps at the top.
3.
Attach the 4 corners of the retainer
plate
to the oscillo-
scope case
with
the 4
nylon
rivets supplied.
4.
Attach the
pouch
to the retainer
plate
using the snap
fastener.
35
STANDARD
ACCESSORIES
INCLUDED
CS-5130
Probe
(PC-33)
(for
READ
OUT) W03-2307-05
Attenuation
1/10
Input
Impedance ....10 MO, 22 pF ±10%
Instruction
Manual B50-7667-00
Replacement
Fuse
1
A F05-1023-05
0.5 A F05-5013-05
CS-5135
Probe
(PC-30)
W03-2308-05
Attenuation
1/10, 1/1
Input
Impedance
1/10 10 M0, 22pF ±10%
1/1 1 M0, 200pF or
less
Instruction
Manual B50-7667-00
Replacement
Fuse
1
A F05-1023-05
0.5 A F05-5013-05
Plunger
nylon
rivet
Grommet
Washer
Retainer Plate
To Next Page
