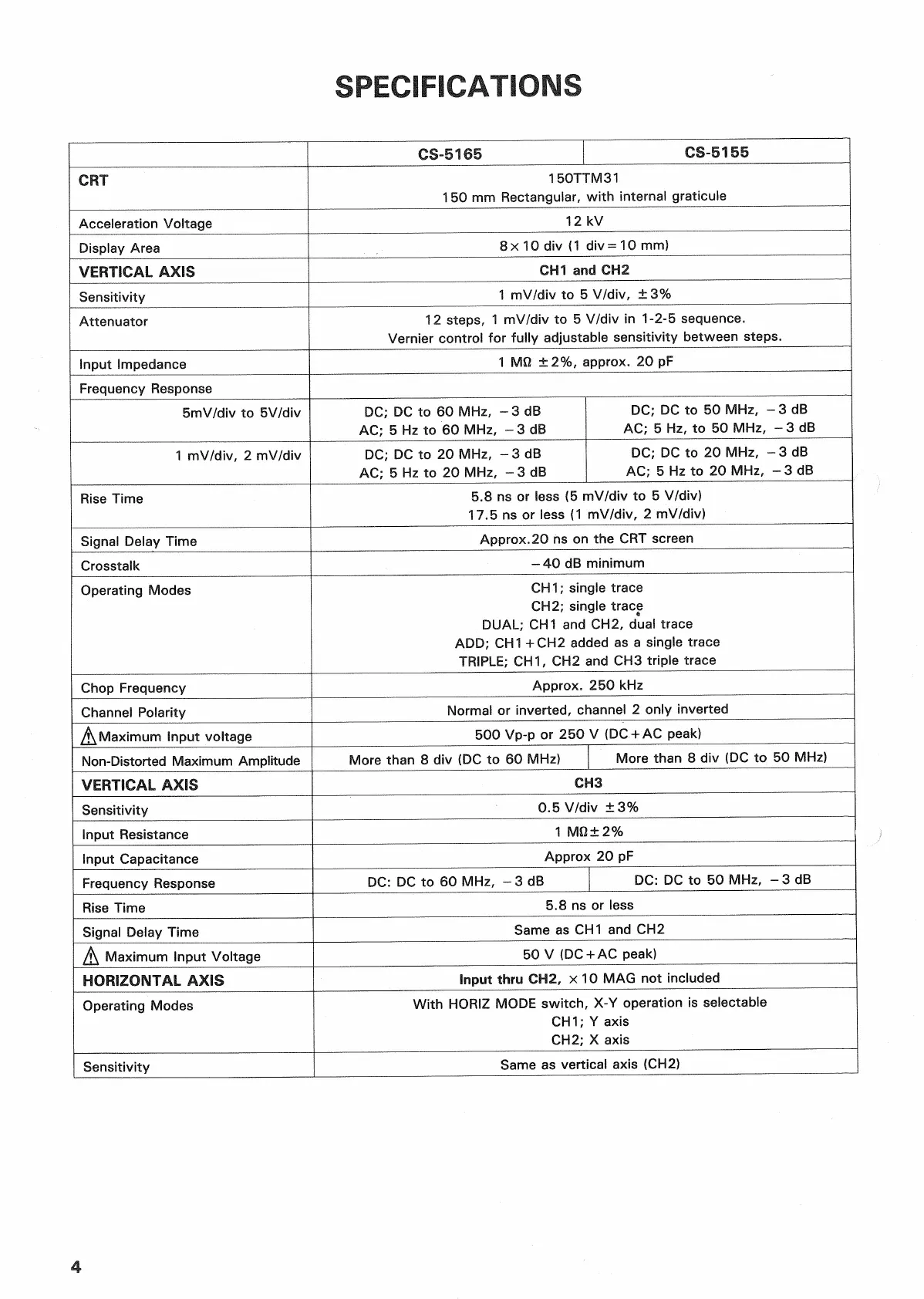

SPECIFICATIONS
CS-5165
CS-5155
CRT
150TTM31
150 mm Rectangular, with internal graticule
Acceleration Voltage
12 kV
Display Area
8x 10 div (1 div= 10 mm)
VERTICAL AXIS
CH1 and CH2
Sensitivity
1 mV/div to 5 V/div, ±3%
Attenuator
12 steps, 1 mV/div to 5 V/div in 1-2-5 sequence.
Vernier control for fully adjustable sensitivity between steps.
Input Impedance
1 MO ±2%, approx. 20 pF
Frequency Response
5mV/div to 5V/div
DC; DC to 60 MHz, -3 dB
AC; 5 Hz to 60 MHz, -3 dB
DC; DC to 50 MHz, -3 dB
AC; 5 Hz, to 50 MHz, -3 dB
1 mV/div, 2 mV/div
DC; DC to 20 MHz, -3 dB
AC; 5 Hz to 20 MHz, -3 dB
DC; DC to 20 MHz, -3 dB
AC; 5 Hz to 20 MHz, -3 dB
Rise Time
5.8 ns or less (5 mV/div to 5 V/div)
17.5 ns or less (1 mV/div, 2 mV/div)
Signal Delay Time
Approx.20 ns on the CRT screen
Crosstalk
-40 dB minimum
Operating Modes
CH1; single trace
CH2; single trace
DUAL; CH1 and CH2, dual trace
ADD; CH1 +CH2 added as a single trace
TRIPLE; CH1, CH2 and CH3 triple trace
Chop Frequency
Approx. 250 kHz
Channel Polarity
Normal or inverted, channel 2 only inverted
A Maximum Input voltage
500 Vp-p or 250 V (DC + AC peak)
Non-Distorted Maximum Amplitude
More than 8 div (DC to 60 MHz)
More than 8 div (DC to 50 MHz)
VERTICAL AXIS
CH3
Sensitivity
0.5 V/div ±3%
Input Resistance
1 M0±2%
Input Capacitance
Approx 20 pF
Frequency Response
DC: DC to 60 MHz, -3 dB
DC: DC to 50 MHz, -3 dB
Rise Time
5.8 ns or less
Signal Delay Time
Same as CH1 and CH2
A Maximum Input Voltage
50 V (DC + AC peak)
HORIZONTAL AXIS
Input thru CH2, x 10 MAG not included
Operating Modes
With HORIZ MODE switch, X-Y operation is selectable
CH1; Y axis
CH2; X axis
Sensitivity
Same as vertical axis (CH2)
4
