English
3

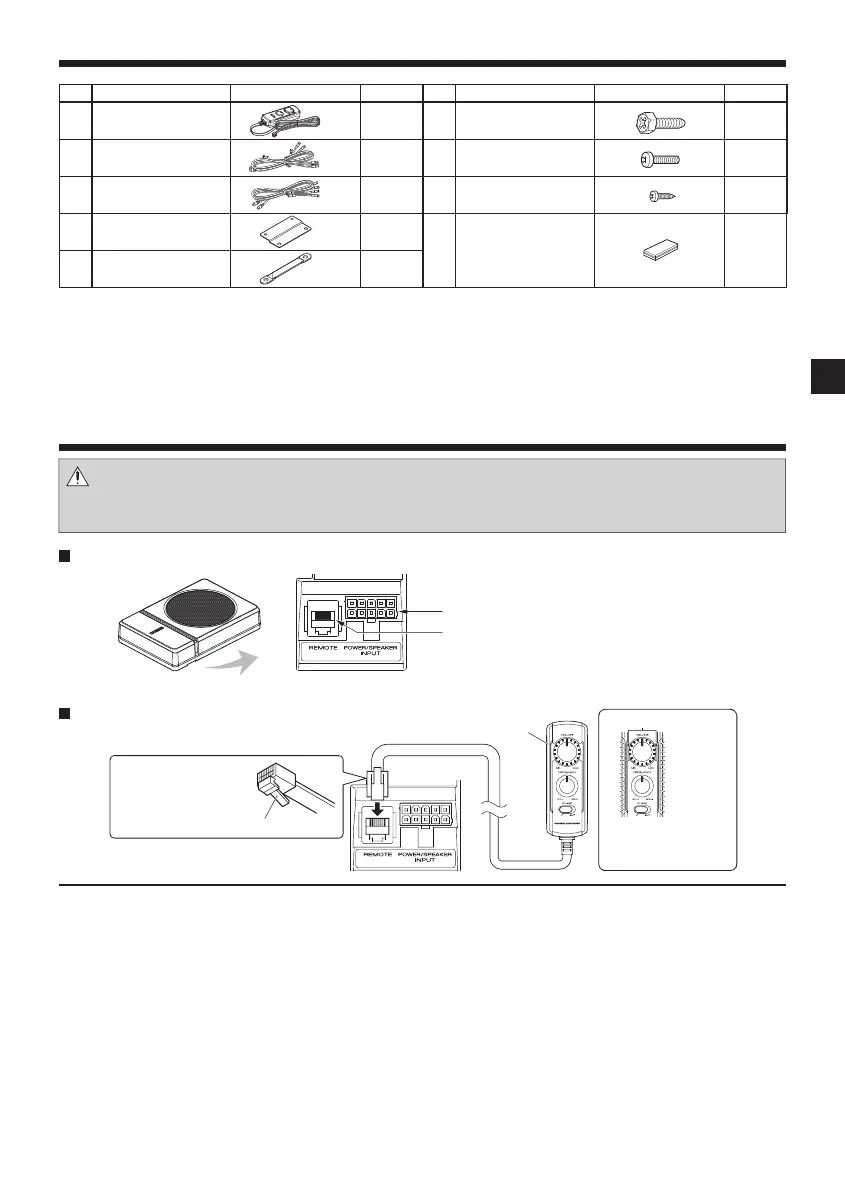

Parts
Caution:
Before wiring, be sure to remove the wire from the negative terminal of the battery. After completing all wiring, check the
correct wirings again. After checking, connect the wire from the negative terminal of the battery.
Terminals of Subwoofer
Connecting the remote control unit
Notes:
• Be sure to connect the supplied remote control unit.
• If the cord is not connected properly, the illumination on the remote control unit do not light up.
• Do not insert the remote control connector upside down or forcibly. Otherwise, malfunction may result.
Connections
No. Part Name Outside Shape Quantity No. Part Name Outside Shape Quantity
①
Remote control
(5 m / 16 ft)
1
⑥
Tapping screw
(ø 5 × 16 mm (5/8”))
4
②
10-pin connector cord
(5 m / 16 ft)
1
⑦
Machine screw
(M4 × 16 mm (5/8”))
4
③
Speaker cord
(4.3 m/ 14 ft)
1
⑧
Tapping screw
(ø 3 × 10 mm (3/8”))
2
④
Fixture A 2
⑨
Hook-and-loop fastener
(Double-side adhesive/
for Remote control)
1
⑤
Fixture B 1
POWER/SPEAKER INPUT terminal
REMOTE terminal
① Remote control
When the power turns
ON, the illumination
lights.
Lights in blue.
Connect with the lock
part of remote control
jack facing down.
Lock part
1EN-10.indd31EN-10.indd3 2018/07/1210:562018/07/1210:56
To Next Page
