Kenwood KSC-SW01 User Manual

English
3
ENGLISH

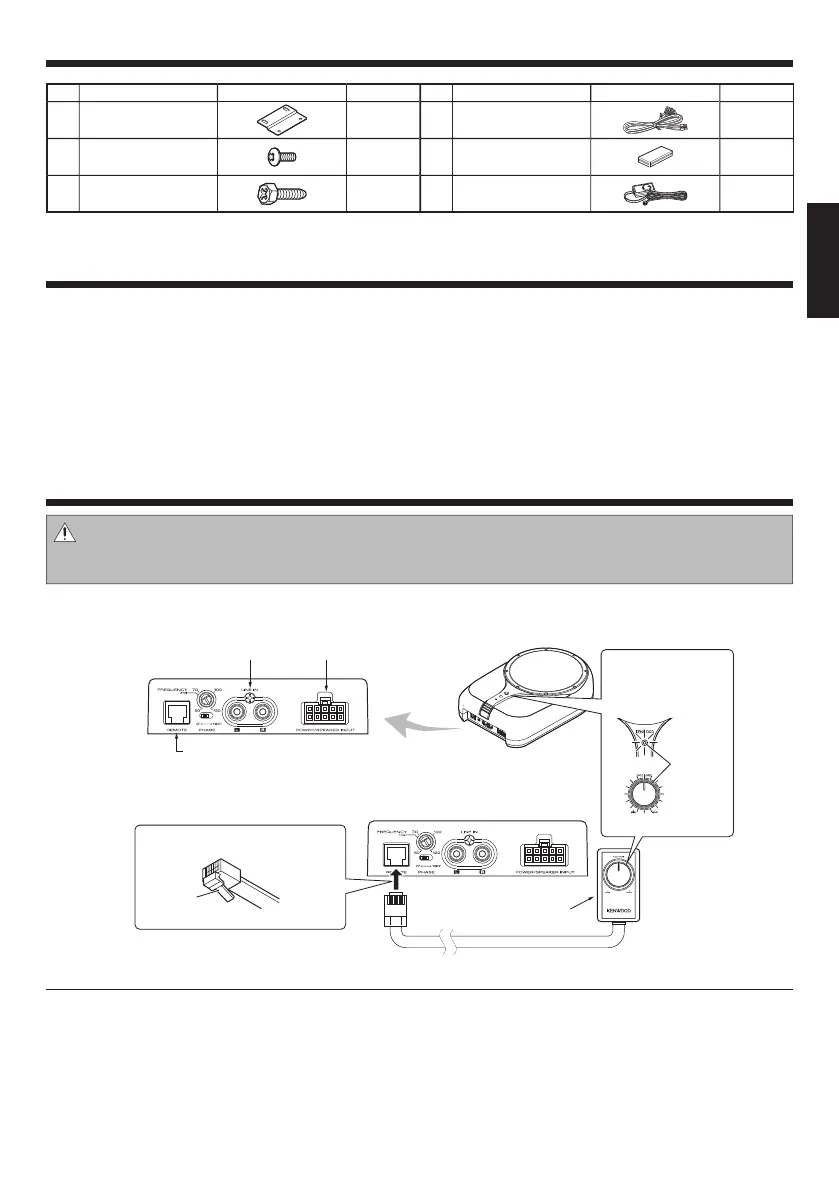

Parts included
No. Part Name Outside Shape Quantity No. Part Name Outside Shape Quantity
1
Fixture
2
4
10-pin connector cord
(6 m / 19 ft)
1
2
Machine screw (M4 × 5)
4
5
Velcro tape
(Double-side adhesive/
for Remote control)
1
3
Tapping screw (ø 5 × 16)
4
6
Remote control
(6 m / 19 ft)
1
Caution:
Before wiring, be sure to remove the wire from the negative terminal of the battery. After completing all wiring, check the cor-
rect wirings again. After checking, connect the wire from the negative terminal of the battery.
7
Terminals of Subwoofer
POWER/SPEAKER INPUT terminal
(for Speaker cords)
REMOTE terminal
LINE IN terminal
(for RCA pin jack)
7
Connecting the remote control unit
6
Remote control
Notes:
• If the cord is not connected properly, the power indicator on the remote control unit and the illumination on the main unit
do not light up.
• If the remote control unit is not connected properly or at all, the subwoofer does not output the sound.
• Do not insert the remote control connector upside down or forcibly. Otherwise, malfunction may result.
Specifications
The following ratings and design are subject to change without notice.
Maximum output ..............................................................150 W
Frequency response ........................................... 35 Hz - 120 Hz
Cut-off frequency ............................................... 50 Hz - 120 Hz
Phase ................................................................................0˚, 180˚
Input sensitivity/impedance
LINE IN ...............................................................32 mV / 10 kΩ
Speaker input ...............................................720 mV / 2.2 kΩ
Power ......................... DC 14.4 V (Operating range 11 V - 16 V)
Maximum current consumption ...................................... 8.5 A
Fuse capacity ........................................................................10 A
Sensitivity ............................................................103 dB (In car)
External size .......................................Width: 180 mm (7-1/16")
Height: 70 mm (2-3/4")
Depth: 270 mm (10-5/8")
Weight (net) ..........................................................2.4 kg (5.3 Ib)
Connection
When the power
turns ON, the
illumination lights.
Lights in
blue.
Connect with the lock part of
remote control jack facing down.
Lock part
