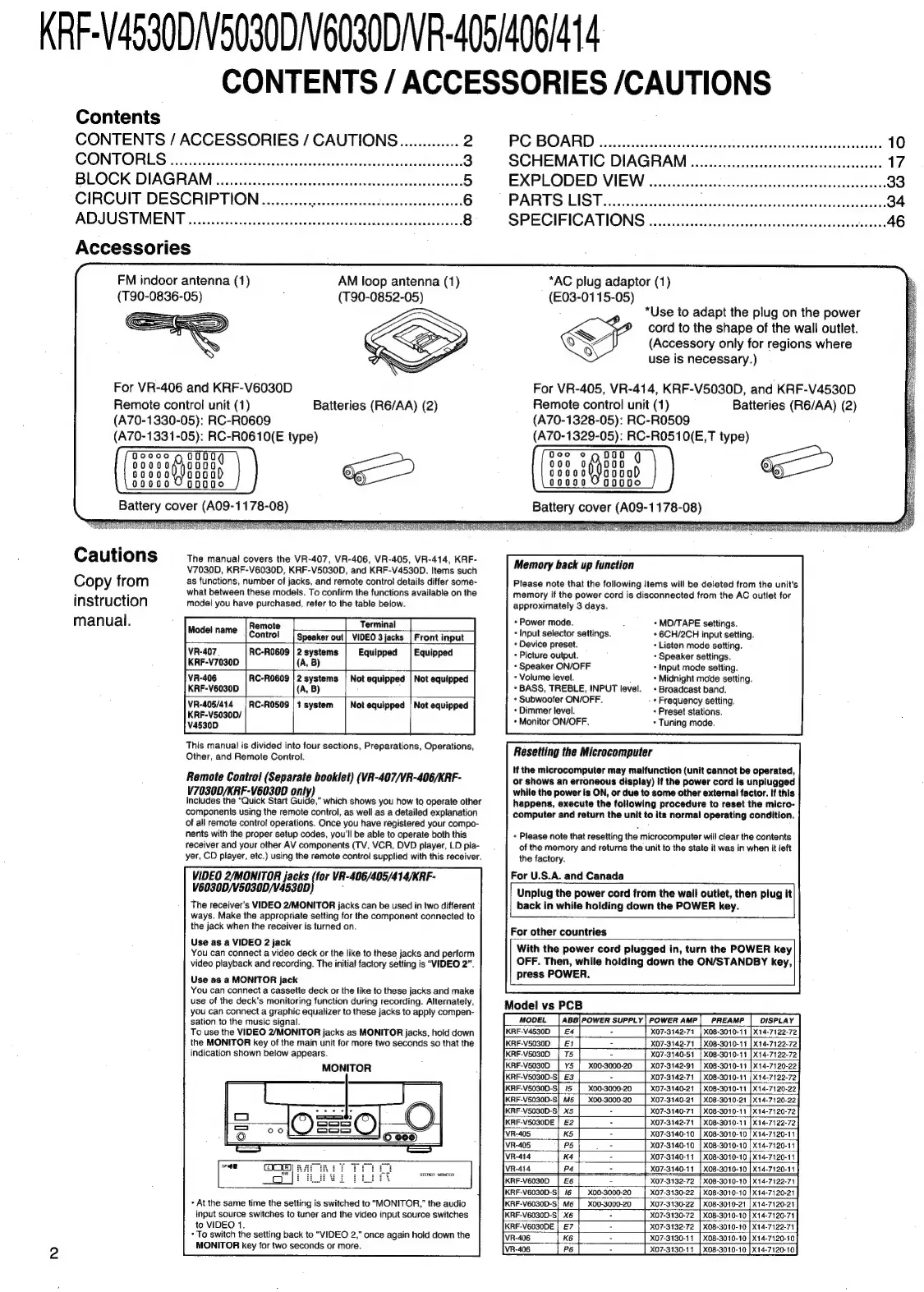

Kenwood VR-405 Service Manual

KRF-V4530D/VS030D/V6030D/VR-405/406/414
CONTENTS / ACCESSORIES /CAUTIONS
Contents
CONTENTS / ACCESSORIES / CAUTIONG.............. 2
CONTORLS .......cccccccee- pe cn neh e alpteee nny 3
BLOCK DIAGRAM ............ seb anattedelts et re en 5
CIRCUIT DESCRIPTION .........c.:ecceccccoccsecsceccseesesecseees 6
ADJUSTMENT ........0cccccccceccecceesseseeees sit taka Rat cas.) 8
Accessories
FM indoor antenna (1)
(T90-0836-05)
AM loop antenna (1)
(T90-0852-05)
For VR-406 and KRF-V6030D
Remote control unit (1)
(A70-1330-05): RC-RO609
(A70-1331-05): RC-RO610(E type)
Batteries (R6/AA) (2)
ono
Cautions The manual covers the VR-407, VR-406, VR-405, VR-414, KRF-
V7030D, KRF-V6030D, KRF-V5030D, and KRF-V4530D. Items such
Copy from as functions, number of jacks, and remote contro} details differ some-
2 Z what between these models. To confirm the functions available on the
instruction model you have purchased, refer to the table below.
manual. Model name [Remote |__| Terminal [
Contro!__| Speaker out| VIDEO 3jecks [Front input_|
Equipped
VR-407. RC-R0609 | 2 systems Equipped
KRF-V7030D {A, B)
VR-406 RC-RO609 | 2 systems | Not equipped | Not equipped
KRF-V6030D (A, B)
VR-405/414 | RC-RO509 Not equipped | Not equipped
KRF-V5030D/
V4530D
This manual is divided into four sections, Preparations, Operations,
Other, and Remote Control.
Remote Control (Separate booklet) (VR-407/VR-406/KRF-
V7030D/KRF-V6030D only)
Includes the “Quick Start Guide,” which shows you how to operate other
components using the remote control, as well as a detailed explanation
of all remote control operations. Once you have registered your compo-
nents with the proper setup codes, you'll be able to operate both this
receiver and your other AV components (TV, VCR, DVD player, LD pla-
yer, CD player, etc.) using the remote contro! supplied with this receiver.
VIDEO 2/MONITOR jacks (for VR-406/405/414/KRF-
V6030D/V5030D/V4530D :
The receiver's VIDEO 2/MONITOR jacks can be used in two different
ways. Make the appropriate setting for the component connected to
the jack when the receiver is turned on.
Use as a VIDEO 2 jack
You can connect a video deck or the like to these jacks and perform
video playback and recording. The initial factory setting is “VIDEO 2”.
Use as a MONITOR jack
You can connect a cassette deck or the like to these jacks and make
use of the deck’s monitoring function during recording. Alternately,
you can connect a graphic equalizer to these jacks to apply compen-
sation to the music signal.
To use the VIDEO 2/MONITOR jacks as MONITOR jacks, hold down
the MONITOR key of the main unit for more two seconds so that the
indication shown below appears.
MONITOR
PC BOARD ...... essere
SCHEMATIC DIAGRAM ..
EXPLODED VIEW ...........
*AC plug adaptor (1)
(E03-01 15-05)
*Use to adapt the plug on the power
cord to the shape of the wall outlet.
(Accessory only for regions where
use is necessary.)
For VR-405, VR-414, KRF-V5030D, and KRF-V4530D
Remote control unit (1) Batteries (R6/AA) (2)
(A70-1328-05): RC-RO509
GO
(A70-1329-05): RC-RO510(E,T type)
Battery cover (A09-1178-08)
Memory back up function
Please note that the following items will be deleted from the unit's
memory if the power cord is disconnected from the AC outlet for
approximately 3 days.
+ Power mode.
+ Input selector settings.
+ Device preset.
+ Picture output.
+ Speaker ON/OFF
+ Volume level.
- BASS, TREBLE, INPUT level.
+ Subwoofer ON/OFF.
+ Dimmer level.
+ Monitor ON/OFF.
+ MD/TAPE settings.
+ 6CH/2CH input setting.
« Listen mode setting.
+ Speaker settings.
+ Input mode setting.
+ Midnight mode setting.
+ Broadcast band.
* Frequency setting.
+ Preset stations.
* Tuning mode.
Resetting the Microcomputer
If the microcomputer may malfunction (unit cannot be operated,
or shows an erroneous display) if the power cord is unplugged
while the power is ON, or due to some other external factor. If this
happens, execute the following procedure to reset the micro-
computer and return the unit to its normal operating condition.
+ Please note that resetting the microcomputer will clear the contents
of the memory and returns the unit to the state it was in when it left
the factory.
For U.S.A. and Canada
Unplug the power cord from the wail outlet, then plug it
back in while holding down the POWER key.
For other countries
With the power cord plugged in, turn the POWER key
OFF. Then, while holding down the ON/STANDBY key,
press POWER.
Model vs PCB
POWER SUPPLY | POWER AMP
: X07-3142-71
X07-3142-71
X07-3140-51
X07-3142-91
X07-3142-71
X07-3140-21
X07-3140-21
PREAMP DISPLAY
X08-3010-11 | X14-7122-72
| X08-3010-11 | X14-7122-72
X08-3010-11 | X14-7122-72
X08-3010-11 | X14-7120-22
X08-3010-11 | X14-7122-72
X08-3010-11 | X14-7120-22
X08-3010-21 | X14-7120-22
X07-3140-71 | X08-3010-11 |X14-7120-72
X07-3142-71 | XO8-3040-11 | X14-7122-72
X07-3140-10 | X08-3010-10 | X14-7120-11
X07-3140-10 | X08-3010-10 | X14-7120-11
X07-3140-11 | X08-3010-10 |X14-7120-11
X00-3000-20
X00-3000-20
X00-3000-20
+ At the same time the setting is switched to “MONITOR,” the audio
input source switches to tuner and the video input source switches
to VIDEO 1.
+ To switch the setting back to “VIDEO 2,” once again hold down the
MONITOR key for two seconds or more.
4 X07-3140-11 X08-3010-10 | X14-7120-11
X07-3132-72 | X08-3010-10 | X14-7122-71
X07-3130-22 ‘| X08-3010-10 X14-7120-21
X07-3130-22 | X08-3010-21 | X14-7120-21
X07-3130-72 | X0B-3010-10 | X14-7120-71
X07-3132-72 | X08-3010-10 | X14-7122-71
X07-3130-11 | X08-3010-10 | X14-7120-10
X07-3130-11_ | X0B-3010-10 | X14-7120-10
Je
X00-3000-20
X00-3000-20
