PERIODIC SERVICE 12-13
196OC25A

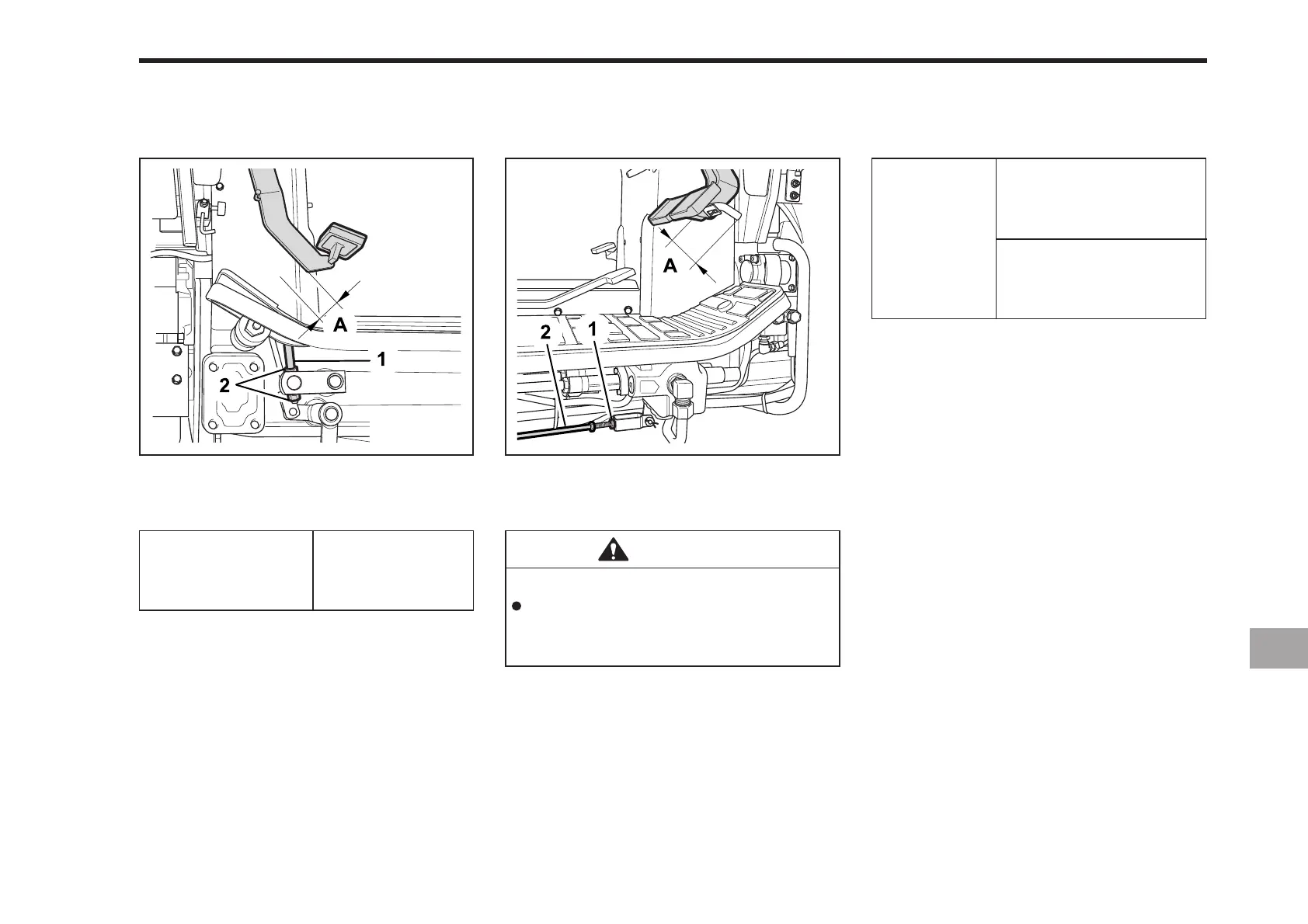

ADJUSTING CLUTCH PEDAL
Proper clutch pedal
free travel (A)
20 ~ 30 mm
(0.8 ~ 1.2 in.)
on the pedal
1. Stop the engine and remove the key.
2. Slightly depress the clutch pedal and
measure free travel at top of pedal
stroke.
3. If adjustment is needed, loosen the lock
nut, remove the clevis pin and adjust
the rod length within acceptable limits.
4. Retighten the lock nut and split the
cotter pin.
(1) Clutch Rod (A) Free Travel
(2) Nut
196OC26A
ADJUSTING BRAKE PEDAL
Proper brake
pedal free
travel (A)
20 ~ 30 mm
(0.787 ~ 0.181 in.)
on the pedal.
Keep the free travel
in the right and left
brake pedals equal.
1. Release parking brake
2. Slightly depress the pedals and mea-
sure the free travel at the top of the
pedal stroke.
3. When adjustments are needed, loosen
the locking nut and turn the turnbuckle
until the rod length is at the desired
and acceptable limit.
4. Re-tighten the lock nuts.
(1) Lock Nut (2) Brake Rod
(A) Free Travel
CAUTION
To avoid personal injury:
Stop the engine and chock the
wheels before checking brake
pedal.
