(1) Draft Control Lever

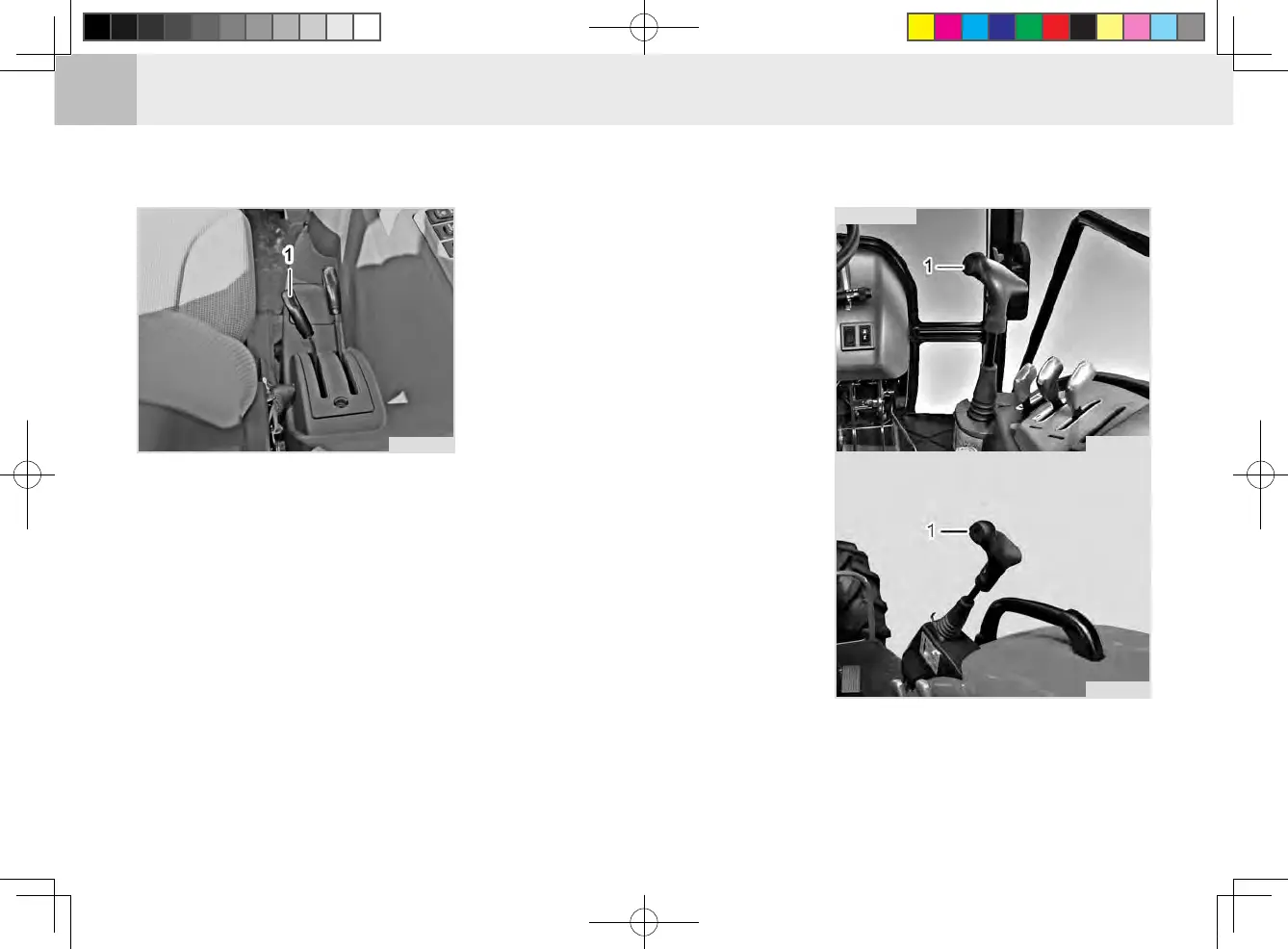

DRAFT CONTROL LEVER
The draft function can be used for
the plow which is installed to the
lower link. (Lifting arm)
TE1O472A
If the plow is operated with exces-
sive draft, the lifting arm is automati-
cally raised to reduce the draft and
then returned to its original. This is
called as "Draft Function".
The plow-
ing depth can be controlled by the
soil status by putting the draft control
lever into the "Deep" position to ac-
tivate the draft function at mid load
and putting the lever into the "Shal-
low" position to activate the draft
function at light load.
F
or detailed information, refer to "Ini-
tial
Operation" in Chapter 5.
JOYSTICK LEVER
This joystick lever is used only to lift
and lower the loader attached to the
tractor.
TE1O4E3A
CABIN
(1) Joystick Lever
TE1O473A
