ASSEMBLY INSTRUCTIONS
To avoid injury, adjust the auxiliary handle for optimum control and balance. Do not overreach when
operating grass trimmer/edger. Keep proper balance at all times for better control of the tool in
unexpected situations
2. Front handle

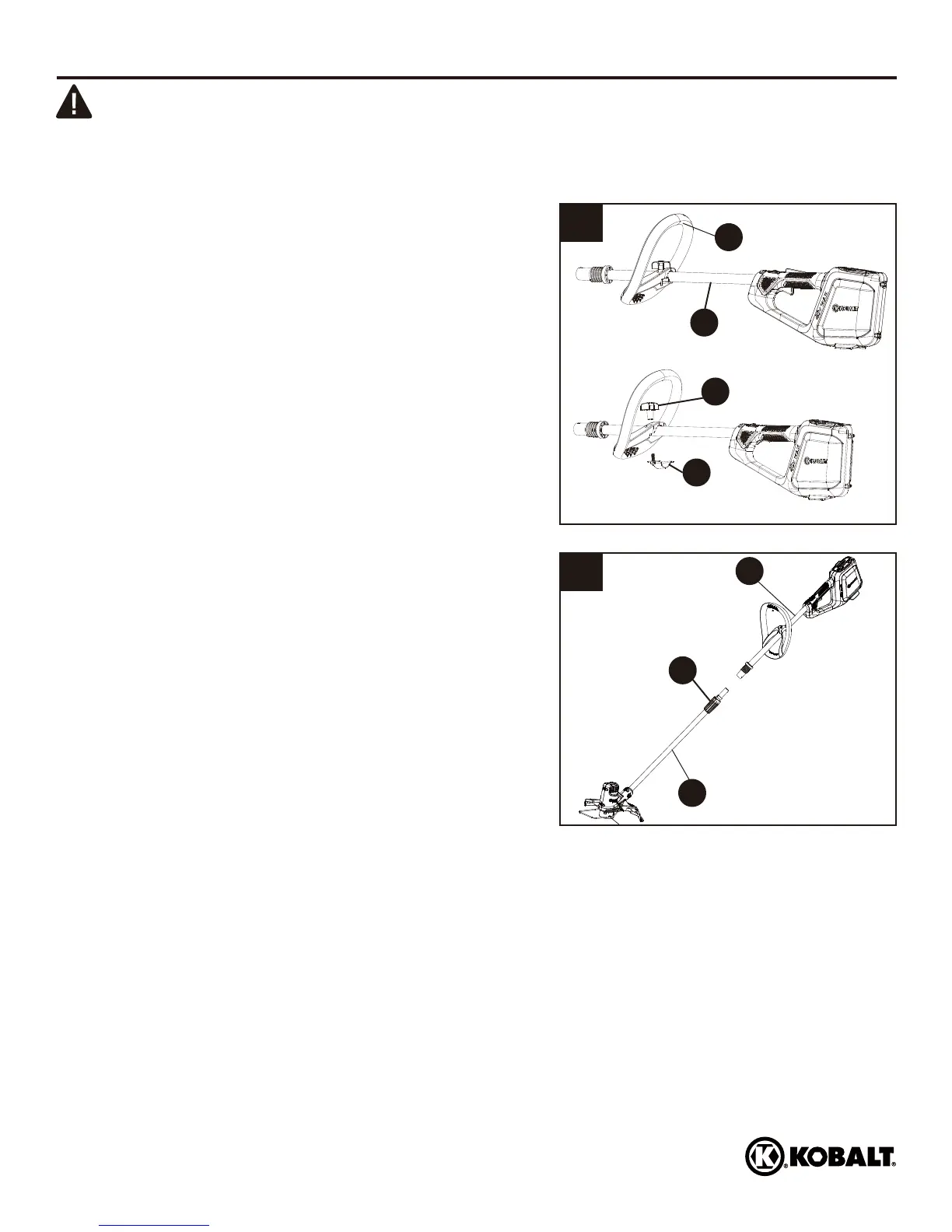

a. Position the front/auxiliary handle (E) onto the
upper portion of the trimmer section by sliding over
the upper tube (J).
b. Once the front handle is in the desired position,
place the fastening clamp (CC) on the underside
of the handle and secure in place by tightening
the fastening knob (BB). Tighten until there is no
movement in the handle.
c. The front handle can be adjusted to a suitable
position.
3. Connect upper/lower trimmer tubes
Slide the coupler (F) up the lower tube (K) and
engage the threads from the upper tube (J). Rotate the
coupler (F) to the right to securely tighten.
2
3
WARNING
E
J
K
J
F
BB
CC
To Next Page
