Kohler K-7514 User Manual

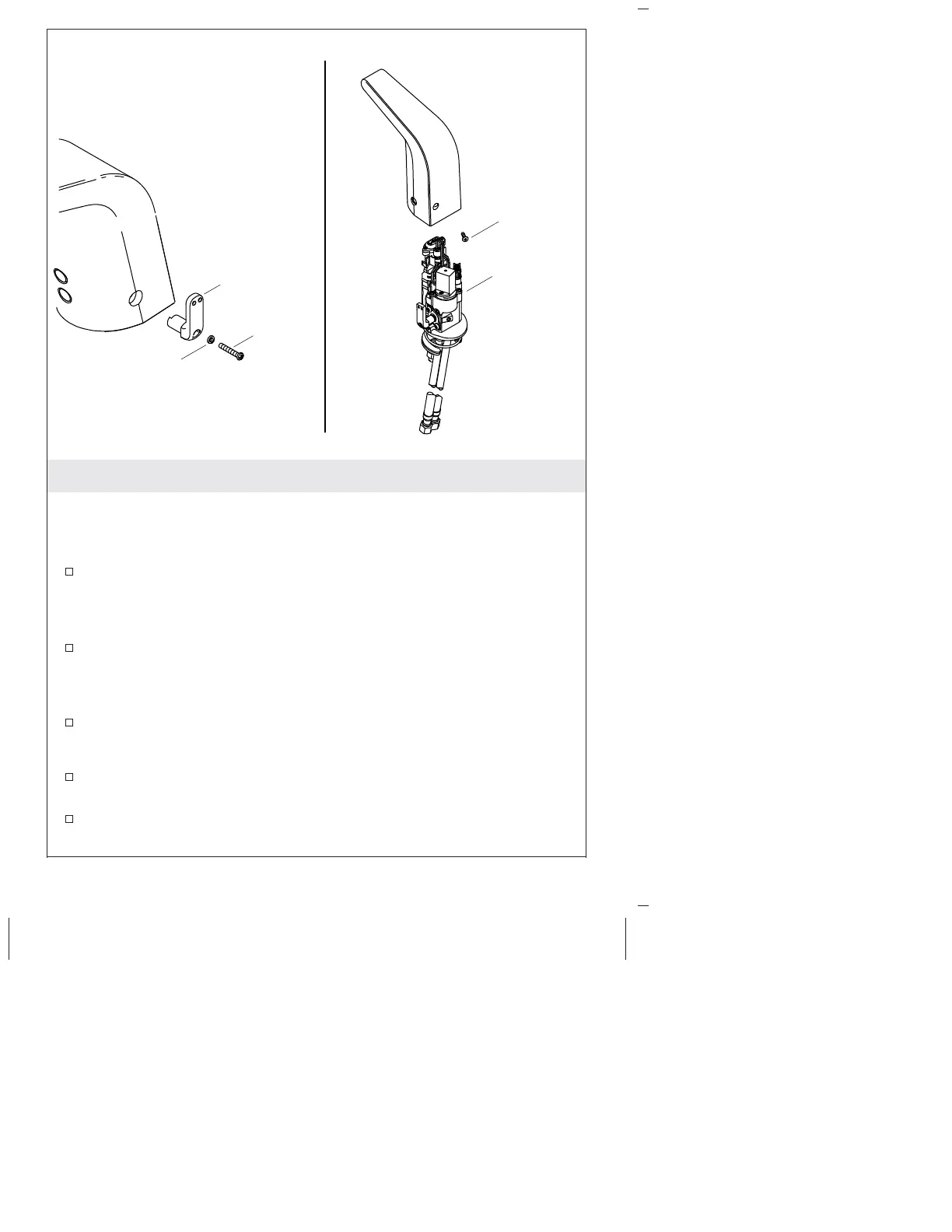

Disassemble/Reassemble the Faucet
NOTE: Cover the drain with the plastic cap (provided) or towel to
avoid losing small parts during this procedure.
Disassemble
For K-7515, K-7517, K-7519, K-13460, K-13462, K-13466, K-13468,
K-13472, K-13474, K-45344, and K-45345 only, use the 2.5 mm hex
wrench provided to remove and retain the screw from the handle.
Remove and retain the handle with the spring washer.
Remove and retain the screw from the back of the faucet.
IMPORTANT! Take care to avoid scratching the sensor lens when
removing the spout.
Slide the spout forward and off the body.
Reassemble
Slide the spout over the body until the base of the spout is flush
against the mounting surface.
Reinstall the screw into the back of the faucet.
Handle
Spring
Washer
Screw
Handle
Body
Screw
Back of Faucet
1244026-5-A 2 Kohler Co.
