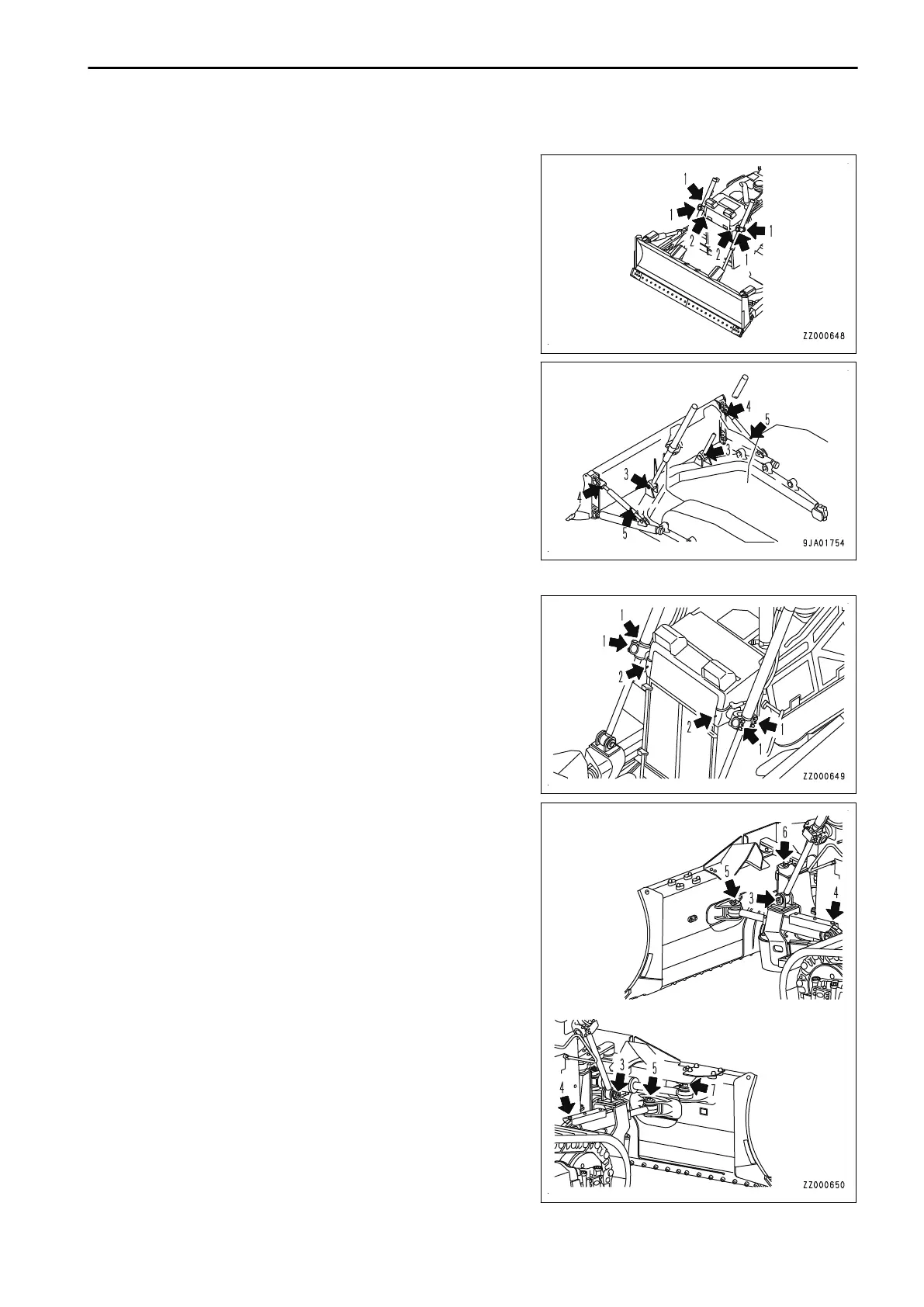

Lubricating points of angle dozer
(1) Lift cylinder support yoke (4 places)
(2) Lift cylinder support shaft (2 places)
(3) Lift cylinder ball joint (2 places)
(4) Tilt brace ball joint (1 places)
(5) Tilt brace thread (2 places)
Lubricating points of power angle power tilt dozer
(1) Lift cylinder support yoke (4 places)
(2) Lift cylinder support shaft (2 places)
(3) Lift cylinder head pin (2 places)
(4) Angle cylinder bottom pin (2 place)
(5) Angle cylinder head pin (2 places)
(6) Tilt cylinder bottom pin (1 place)
(7) Tilt cylinder head pin (1 place)
MAINTENANCE MAINTENANCE PROCEDURE
4-55
