TROUBLESHOOTING E-3

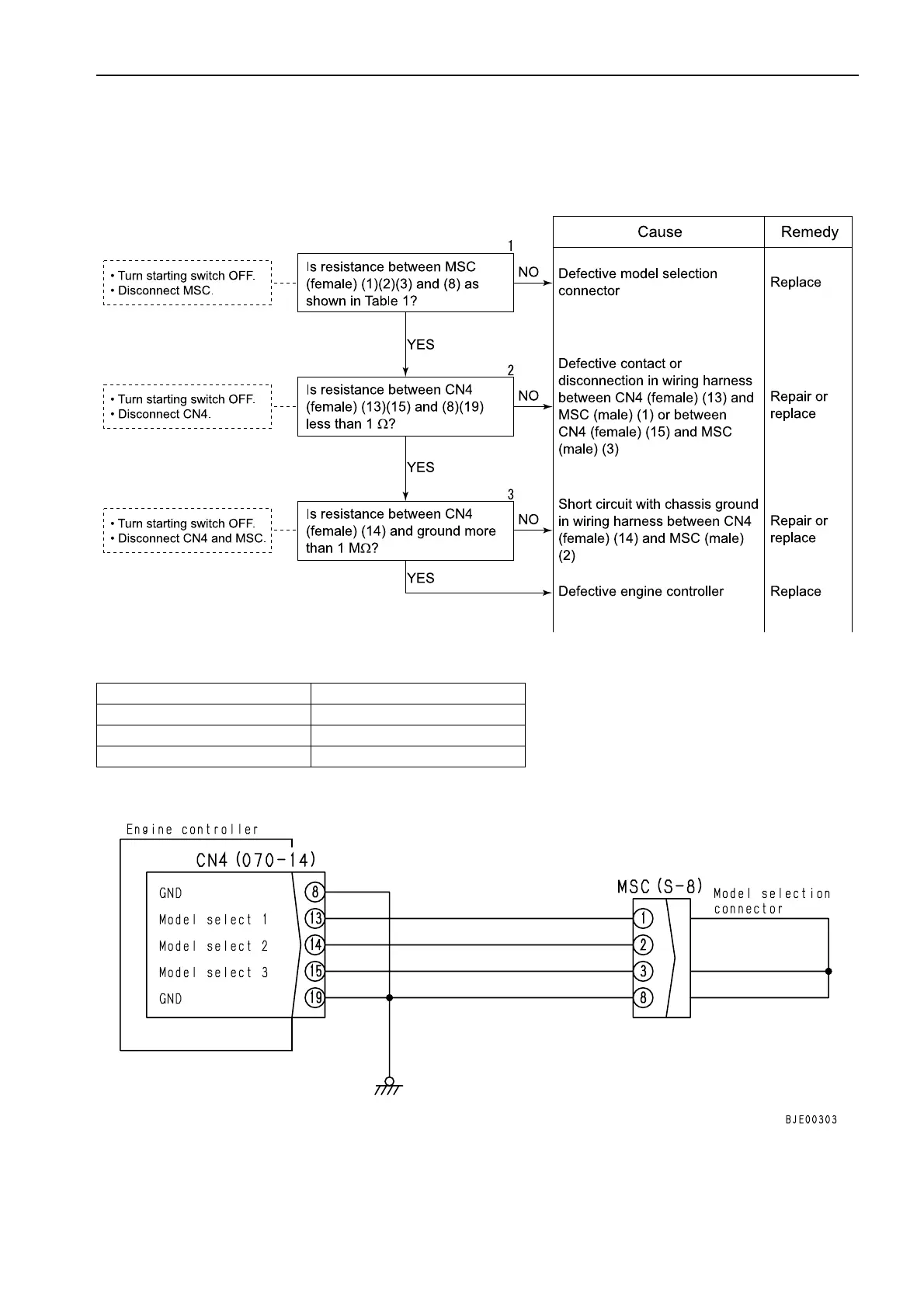

E-3 Error code [E-20] [Abnormality in model selection system]
★ The troubleshooting given below takes a particular machine as an example, so the content of the
troubleshooting and the electric wiring diagrams will differ according to the actual model of machine.
Table 1
E-3 Related electrical circuit diagram
MSC (female) Resistance value
Between (1) and (8) Max. 1 Ω
Between (2) and (8) Min. 1 MΩ
Between (3) and (8) Max. 1 Ω
To Next Page
