MAINTENANCE WORK ON FRAME AND ENGINE 106
100689-10

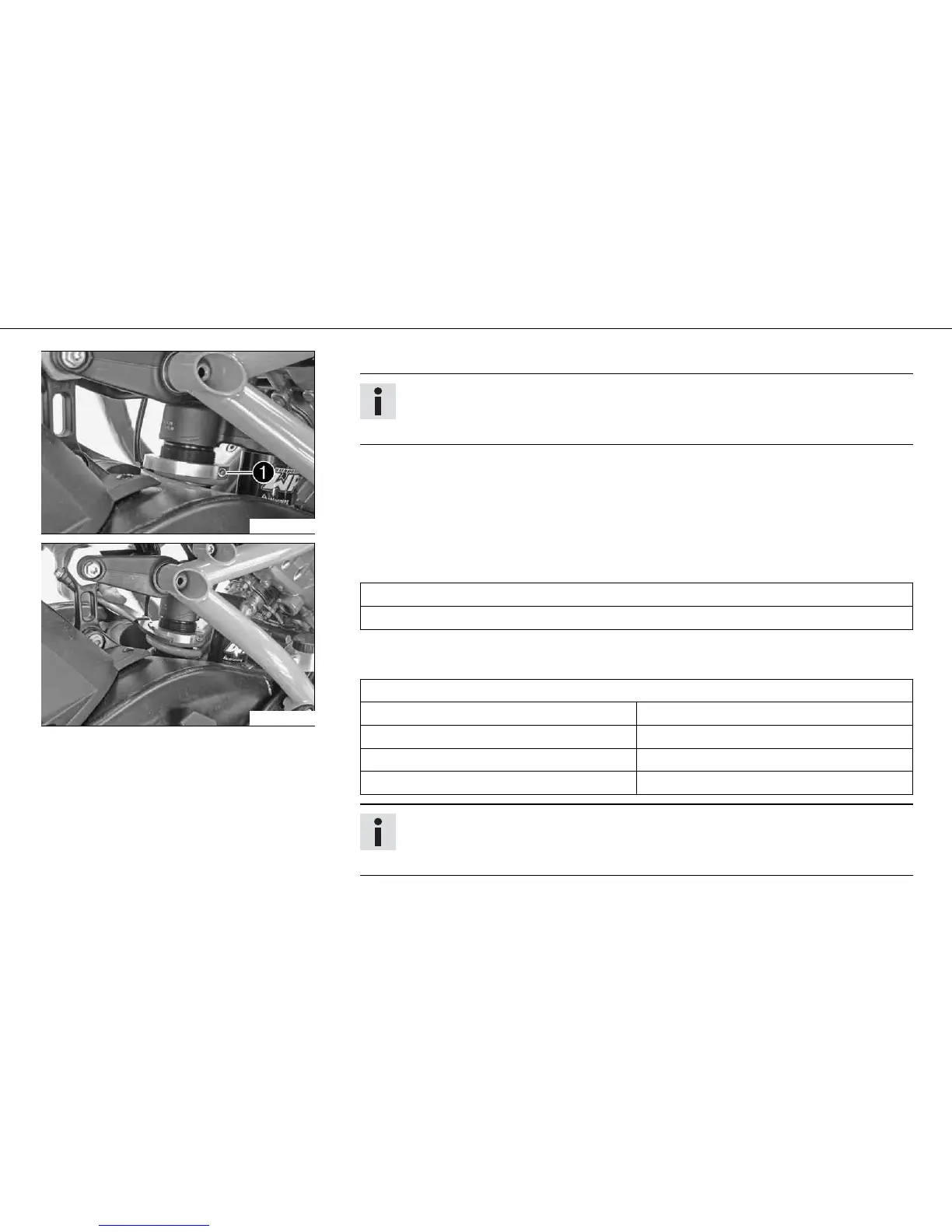

– Take the weight off the rear wheel and swingarm.
Info
The spring preload can be adjusted correctly only if the rear wheel and the
swingarm are fully relieved of weight.
– Loosen screw two turns, but do not remove.
100690-01
– Turn the adjusting ring counterclockwise with the wrench from the tool kit until the
spring is no longer under tension.
Hook wrench (69012022000)
Extension (60012060000)
– Turn the adjusting ring clockwise and tension it to the specified value.
Guideline
Spring preload
Comfort 6 mm (0.24 in)
Standard 6 mm (0.24 in)
Sport 8 mm (0.31 in)
Full payload 8 mm (0.31 in)
Info
Turn clockwise to increase preload, turn counterclockwise to reduce spring
preload.
