KTM 1290 SUPER DUKE R 2021 User Manual

ERGONOMICS 8
65
Guideline
Screw, step
plate for foot
brake lever
M6 10 Nm (7.4 lbf ft)
Loctite
®
243™

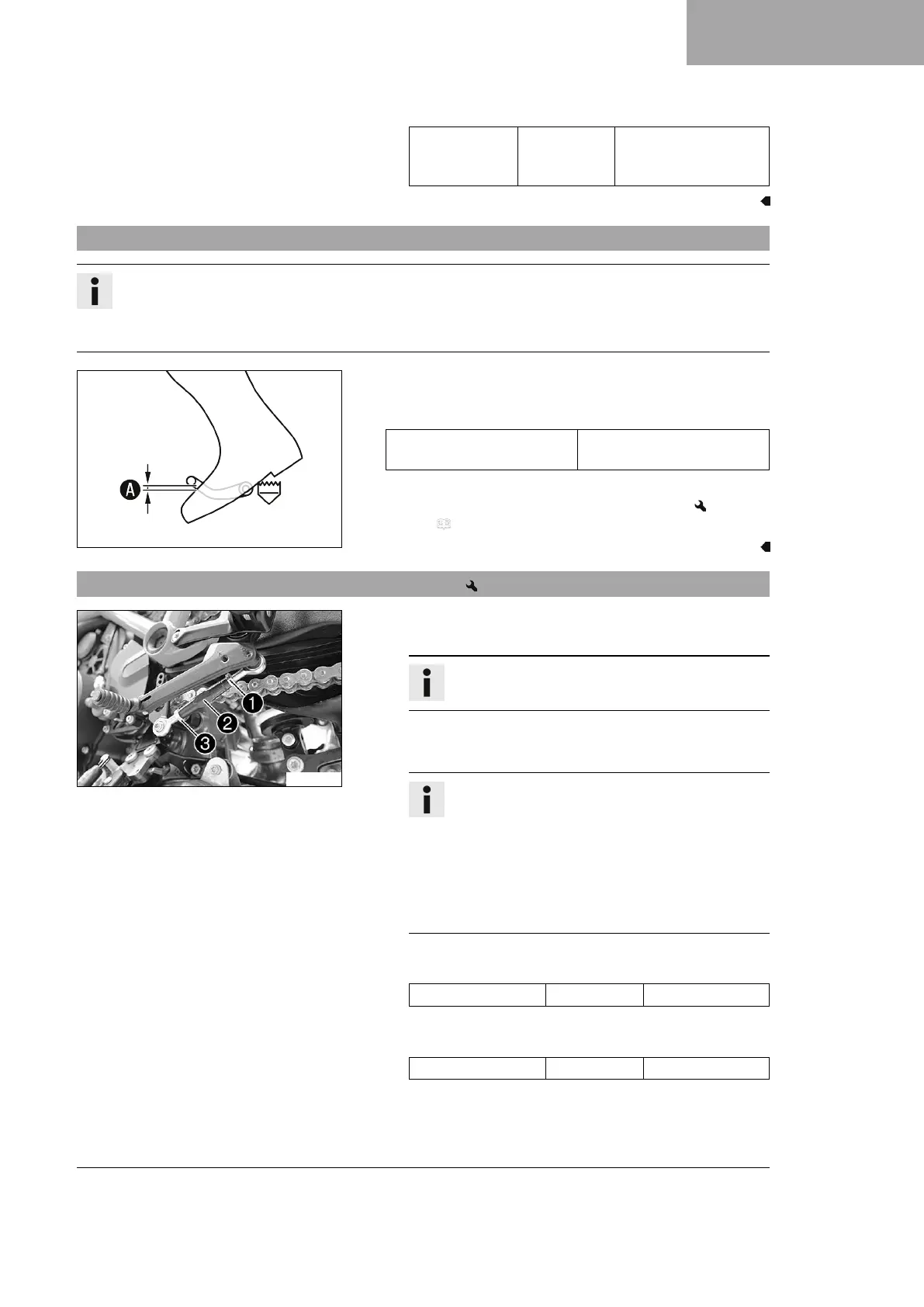

8.6 Checking the basic position of the shift lever
Info
When driving, the shift lever must not touch the rider's boot when in the basic position.
If the shift lever is permanently touching the boot, the transmission will be subject to excessive load; this
can cause a malfunction of the quickshifter.
400692-10
– Sit on the vehicle in the riding position and determine
distance
A
between the upper edge of your boot and the shift
lever.
Distance between shift lever
and upper edge of boot
10 … 20 mm (0.39 …
0.79 in)
» If the distance does not meet specifications:
– Adjust the basic position of the shift lever.
( p. 65)
8.7 Adjusting the basic position of the shift lever
S03895-10
(SUPER DUKE R)
–
Loosen nut
1
while holding stud
2
.
Info
Nut
1
has an LH thread.
–
Loosen nut
3
while holding stud
2
.
–
Turn stud
2
to adjust the shift lever.
Info
The range of adjustment is limited.
The shift lever must not come into contact with any
other vehicle components during the shift proce-
dure.
The shift linkage must be correctly adjusted in both
footrest positions to ensure correct functioning of
the shift mechanism.
–
Tighten nut
3
while holding stud
2
.
Guideline
Nut, shift rod M8 12 Nm (8.9 lbf ft)
–
Tighten nut
1
while holding stud
2
.
Guideline
Nut, shift rod M8LH 12 Nm (8.9 lbf ft)

KTM 1290 SUPER DUKE R 2021 Specifications

General

Displacement	1301 cc
Transmission	6-speed
Rear Suspension	WP APEX monoshock, fully adjustable
Seat Height	835 mm
Fuel Tank Capacity	16 liters
Dry Weight	189 kg
Bore x Stroke	108 mm x 71 mm
Compression Ratio	13.5:1
Fuel System	Electronic fuel injection
Lubrication	Forced oil lubrication with 3 oil pumps
Wheelbase	1482 mm
Traction Control	MTC (Motorcycle Traction Control), lean-angle sensitive
Engine Type	V-Twin, 4-stroke
Power	180 hp
Torque	140 Nm @ 8000 rpm
Frame	Chromium-Molybdenum steel frame, powder coated
Front Suspension	WP APEX 48
Front Brake	320 mm discs
Rear Brake	Brembo two-piston caliper, 240 mm disc
Clutch	PASC slipper clutch, hydraulically actuated
ABS	Bosch 9.1 MP (incl. Cornering ABS and Supermoto mode)
