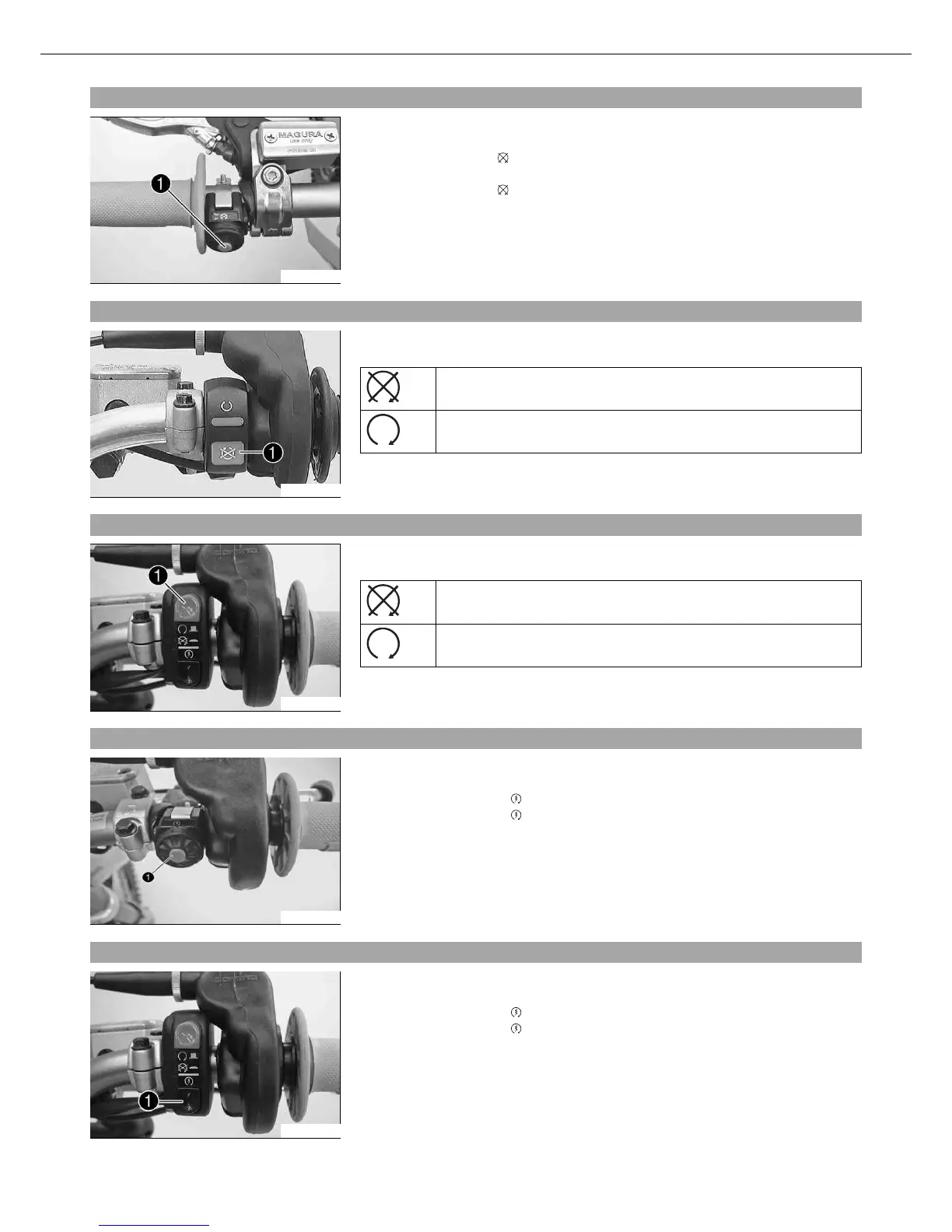

CONTROLS 13
5.5Short circuit button (XC‑W/XC)
B00002-10
Short circuit button is fitted on the left side of the handlebar.
Possible states
• Short circuit button in basic position – In this position, the ignition circuit is
closed, and the engine can be started.
• Short circuit button pressed – In this position, the ignition circuit is interrupted,
a running engine stops, and a non-running engine will not start.
5.6Emergency OFF switch (200 EXC AUS)
B00087-10
The emergency OFF switch is fitted on the right side of the handlebar.
Possible states
Ignition off – In this position, the ignition circuit is interrupted, a run-
ning engine stops, and a non-running engine will not start.
Ignition on – In this position, the ignition circuit is closed, and the
engine can be started.
5.7Emergency OFF switch (250/300 EXC AUS)
B00079-10
The emergency OFF switch is fitted on the right side of the handlebar.
Possible states
Ignition off – In this position, the ignition circuit is interrupted, a run-
ning engine stops, and a non-running engine will not start.
Ignition on – In this position, the ignition circuit is closed, and the
engine can be started.
5.8Electric starter button (300 EXC EU, 300 EXC SIX DAYS, 250/300 XC-W, 250/300 XC)
B00080-10
The electric starter button is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position
• Electric starter button pressed – In this position, the electric starter is actuated.
5.9Electric starter button (250/300 EXC AUS)
B00081-10
The electric starter button is fitted on the right side of the handlebar.
Possible states
• Electric starter button in basic position
• Electric starter button pressed – In this position, the electric starter is actuated.
