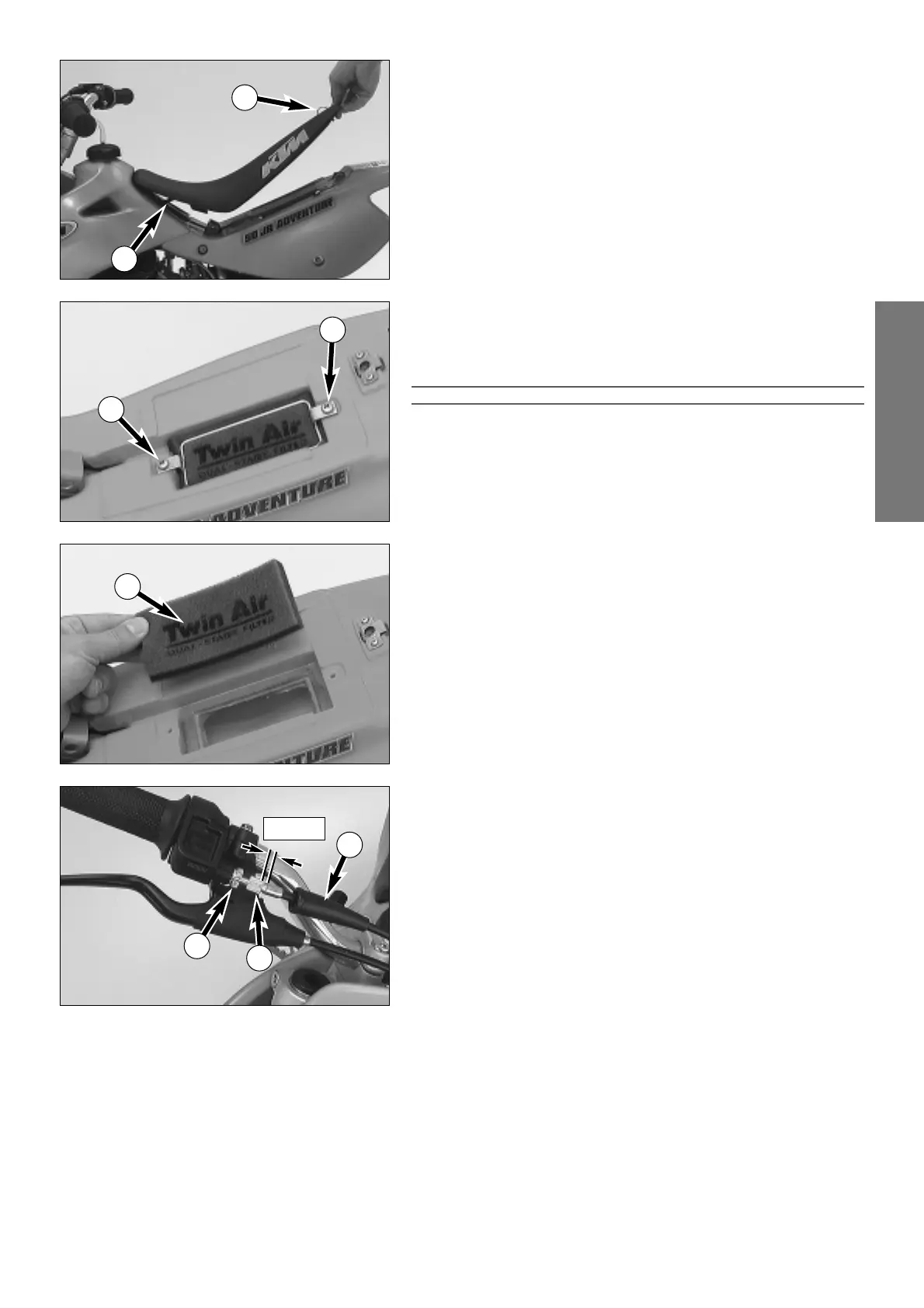

Removing the seat
The quick-release mechanism 1 allows removal of the seat without tools.
Turn the quick-release device approximately 180° anticlockwise, lift the rear
portion of the seat and pull the seat off backwards.
When mounting the seat ensure that the hook
2 engages at the tank.
Cleaning the air filter *
The air filter must be cleaned at intervals depending on the amount of dust
accumulated. To clean the air filter, first remove the seat. Then remove the
two screws
3, the filter holder and the air filter 4. The air filter consists of
a foam rubber insert soaked with filter oil.
!
CAUTION
!
–D
O NOT CLEAN FOAM FILTER WITH FUEL OR PETROLEUM SINCE THESE WILL DAMAGE
THE FOAM
. KTM RECOMMENDS THE PRODUCTS MADE BY PUTOLINE FOR AIR FIL-
TER MAINTENANCE.„ACTION CLEANER” FOR CLEANING PURPOSES AND „ACTION
FLUID” TO OIL THE FOAM FILTER.
–NEVER OPERATE YOUR MOTORCYCLE WITHOUT AIR FILTER
. OTHERWISE, DUST AND
DIRT MAY GET INTO THE ENGINE AND LEAD TO INCREASED WEAR
.
–T
HE HOLDER MUST RETAIN THE AIR FILTER THROUGHOUT ITS ENTIRE CIRCUMFEREN-
CE
. IF THE FILTER HAS BEEN MOUNTED INCORRECTLY
, THE ENGINE WILL TAKE IN UNFIL-
TERED AIR, THEREBY CAUSING INCREASED ENGINE WEAR.
Thoroughly wash the foam filter in special cleaning fluid and allow it to dry
well. Only press out the filter, do not wring it out under any circumstances.
Oil the dry foam filter with a high-grade filter oil. Also clean the air filter
box. Check carburetor collar for damage and that it is filled correctly.
Insert the air filter in the opening and fasten it with the filter holder. Then
mount the seat.
Adjusting the throttle cable *
There must always be a 3-5 mm (0.1-0.2 in) play in the throttle cable. To
check this, move back the protective cover
5 on the throttle grip. You must
be able to lift the outer covering of the cable 3-5 mm from the adjusting
screw
7, until resistance is felt.
To adjust, loosen the counter nut
6 and turn the adjusting screw accor-
dingly. Finally tighten counter nut and slide the protective cover back on.
3
3
4
1
2
3-5 mm
5
6
7
