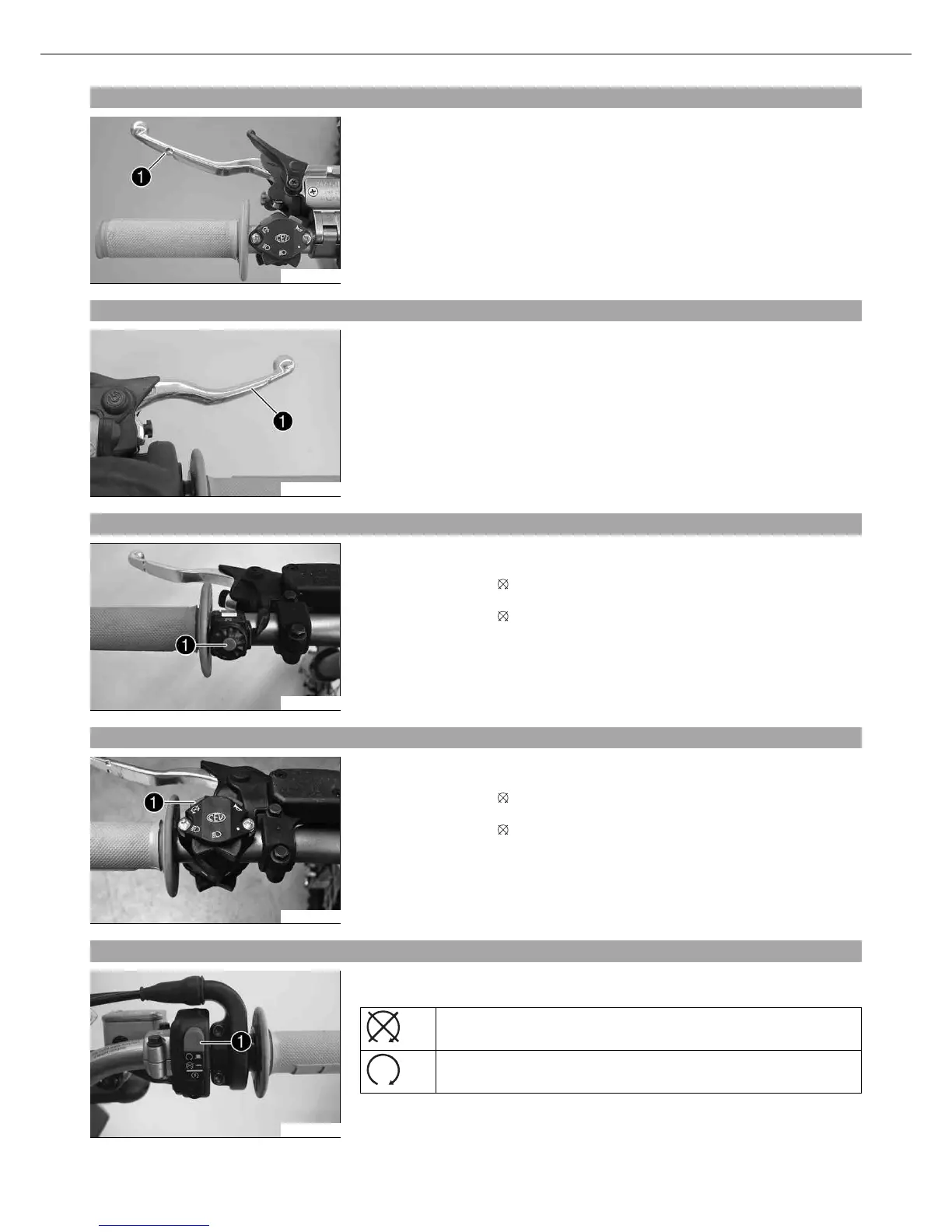

CONTROLS 12
5.1Clutch lever
600659-10
The clutch lever is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
5.2Hand brake lever
400196-10
Hand brake lever is located on the right side of the handlebar.
The hand brake lever is used to activate the front brake.
5.3Short circuit button (XCF‑W, SX‑F)
500132-10
The short circuit button is fitted on the left side of the handlebar.
Possible states
• Short circuit button in basic position – In this position, the ignition circuit is
closed, and the engine can be started.
• Short circuit button pressed – In this position, the ignition circuit is interrupted,
a running engine stops, and a non-running engine will not start.
5.4Short circuit button (EXC-F, EXC‑F SIX DAYS)
500134-10
The short circuit button is fitted on the left side of the handlebar.
Possible states
• Short circuit button in basic position – In this position, the ignition circuit is
closed, and the engine can be started.
• Short circuit button pressed – In this position, the ignition circuit is interrupted,
a running engine stops, and a non-running engine will not start.
5.5Emergency OFF switch (EXC‑F AUS)
500131-10
The emergency OFF switch is fitted on the right side of the handlebar.
Possible states
Ignition off – In this position, the ignition circuit is interrupted, a run-
ning engine stops, and a non-running engine will not start.
Ignition on – In this position, the ignition circuit is closed, and the
engine can be started.
