SERVICE WORK ON THE CHASSIS 11
59
A00724-10
(XC‑F US KAILUB RUSSELL)

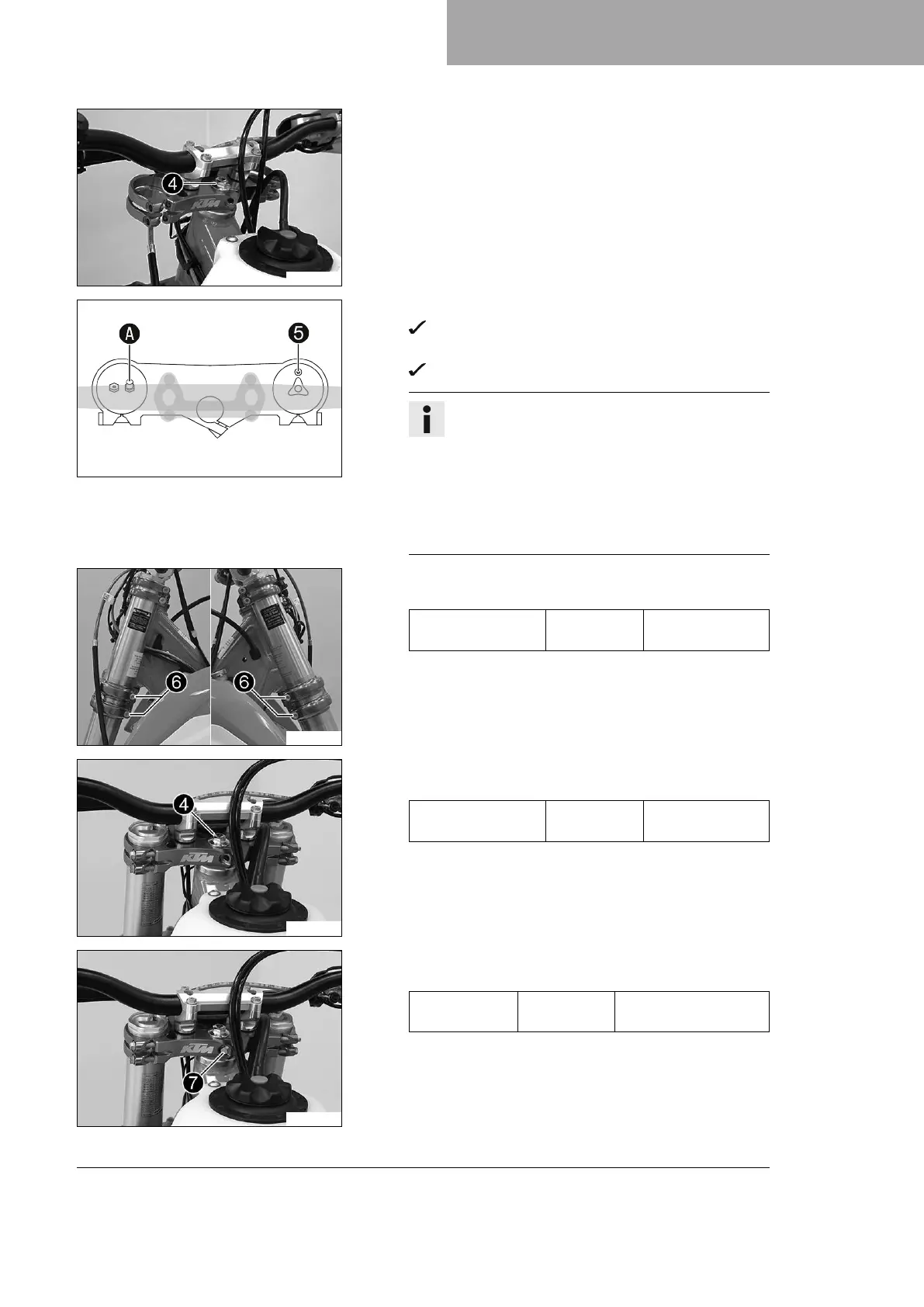

– Position the upper triple clamp with the handlebar.
–
Mount screw
4
, but do not tighten yet.
H01182-11
–
Position the fork legs.
Air bleeder screw
5
of the right fork leg is positioned
to the front.
Valve
A
of the left fork leg faces the front.
Info
Grooves are milled into the side of the upper end of
the fork legs. The second milled groove (from the
top) must be flush with the upper edge of the upper
triple clamp.
The air suspension is located in the left fork leg.
The pressure and rebound damping is located in
the right fork leg.
A00725-10
–
Tighten screws
6
.
Guideline
Screw, bottom
triple clamp
M8 12 Nm (8.9 lbf ft)
A00729-10
–
Tighten screw
4
.
Guideline
Screw, top steering
head
M20x1.5 12 Nm (8.9 lbf ft)
A00729-11
–
Mount and tighten screw
7
.
Guideline
Screw, top
steering stem
M8 20 Nm (14.8 lbf ft)
Loctite
®
243™
