SERVICE WORK ON THE CHASSIS 11
73
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
A00720-10
(XC‑F US KAILUB RUSSELL)
– Position the main silencer.
–
Mount screws
1
with the washers, but do not tighten yet.
–
Attach spring
2
.
Spring hook (50305017000C1)
–
Tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)

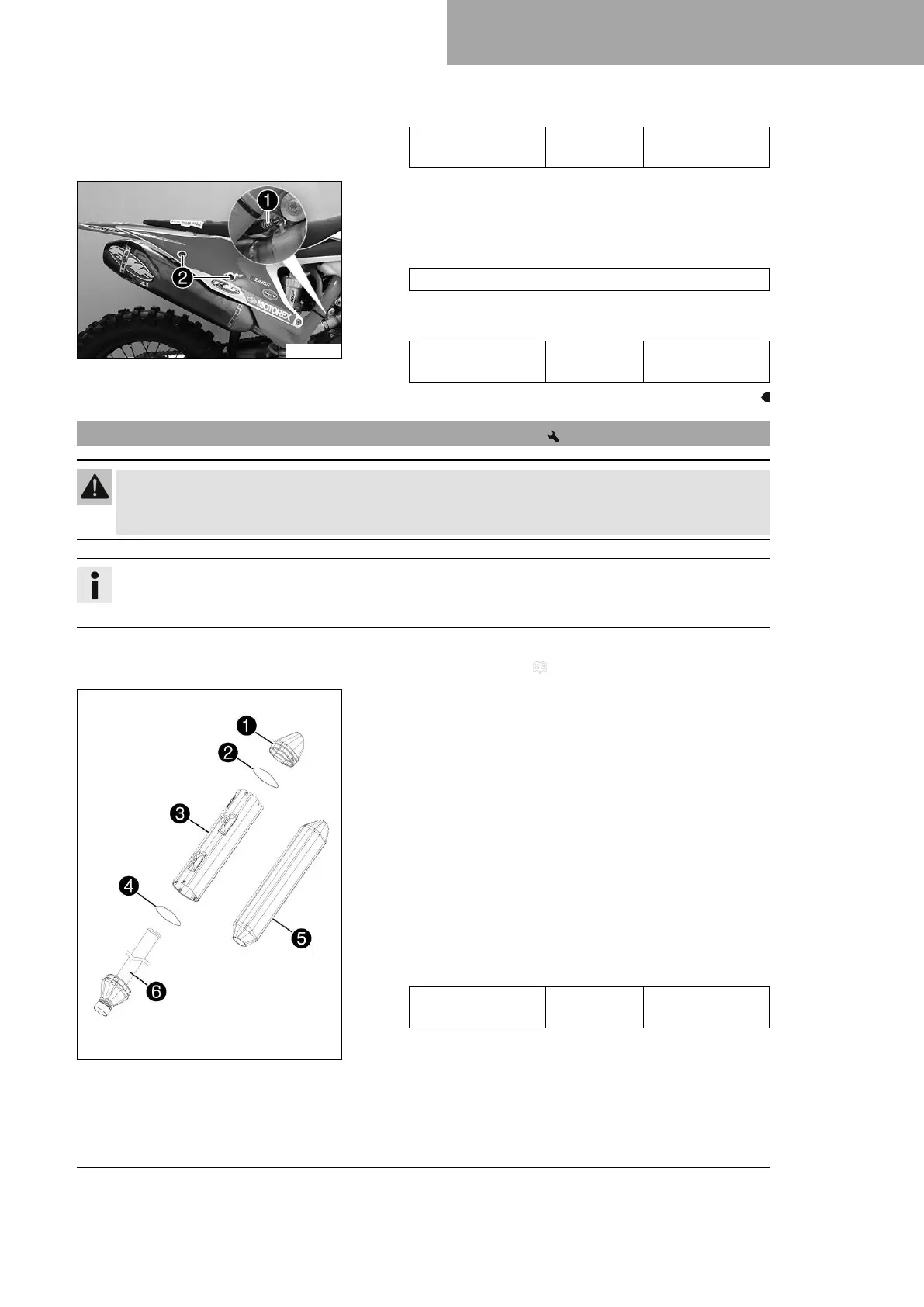

11.32 Changing the glass fiber yarn filling of the main silencer
Warning
Danger of burns The exhaust system gets very hot when the vehicle is driven.
– Allow the exhaust system to cool down before performing any work on the vehicle.
Info
Over time, the fibers of the glass fiber yarn escape and the damper “burns” out.
Not only is the noise level higher, but the performance characteristics change.
Preparatory work
– Remove main silencer. ( p. 71)
311691-10
Main work
(SX‑F US)
– Remove all the screws on the main silencer.
–
Take off silencer cap
1
and O-ring
2
.
–
Take off outer tube
3
and O-ring
4
.
–
Pull glass fiber yarn filling
5
off of inner tube
6
.
– Clean the parts that need to be reinstalled and check for
damage.
–
Mount new glass fiber yarn filling
5
on inner tube
6
.
–
Slide O-ring
4
and outer tube
3
over glass fiber yarn
filling
5
.
–
Insert O-ring
2
and silencer cap
1
into outer tube
3
.
– Mount and tighten all of the screws.
Guideline
Screws on main
silencer
M5 7 Nm (5.2 lbf ft)
