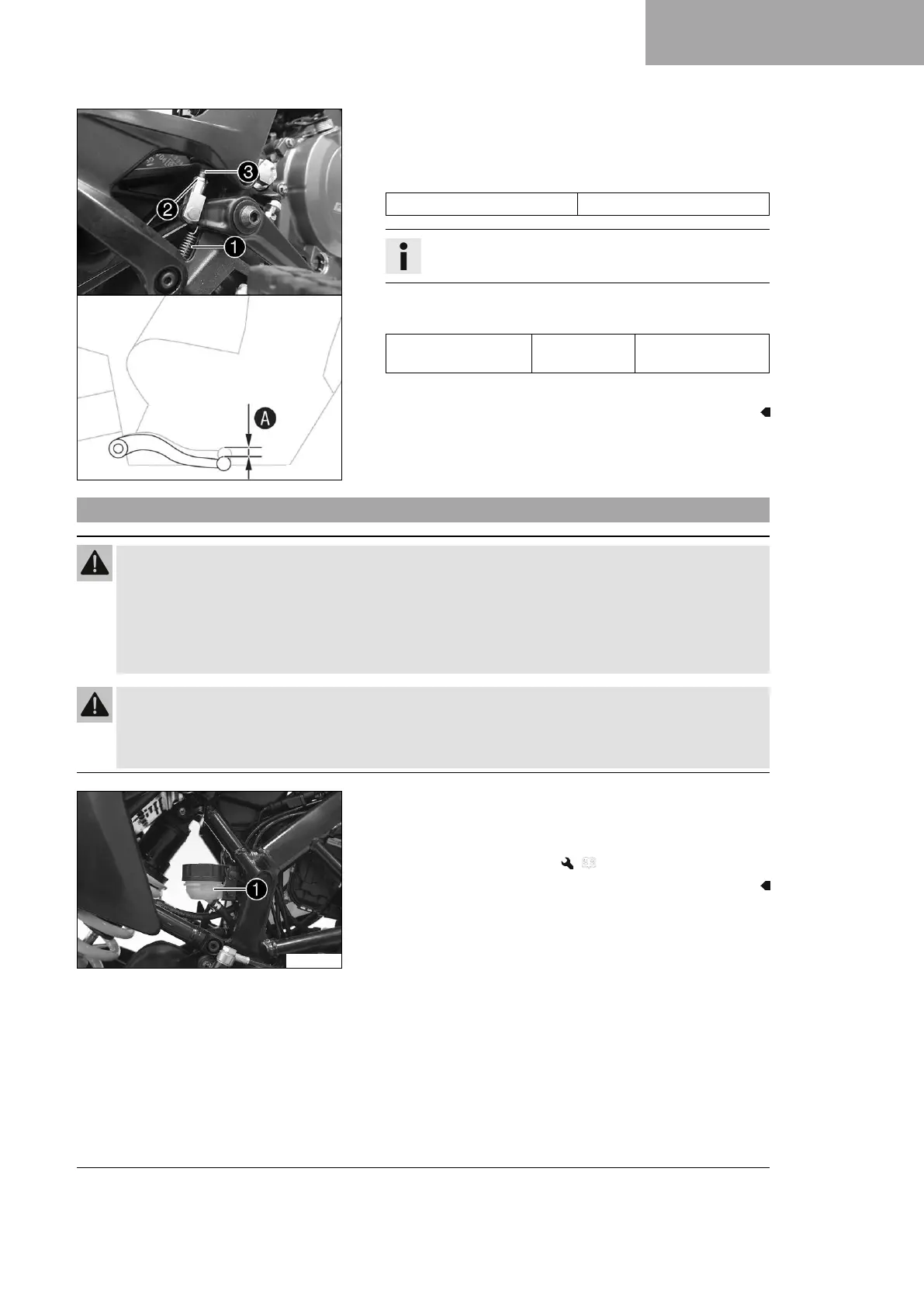

BRAKE SYSTEM 14
77
A00708-10
–
Detach spring
1
.
–
Release nut
2
and use screw
3
to adjust the specified free
travel
A
.
Guideline
Free travel at foot brake lever 3 … 5 mm (0.12 … 0.2 in)
Info
The range of adjustment is limited.
–
Hold screw
3
and tighten nut
2
.
Guideline
Remaining screws,
chassis
M6 9 Nm (6.6 lbf ft)
–
Attach spring
1
.
14.8 Checking the rear brake fluid level
Warning
Danger of accidents An insufficient brake fluid level will cause the brake system to fail.
If the brake fluid level drops below the MIN marking, the brake system is leaking or the brake linings are
worn down.
– Check the brake system and do not continue riding until the problem is eliminated. (Your authorized
KTM workshop will be glad to help.)
Warning
Danger of accidents Old brake fluid reduces the braking effect.
– Make sure that brake fluid for the front and rear brake is changed in accordance with the service
schedule. (Your authorized KTM workshop will be glad to help.)
S04148-10
– Stand the vehicle upright.
– Check the brake fluid level in the brake fluid reservoir.
»
If the fluid level reaches the MIN marking
1
:
– Add rear brake fluid. ( p. 78)
