30/ASSEMBLING THE ENGINE 148
300158-10

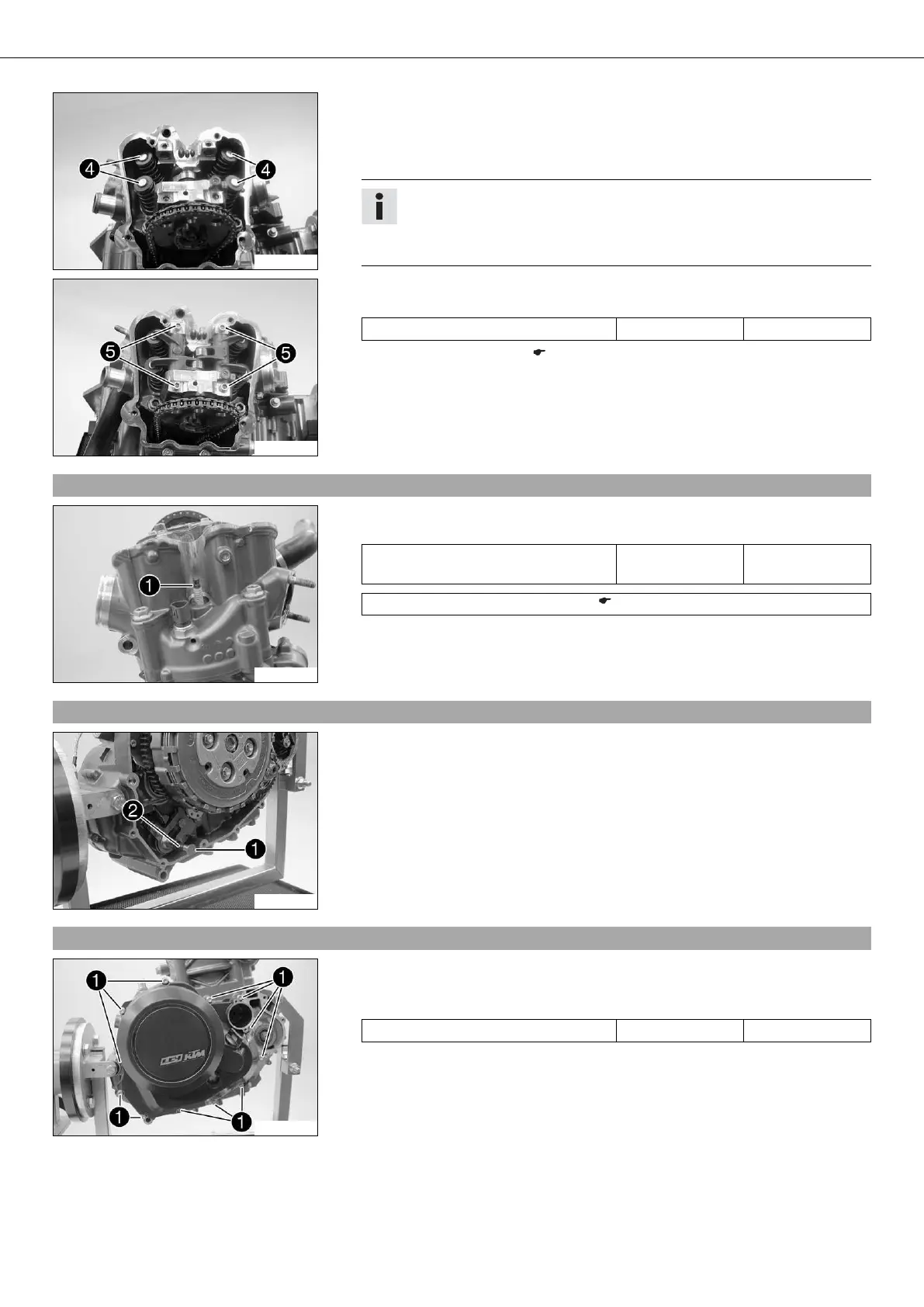

– Remove shims  and set them down according to the installation position.
– Correct the shims as indicated by the results of the valve clearance check.
– Insert suitable shims.
– Position the rocker arms and push in the rocker arm shafts.
Info
Make sure that the tapped hole of the rocker arm shaft is positioned facing
outwards.
The small drill hole and the flat surface must point upwards.
300156-11
– Install and tighten the screws  of the rocker arm shafts.
Guideline
Screw, rocker arm shaft M6 12 Nm (8.9 lbf ft)
– Check the valve clearance. ( p. 147)
20.23Installing spark plug
300016-11
– Mount and tighten the spark plug  using the special tool.
Guideline
Spark plug M12x1.25 17 Nm
(12.5 lbf ft)
Spark plug wrench (75029172000) ( p. 219)
20.24Installing spacer and spring
300154-10
– Install the spacer  and spring  of the shift shaft.
20.25Installing clutch cover
300015-11
– Mount the dowels. Put on the clutch cover seal.
– Position the clutch cover. Mount and tighten screws .
Guideline
Screw, clutch cover M6 10 Nm (7.4 lbf ft)
