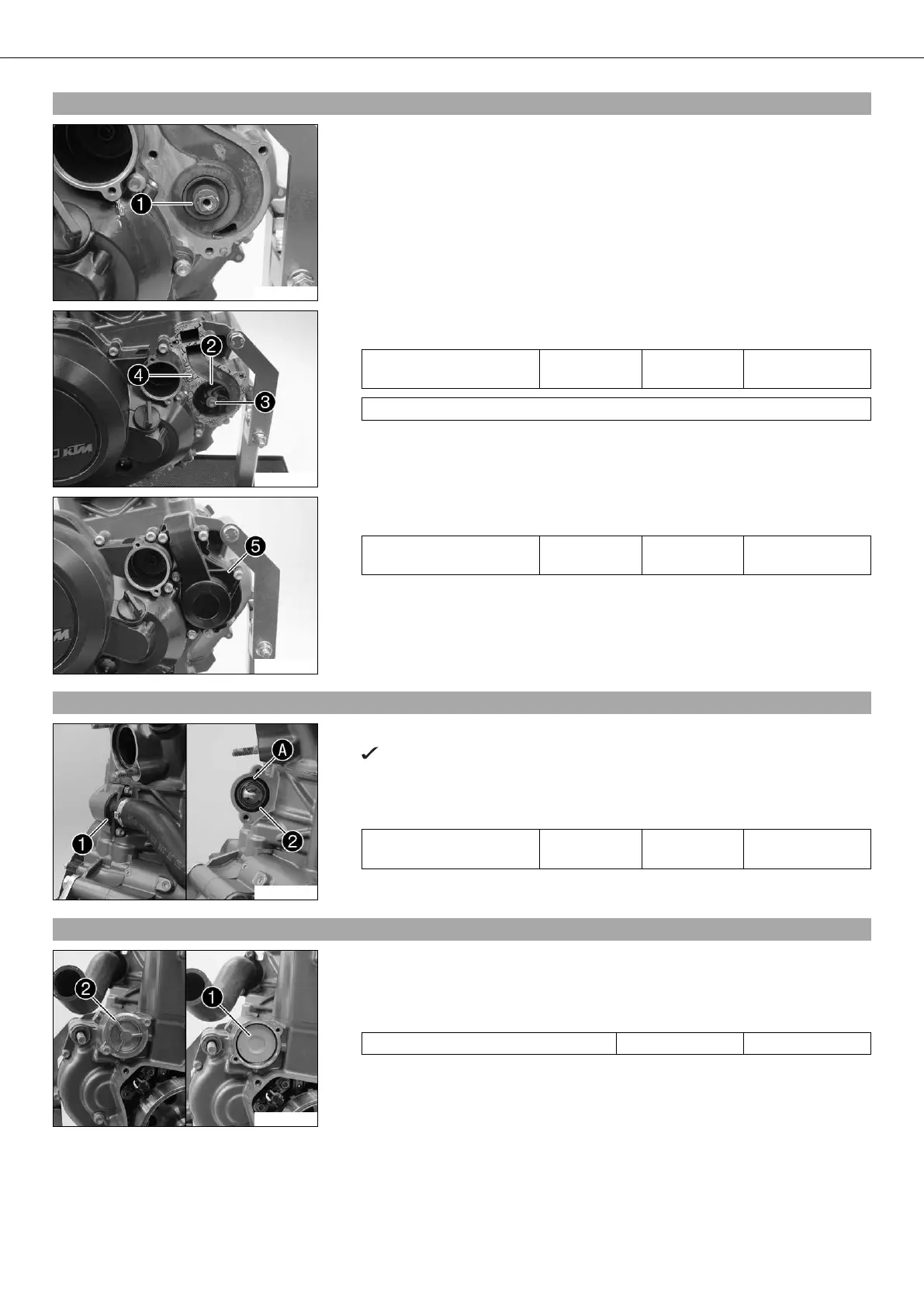

30/ASSEMBLING THE ENGINE 162
20.26Mounting water pump cover
300014-11
– Push on the shaped washer .
300013-12
– Attach the water pump wheel . Mount and tighten screw
Guideline
Screw, water pump wheel M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
Loctite
®
243™
– Lay on the water pump cover seal .
300012-12
– Put on the water pump cover . Mount and tighten screws.
Guideline
Screw, water pump wheel M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
20.27Installing thermostat
300010-11
– Position the thermostat with the gasket.
The drill hole must face upward.
– Install the thermostat case with the radiator hose.
– Mount and tighten the screws.
Guideline
Screw, thermostat housing M6 10 Nm
(7.4 lbf ft)
Loctite
®
243™
20.28Installing the oil filter
300009-11
– Insert the oil filter .
– Lubricate the O-ring of the oil filter cover. Install the oil filter cover .
– Mount and tighten the screws.
Guideline
Screw, oil filter cover M5 6 Nm (4.4 lbf ft)
