KTM 690 Enduro R User Manual

11 SERVICE WORK ON THE CHASSIS 84
Info

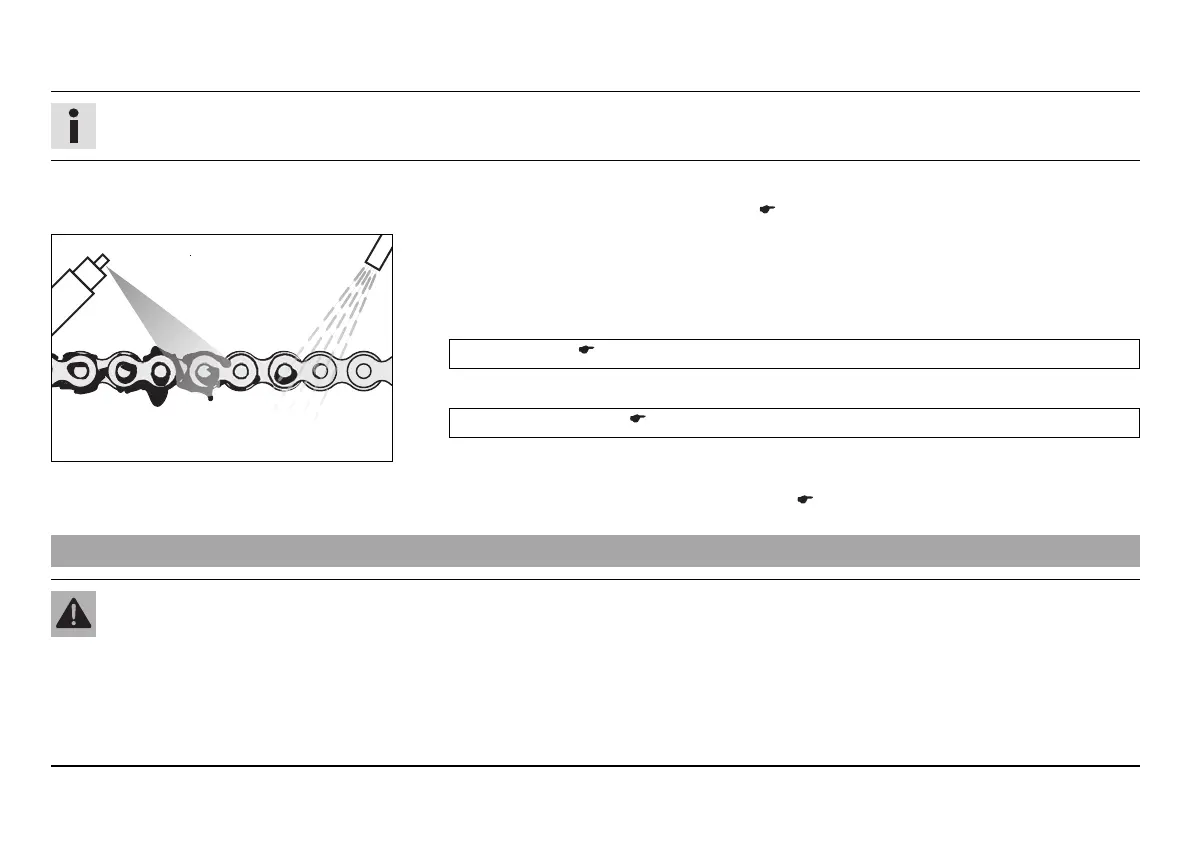

The service life of the chain depends largely on its maintenance.
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 74)
400725-01
Main work
– Clean the chain regularly.
– Rinse off loose dirt with a soft jet of water.
– Remove old grease remains with chain cleaner.
Chain cleaner ( p. 198)
– After drying, apply chain spray.
Off-road chain spray ( p. 198)
Finishing work
– Remove the motorcycle from the lift stand. ( p. 74)
11.14 Checking the chain tension
Warning
Danger of accidents Danger caused by incorrect chain tension.
– If the chain is too taut, the components of the secondary power transmission (chain, engine sprocket, rear sprocket, bearings in
the transmission and in the rear wheel) will be under additional load. In addition to premature wear, this can cause the chain
or the countershaft of the transmission to break in extreme cases. If the chain is too loose, however, it may fall off the engine
sprocket or rear sprocket and block the rear wheel or damage the engine. Ensure that the chain tension is correct and adjust it
if necessary.

KTM 690 Enduro R Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Torque	73.5 Nm @ 6, 500 rpm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Primary Drive	40:76
Suspension Travel Front	250 mm
Suspension Travel Rear	250 mm
Wheels Front	1.85 x 21"
Wheels Rear	2.50 x 18"
Tires Front	90/90-21
Tires Rear	140/80-18
Chain	X-Ring 5/8 x 1/4"
Seat Height	910 mm
Fuel Tank Capacity	13.5 l
Dry Weight	146 kg
Power	74 hp (55 kW) @ 8, 000 rpm
Fuel System	Keihin EFI (Electronic Fuel Injection)
Clutch	hydraulically actuated
Frame	Chrome-molybdenum steel trellis frame, powder coated
Front Suspension	WP XPLOR USD, Ø 48 mm
Rear Suspension	WP XPLOR
Front Brake	Brembo
Rear Brake	Brembo single piston caliper, 240 mm disc
ABS	Bosch 9.1 MP (disengageable)
Wheelbase	1, 502 mm ± 10 mm
