KTM 690 Enduro R User Manual

11 SERVICE WORK ON THE CHASSIS 87
B01954-10

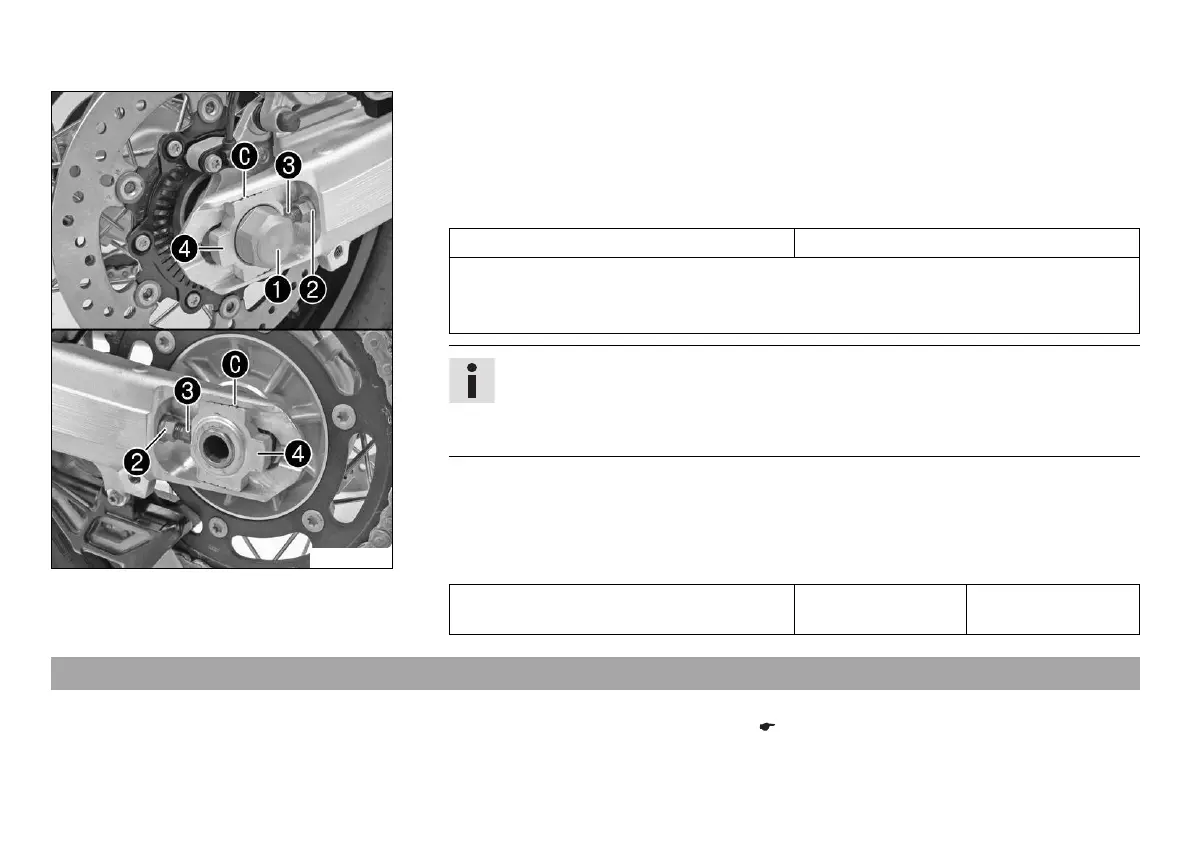

Main work
–
Loosen nut

.
–
Loosen nuts

.
–
Adjust the chain tension by turning adjusting screws

on the left and right.
Guideline
Chain tension 5 mm (0.2 in)
Turn adjusting screws

on the left and right so that the markings on the left and
right chain adjusters

are in the same position relative to reference marks

. The
rear wheel is then correctly aligned.
Info
The upper chain section must be taut.
Chain wear is not always even. Repeat this measurement at different chain posi-
tions.
–
Tighten nuts

.
–
Make sure that the chain adjusters

are installed correctly on adjusting screws

.
–
Tighten nut

.
Guideline
Nut, rear wheel spindle M25x1.5 90 Nm
(66.4 lbf ft)
11.16 Checking the chain, rear sprocket, engine sprocket, and chain guide
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 74)

KTM 690 Enduro R Specifications

General

Engine Type	Single cylinder, 4-stroke
Bore x Stroke	105 mm x 80 mm
Torque	73.5 Nm @ 6, 500 rpm
Compression Ratio	12.7:1
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Lubrication	Forced oil lubrication with 2 oil pumps
Primary Drive	40:76
Suspension Travel Front	250 mm
Suspension Travel Rear	250 mm
Wheels Front	1.85 x 21"
Wheels Rear	2.50 x 18"
Tires Front	90/90-21
Tires Rear	140/80-18
Chain	X-Ring 5/8 x 1/4"
Seat Height	910 mm
Fuel Tank Capacity	13.5 l
Dry Weight	146 kg
Power	74 hp (55 kW) @ 8, 000 rpm
Fuel System	Keihin EFI (Electronic Fuel Injection)
Clutch	hydraulically actuated
Frame	Chrome-molybdenum steel trellis frame, powder coated
Front Suspension	WP XPLOR USD, Ø 48 mm
Rear Suspension	WP XPLOR
Front Brake	Brembo
Rear Brake	Brembo single piston caliper, 240 mm disc
ABS	Bosch 9.1 MP (disengageable)
Wheelbase	1, 502 mm ± 10 mm
