5-11

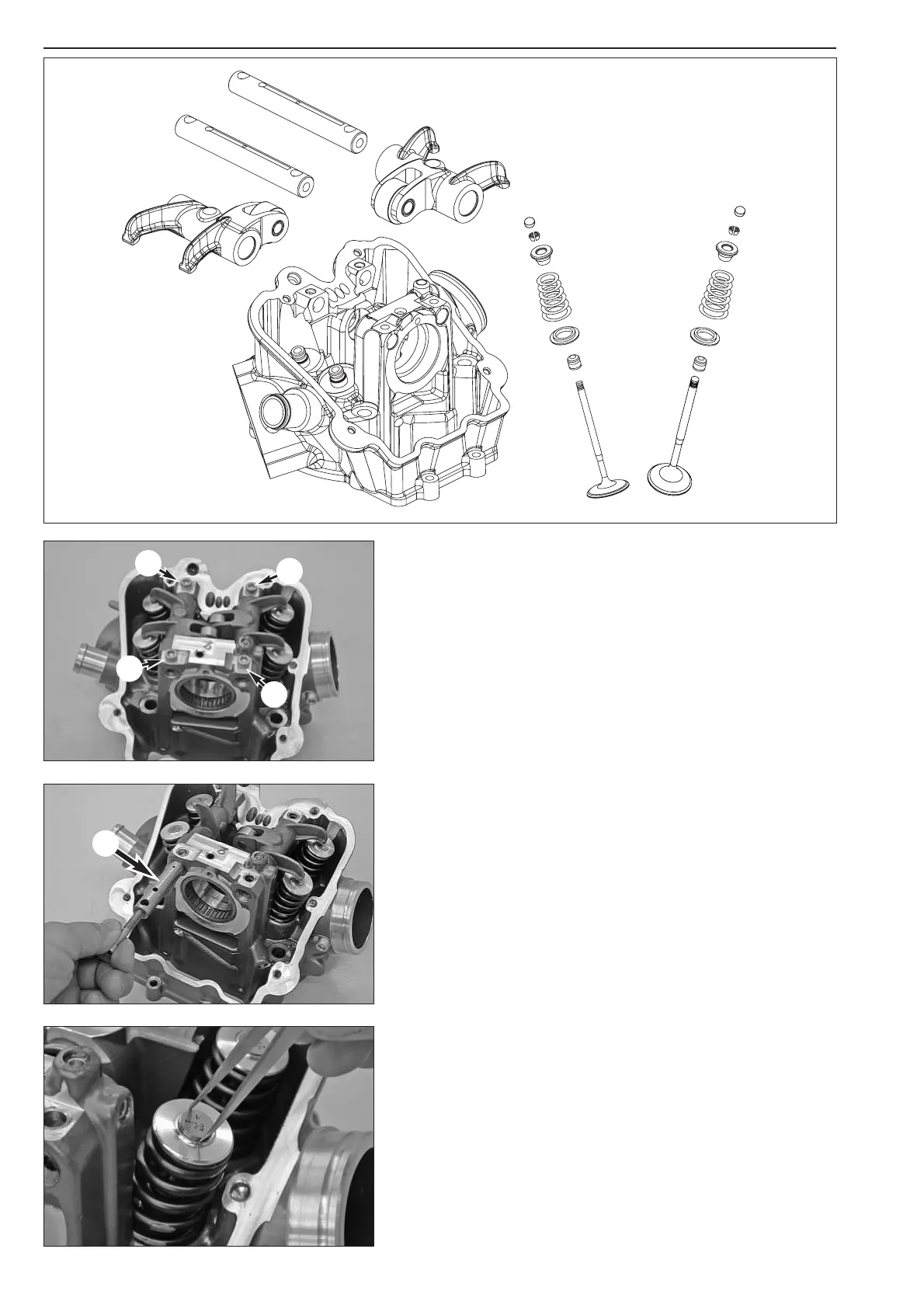

Cylinder head
– Remove all 4 screws 1 from the rocker arm shafts 2.
– Insert an M6 screw in the rocker arm shafts and pull them out of the
cylinder head; remove the rocker arms 3.
– Remove the shims
4 from the valve spring retainers 5 and lay
them aside in their mounting position.
1
1
1
1
2
2
3
3
4
4
5
5
