MAINTENANCE WORK ON CHASSIS AND ENGINE 128
100286-10
Note
Engine failure Unfiltered intake air has a negative effect on the service life of the
engine.
– Never ride the vehicle without an air filter since dust and dirt can get into the
engine and result in increased wear.
– Remove air filter.

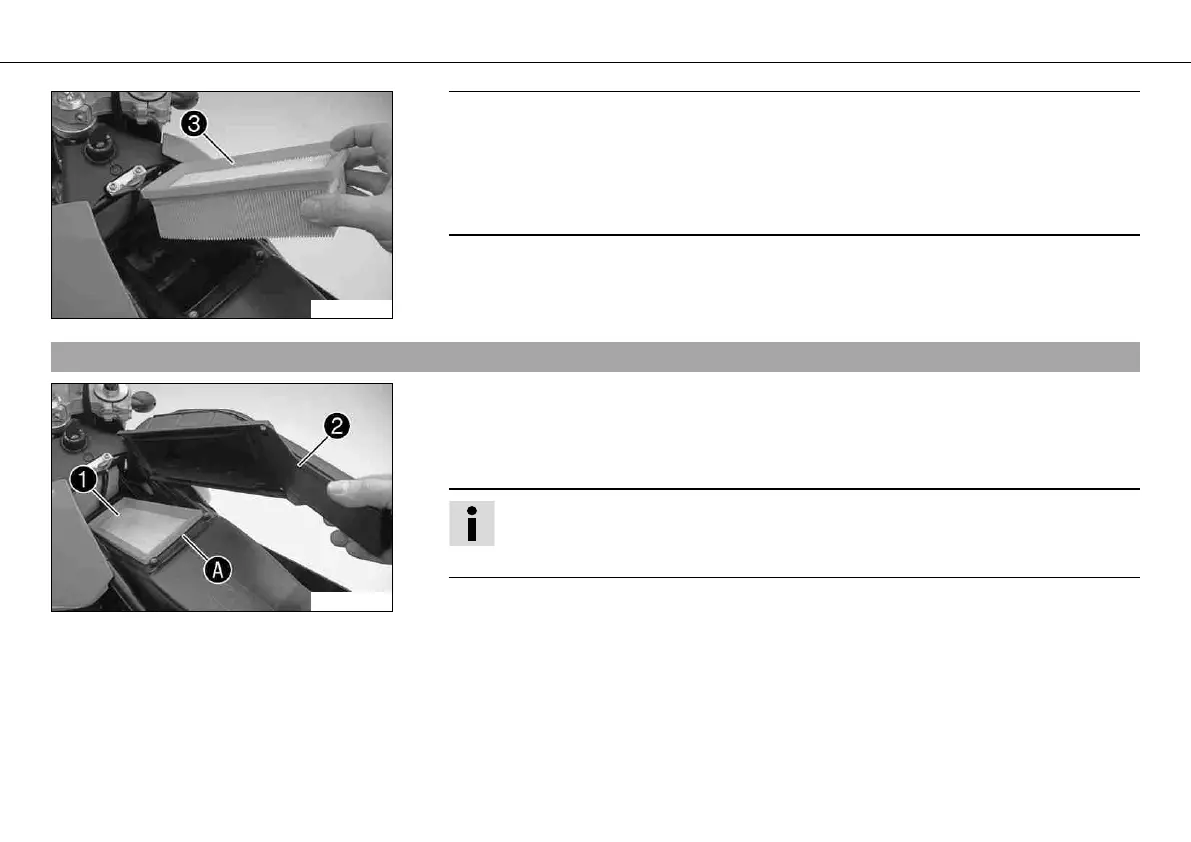

9.68Installing the air filterx
100287-10
– Check parts for damage and wear. Change damaged or worn parts. Change the air filter
if it is dirty or wet.
– Clean the air filter box.
– Mount air filter.
Info
The air filter must be in contact with the air filter box along the entire sealing
surface.
– Attach filter box top at the front of the air filter box and swing it down.

KTM 690 SMC Specifications

General

Bore x Stroke	105 mm x 80 mm
Starter	Electric starter
Transmission	6-speed
Lubrication	Forced oil lubrication with 2 oil pumps
Clutch	APTC slipper clutch, hydraulically actuated
Frame	Chromium-Molybdenum steel trellis frame, powder coated
Tires Front	120/70 ZR 17
Tires Rear	160/60 ZR 17
Steering Head Angle	63.5°
Seat Height	890 mm
Engine Type	1-cylinder, 4-stroke engine
Fuel System	Electronic fuel injection
Cooling	Liquid cooled
Front Brake	Brembo four piston radial caliper, 320 mm disc
Rear Brake	Brembo single piston caliper, 240 mm disc
Wheels Front	3.50 x 17"
Wheels Rear	5.00 x 17"
Fuel Capacity	13.5 l
Power	55 kW (74 hp)
Wheelbase	1, 480 mm ± 15 mm
