6 CONTROLS
24

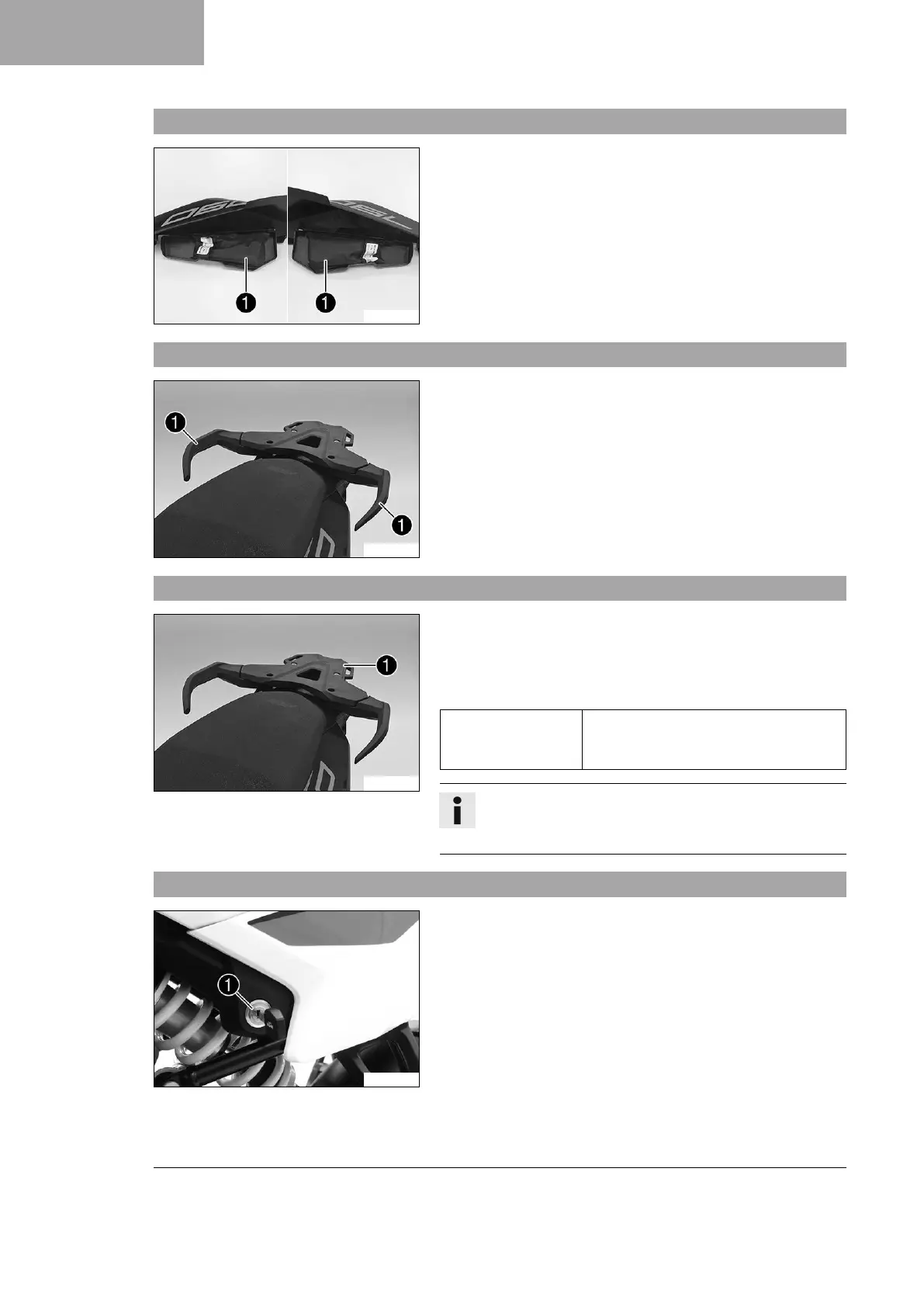

6.17 Tool set
F02016-10
The left or right storage compartment contains the on-board tool
set
1
.
6.18 Grab handles
F02017-10
The grab handles
1
are used for moving the motorcycle around.
If you carry a passenger, the passenger can hold onto the grab
handles during the trip.
6.19 Luggage rack plate
F02017-11
The luggage rack plate
1
is located behind the seat.
The base plate of a luggage system can be mounted on the lug-
gage rack plate (optional).
The luggage rack plate may not be loaded with more than the
specified weight.
Maximum permissi-
ble load on luggage
rack plate
5 kg (11 lb.)
Info
Follow the instructions provided by the luggage manufac-
turer.
6.20 Seat lock
A00664-10
Seat lock
1
is located on the left side of the vehicle.
It can be unlocked using the ignition key.
