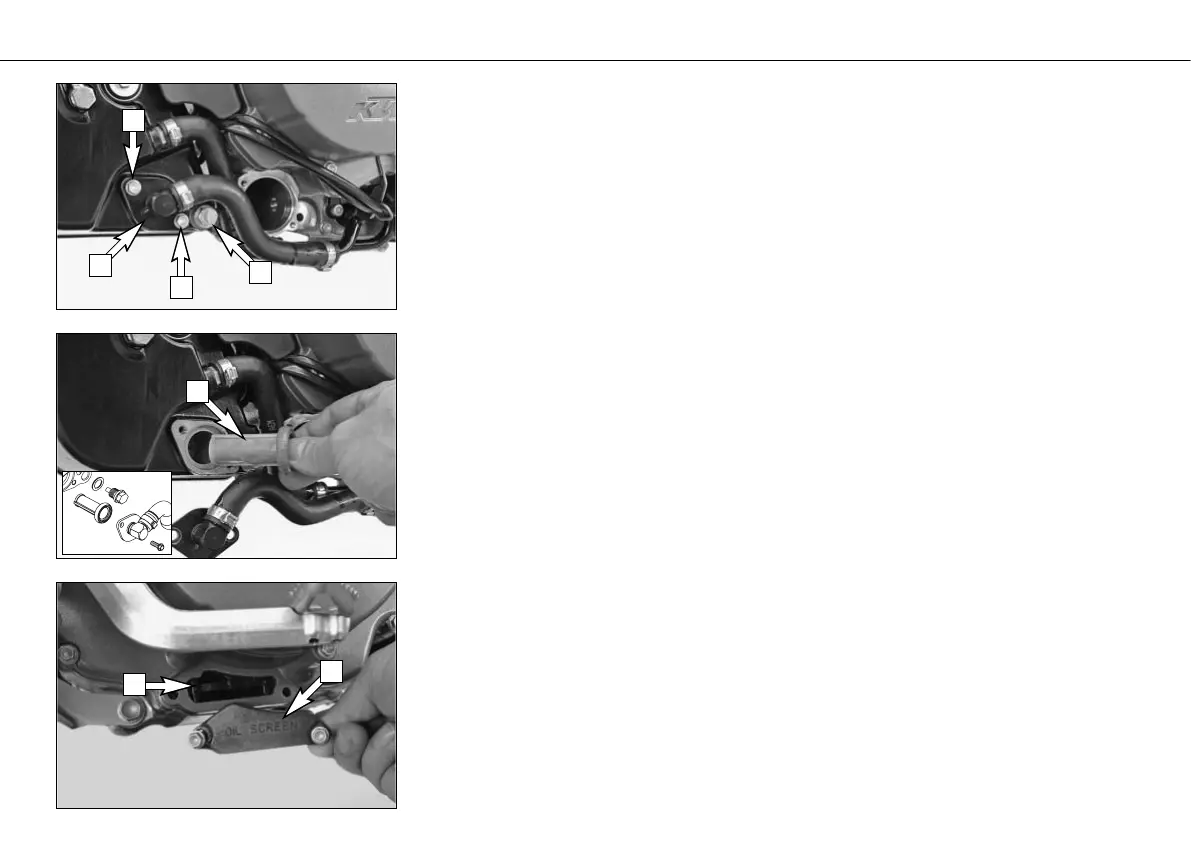

Remove the drain plug [1] from the oil tank and allow the oil to drain into a vessel. Remove
the screws [2] and tilt the connector [3] to the side.
Carefully pull the oil screen [4] out of the oil tank.
Thoroughly clean the drain plugs, the cover and both oil screens. Clean all rubber seal rings
and check for damage. Replace if necessary.
Mount the oil drain plug on the engine with a new seal ring and tighten to 20 Nm.
Slide the oil screen [5] into the guides in the oil pump housing with the TOP mark facing
up. Make sure the form ring is in place and mount the cap [6]. Tighten the screws to
10 Nm.
MAINTENANCE WORK ON CHASSIS AND ENGINE »
