16 KTM POWERPACK, BATTERY CHARGER 96
16.1 Removing the KTM PowerPack
Warning
Risk of injury There is a risk of electric shock when working on high-voltage components.
Work on high-voltage components require special training, qualifications and tools.
– Work which has not been described and explained may only be performed by correspondingly trained KTM specialists.(Your
authorized KTM workshop will be glad to help.)
– Do not open the electric motor or the KTM PowerPack.(Your authorized KTM workshop will be glad to help.)
Warning
Environmental hazard Lithium-ion batteries contain components and elements that are harmful to the environment.
– Never throw a KTM PowerPack into the household trash.
– Dispose of the KTM PowerPack properly and in compliance with the applicable regulations.(Your authorized KTM workshop
will be glad to help.)
Preparatory work
– Deactivate the vehicle. ( p. 37)
– Fold the seat up. ( p. 63)
402145-11
Main work
–

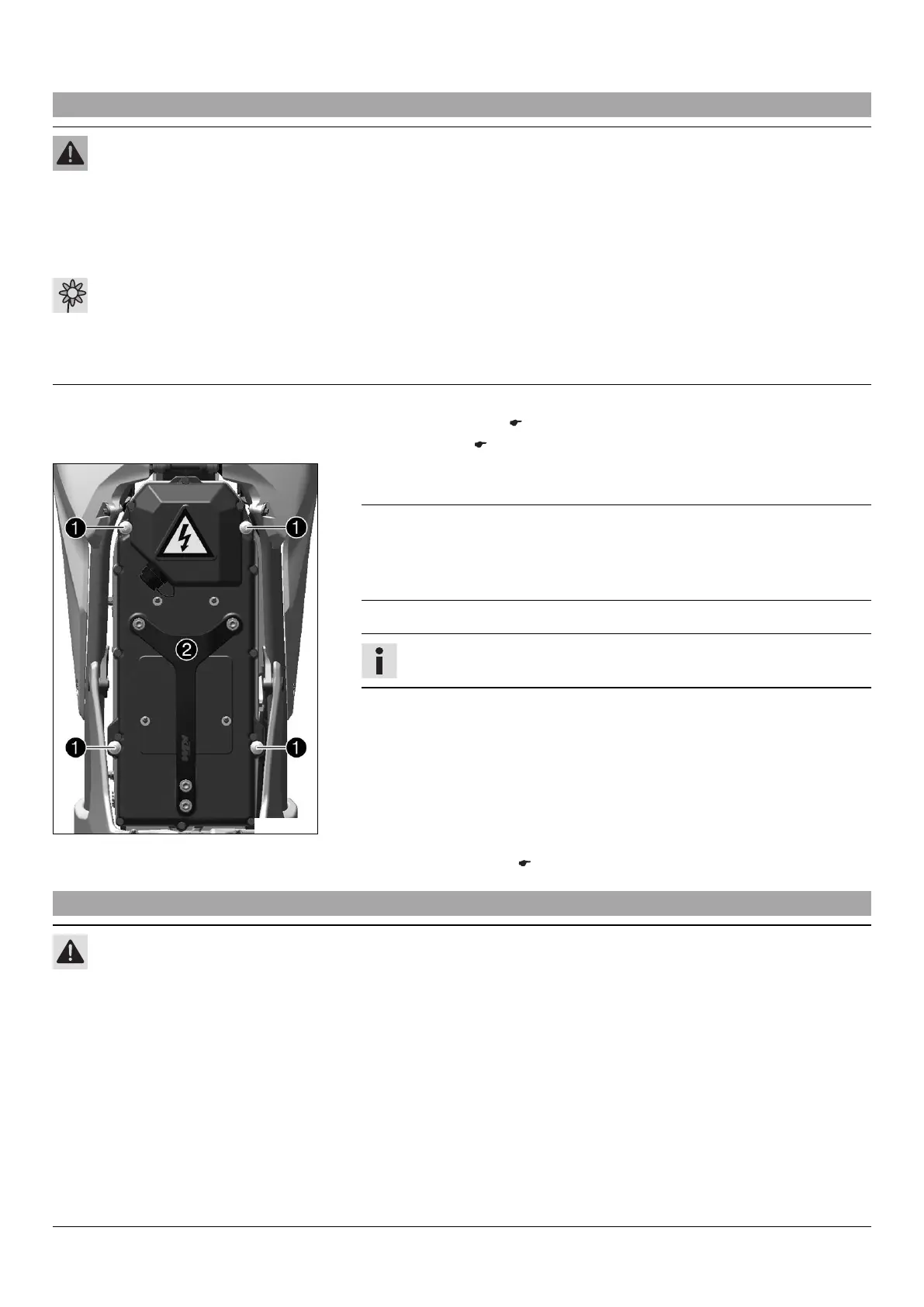

Release screws
.
Note
Material damage Components damaged or destroyed by water or dirt.
– Mount the covering cap if you have removed the KTM PowerPack.
– Place the KTM PowerPack on a clean and dry surface.
–
Remove the KTM PowerPack
.
Info
The KTM PowerPack is very heavy. A second person can help with removal.
Finishing work
– Mount the covering cap. ( p. 64)
16.2 Installing the KTM PowerPack
Caution
Risk of injury The KTM PowerPack is very heavy.
The KTM PowerPack must rest flush on the electric motor after installation.
– Only lift the KTM PowerPack using the carry handle.
– Make sure that nobody is pinched when the KTM PowerPack is removed or installed.
Note
Material damage Components damaged or destroyed by water or dirt.
– Before installing the KTM PowerPack, check that the battery discharge plug on the electric motor and the battery discharge socket
on the KTM PowerPack are clean.
– Check the battery discharge plug form ring.
– Clean the battery discharge plug and the battery discharge socket without using water or compressed air if the battery discharge
plug or the battery discharge socket is dirty.
– After cleaning, spray silicone spray onto the battery discharge plug form ring.
