16.2 Installing the 12-V battery
V00623-11
Main work

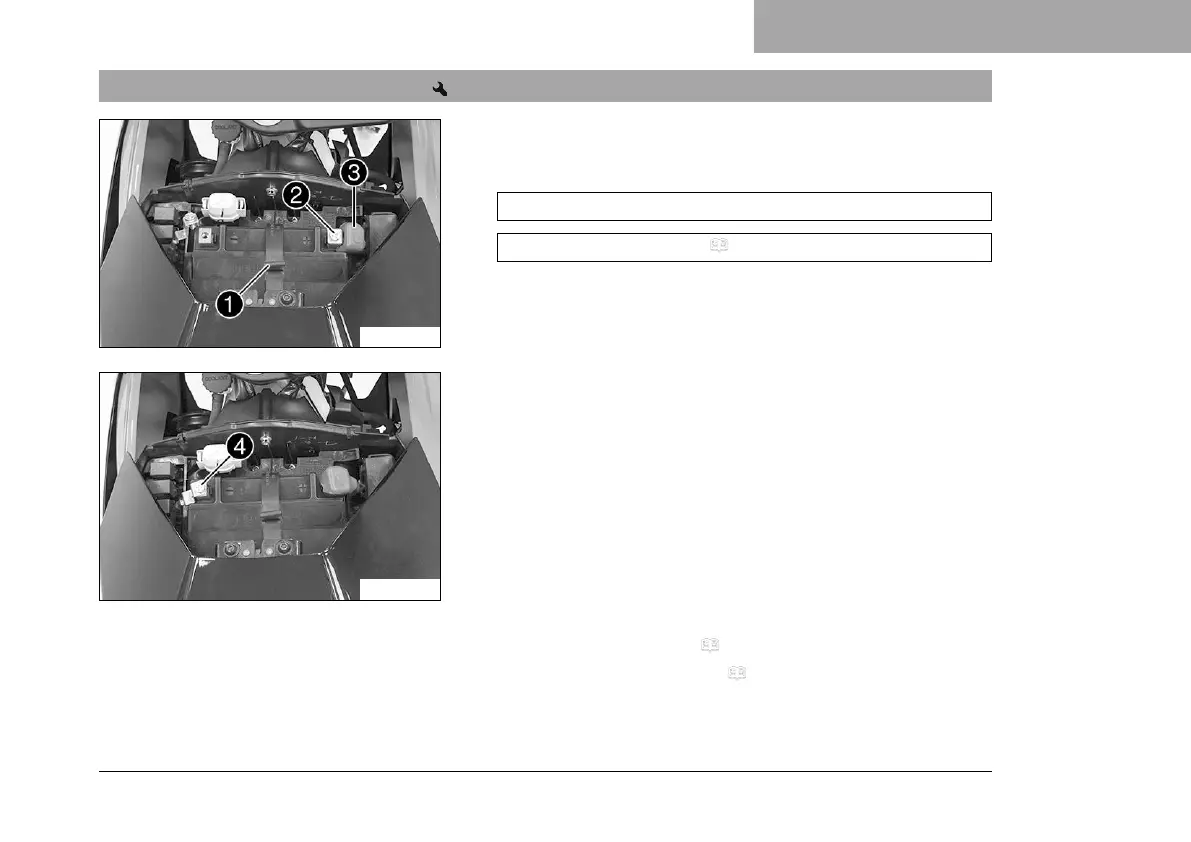

– Position the 12-V battery in the battery compartment.
Guideline
The terminals of the battery must face upwards.
12-V battery (ETZ-9-BS) ( p. 238)
–
Attach rubber strap
1
.
–
Position positive cable
2
and mount and tighten the screw.
–
Position positive terminal cover
3
.
V00620-11
–
Position negative cable
4
and mount and tighten the screw.
Finishing work
– Mount the battery cover. ( p. 130)
–
Mount the front rider's seat. ( p. 117)
