KTM Super Adventure 2016 User Manual

2 SETUP 3

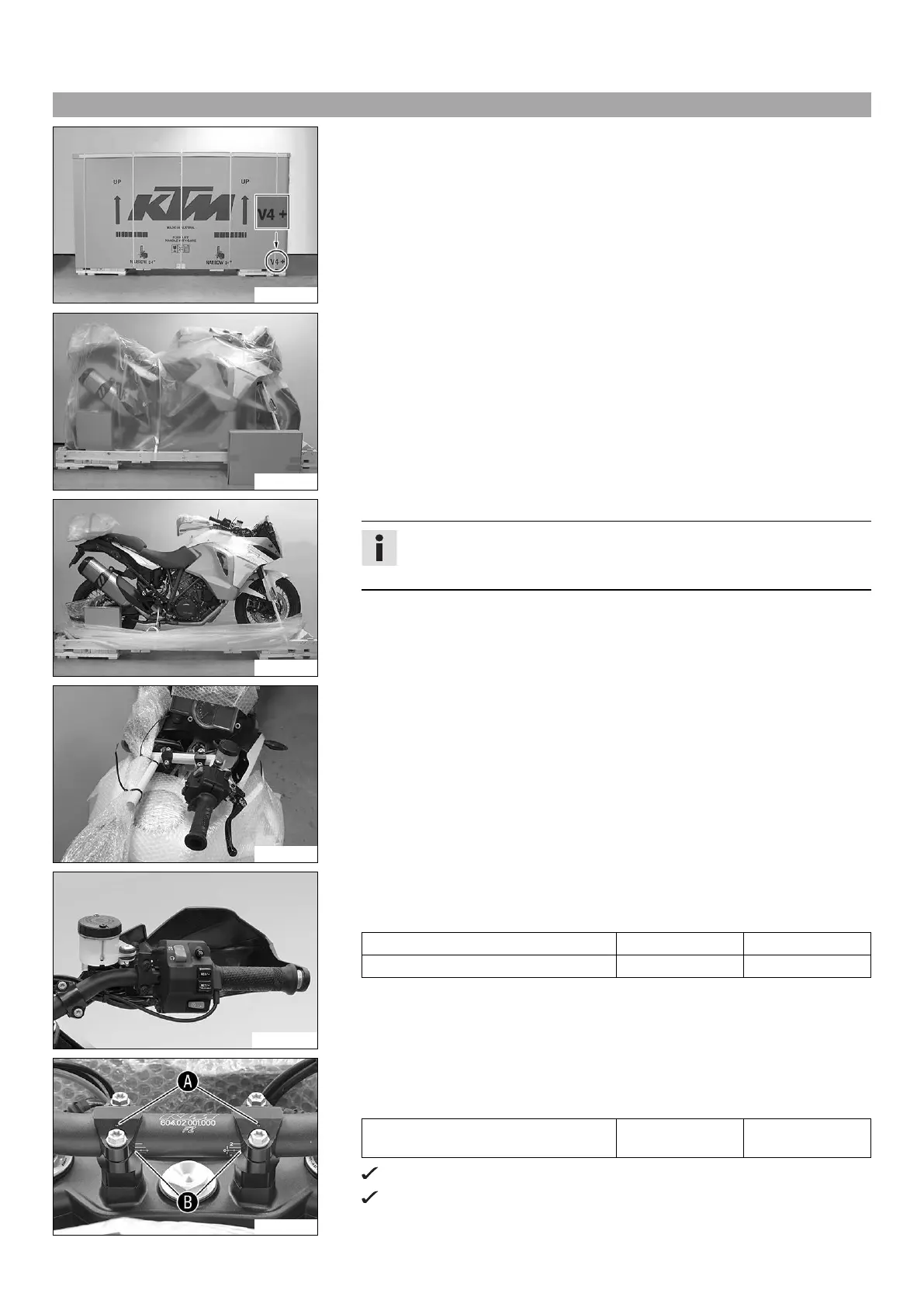

2.1 Unpacking and setting up the vehicle
S00694-10
– Remove the straps and box.
S00695-10
– Remove the adhesive tape in the upper area of the motorcycle.
S00696-10
– Roll down the film at the sides.
Info
To avoid damaging the motorcycle during unpacking, leave the other films
on the vehicle until you have finished work on the vehicle.
– Remove the separate enclosure and unpack it. Check the separate enclosure for
completeness.
– Check the vehicle for transport damage.
S00697-10
– Remove the controls from the transport holder.
– Remove the screws and handlebar clamps.
– Remove the transport holder.
M00791-01
– Remove the right hand guard.
– Position the controls on the right half of the handlebar. Tighten the screws.
Guideline
Remaining screws, chassis M5 5 Nm (3.7 lbf ft)
Remaining chassis screws M6 10 Nm (7.4 lbf ft)
– Mount the right hand guard.
S00698-10
– Position the handlebar.
– Position the handlebar clamps. Tighten the screws evenly.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
Markings

face backwards.
Markings

of the handlebar scale are located centrally between the handle-
bar clamps.

KTM Super Adventure 2016 Specifications

General

Displacement	1195 cc
Power	160 hp
Transmission	6-speed
Weight	238 kg
Fuel System	Electronic fuel injection
ABS	Bosch 9ME Combined ABS
Wheelbase	1560 mm
Torque	125 Nm
Fuel Capacity	30 l
Seat Height	860 mm
Front Suspension	WP USD Ø 48 mm
Front Brakes	Twin 320 mm discs
Rear Brakes	Single 267 mm disc
Front Brake	2 x Brembo four-piston radial calipers, 320 mm discs
Rear Brake	Brembo two-piston caliper
Traction Control	Motorcycle Traction Control (MTC)
Engine Type	Liquid-cooled, 4-stroke, V-twin
