Kubota B1620 Workshop Manual

HYDRAULIC SYSTEM
B1220, B1620, B1820, WSM
8-S8
(EU)
(3) Lift Arm

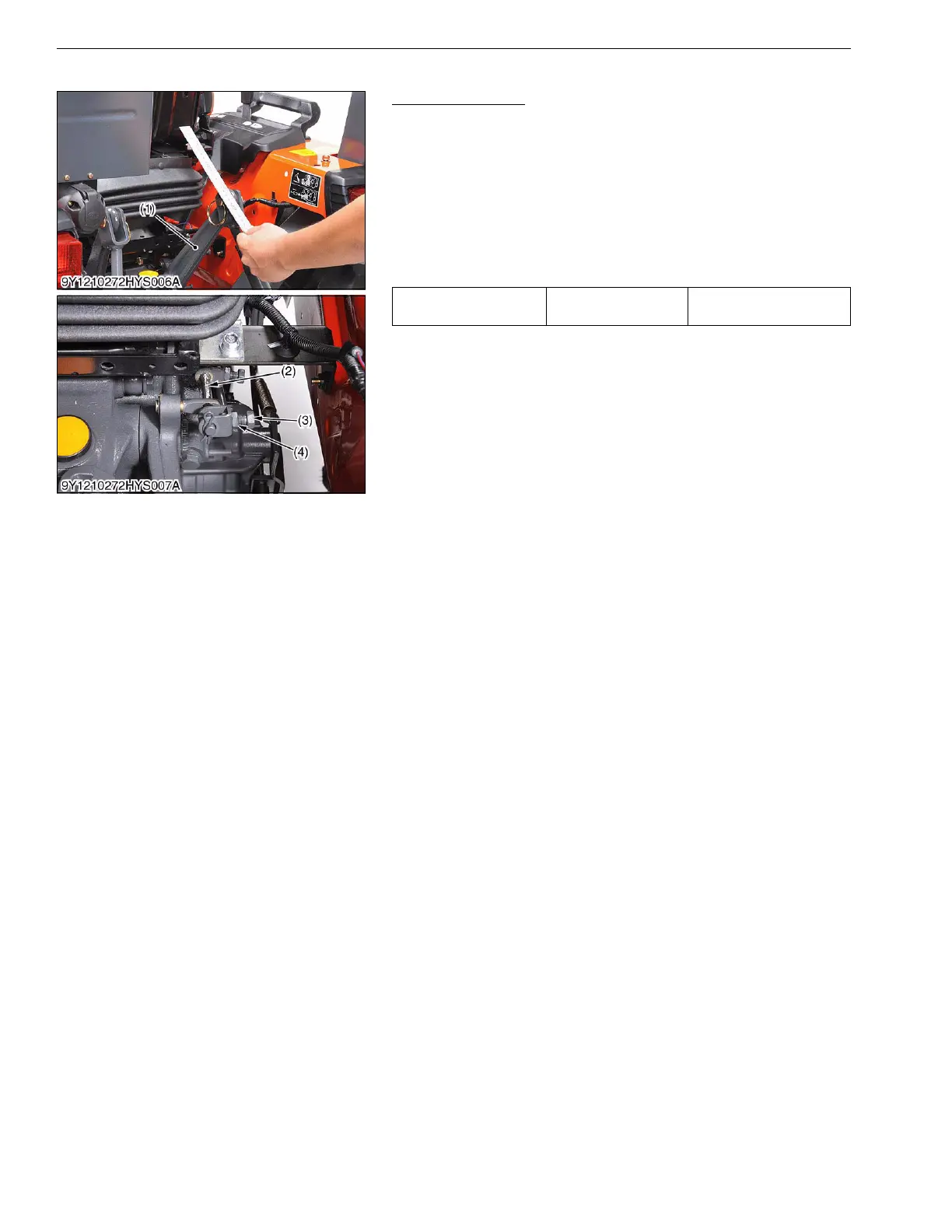

Lift Arm Free Play
1. Set the 3-point hitch to the lowest position.
2. Start the engine, and set at the idling speed.
3. Move the hydraulic control lever to lift position until the lift arm
moves to the uppermost position and relief valve opens.
4. Move the lift arm (1) to the upper end by hand and measure the
free play.
5. If the measurement is not within the factory specifications,
adjust the free play by changing the set position of feedback rod
(2) with bolt (3) and lock nut (4).
9Y1210272HYS0008US0
Lift arm free play Factory specification
5.0 to 15 mm
0.20 to 0.59 in.
(1) Lift Arm
(2) Feedback Rod
(3) Bolt
(4) Lock Nut
KiSC issued 07, 2011 A
