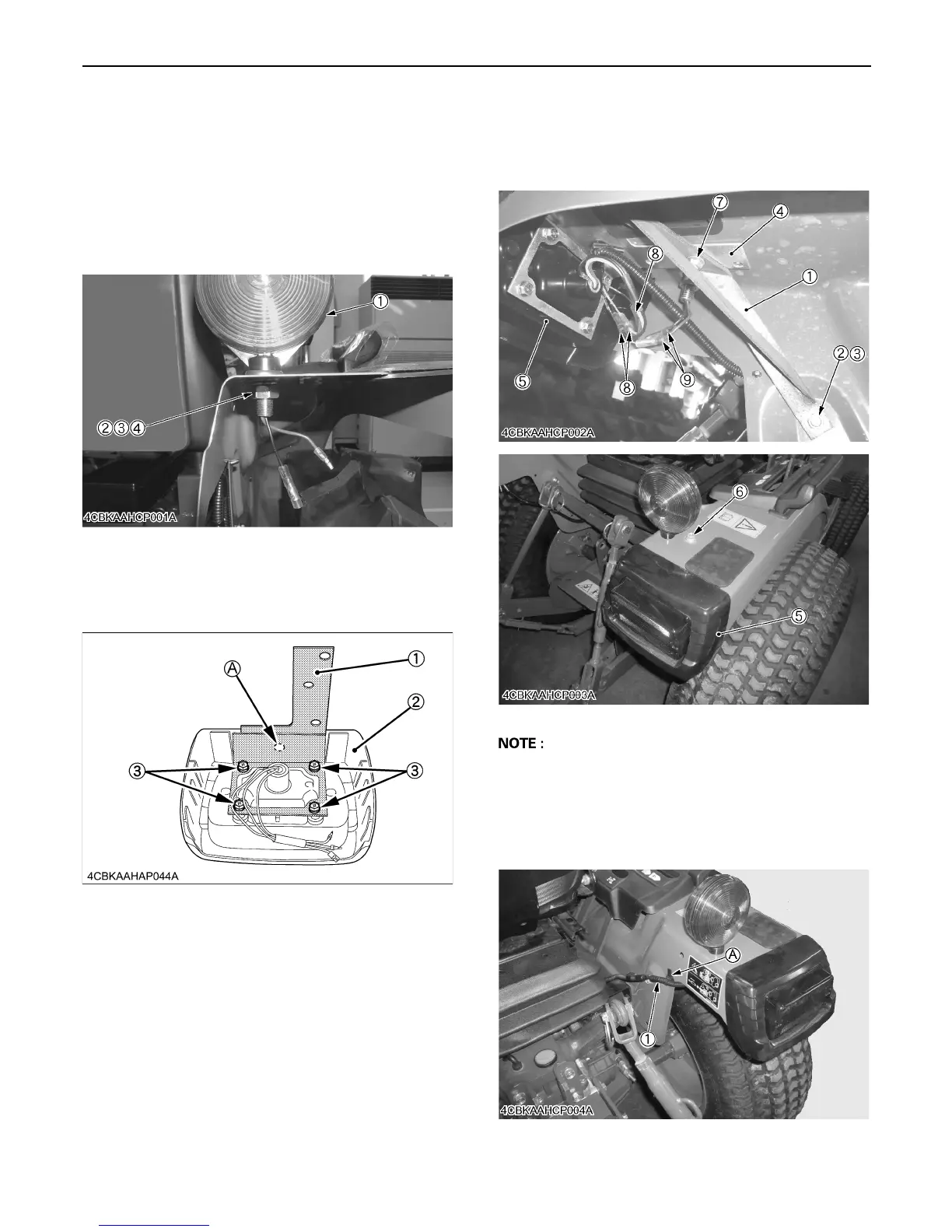

9ASSEMBLY INSTRUCTIONS
BAttaching the Tail Light, Rear Fender Stay
and the Turn Signal/Hazard Light
[B1820ACE]
1. Insert the rear turn signal / hazard light (1) into the hole
of the fender.
Secure the light with plain washer (2), spring washer
(3) and nut (4).
2. Secure the right-hand and left-hand tail cover stays (1)
to their respective tail lights (2) with the four tapping
screws (3).
Attach the cord clamp of wire harness to the hole (A).
3. Attach the rear fender stay (1) to the fender (LH and
RH) with the M8 x 20 bolt (2) and M8 flange nut (3).
4. Align the hole of the tail cover stay (4) with that of the
fender and rear fender stay.
Secure the tail cover (5) tightening the M8 x 20 bolt (6)
and M8 flange nut (7).
5. Connect the tail light cable to the wire harness cable
with the 1-P coupler (8).
6. Connect the rear turn signal / hazard light cables to the
wire harness cables with the 1-P coupler (3).
A Make sure of the cable combination of the tail light and
side turn signal / hazard light cables and their partner
couplers. Confirm the color of the couplers.
7. Insert the cord clamp of wire harness (1) into the hole
(A) of the fender (RH and LH).
To Next Page
